LD Dual Parameter

Two-channel LD controllers combine in a single unit the measurement and control of two parameters, in addition to temperature, and drive two or more dosing pumps, solenoid valves or other equipment according to the set points.

  • Two parameters plus temperature
  • pH, chlorine, Redox, conductivity and others
  • Two proportional or PID pumps
  • Remote control via Ethernet, Wi-Fi, 4G, Modbus
LDpHCL system pre-assembled on a panel with two dosing pumps, filter and probe holder
LDpHCLpre-assembled

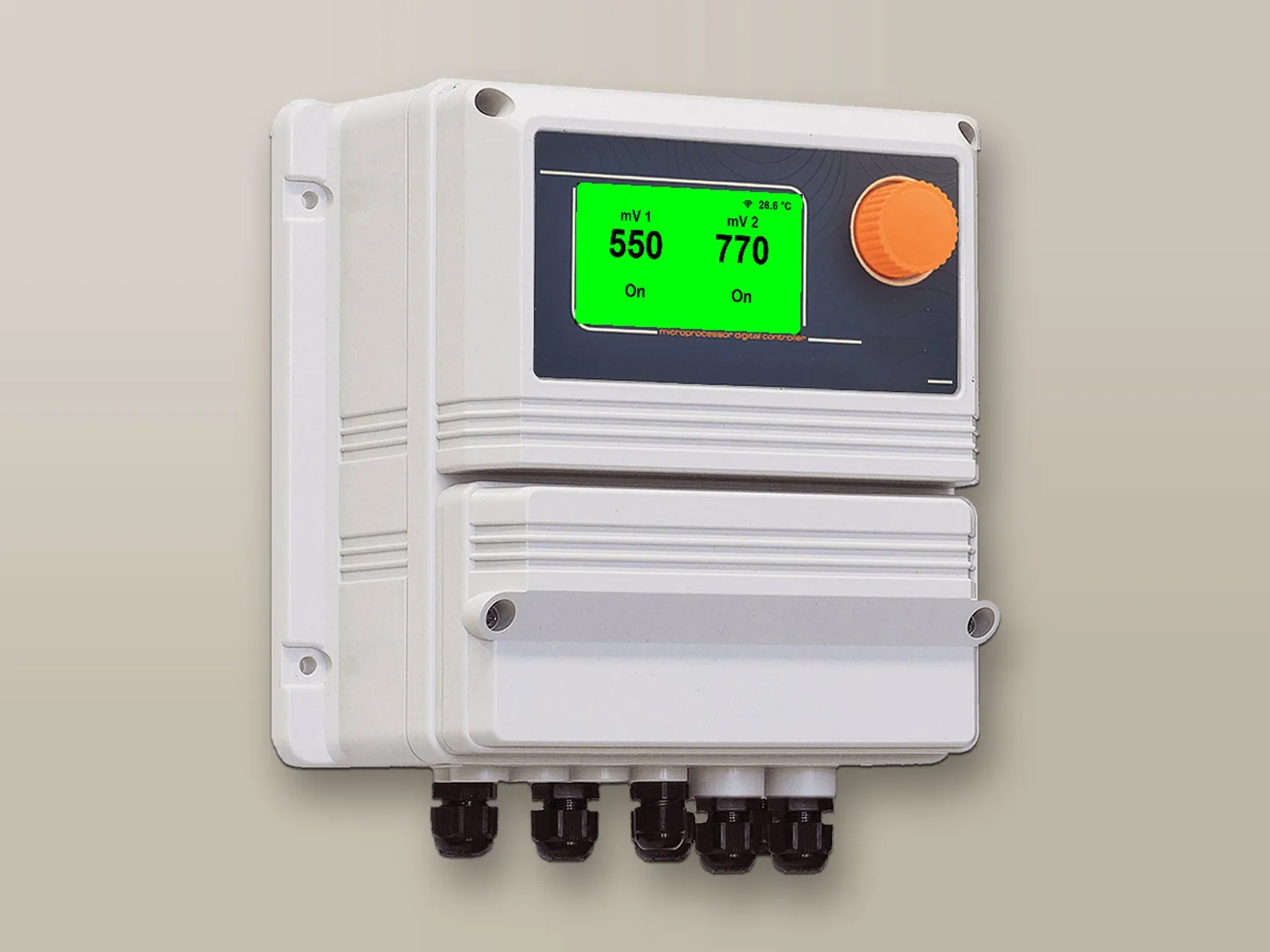

Two-channel LD controller with two Redox readings
Controller
2Parameters per controller
15Parameters to choose from
2Dosing pumps
34/20 mA outputs
Applications

Applications

Drinking water

Raw water from wells and springs, private and from public water supply networks.

Insight: well water →

Domestic water circuits

Domestic water circuits.

Industry

Industrial process water.

Wastewater

Municipal and industrial wastewater.

Parameters

Two parameters of your choice

Free chlorine, total chlorine, combined chlorine, chlorine dioxide, chlorites, hydrogen peroxide, peracetic acid, bromine, ozone, Redox (ORP), pH, conductivity, turbidity, dissolved oxygen and tracers. All controllers also measure temperature.

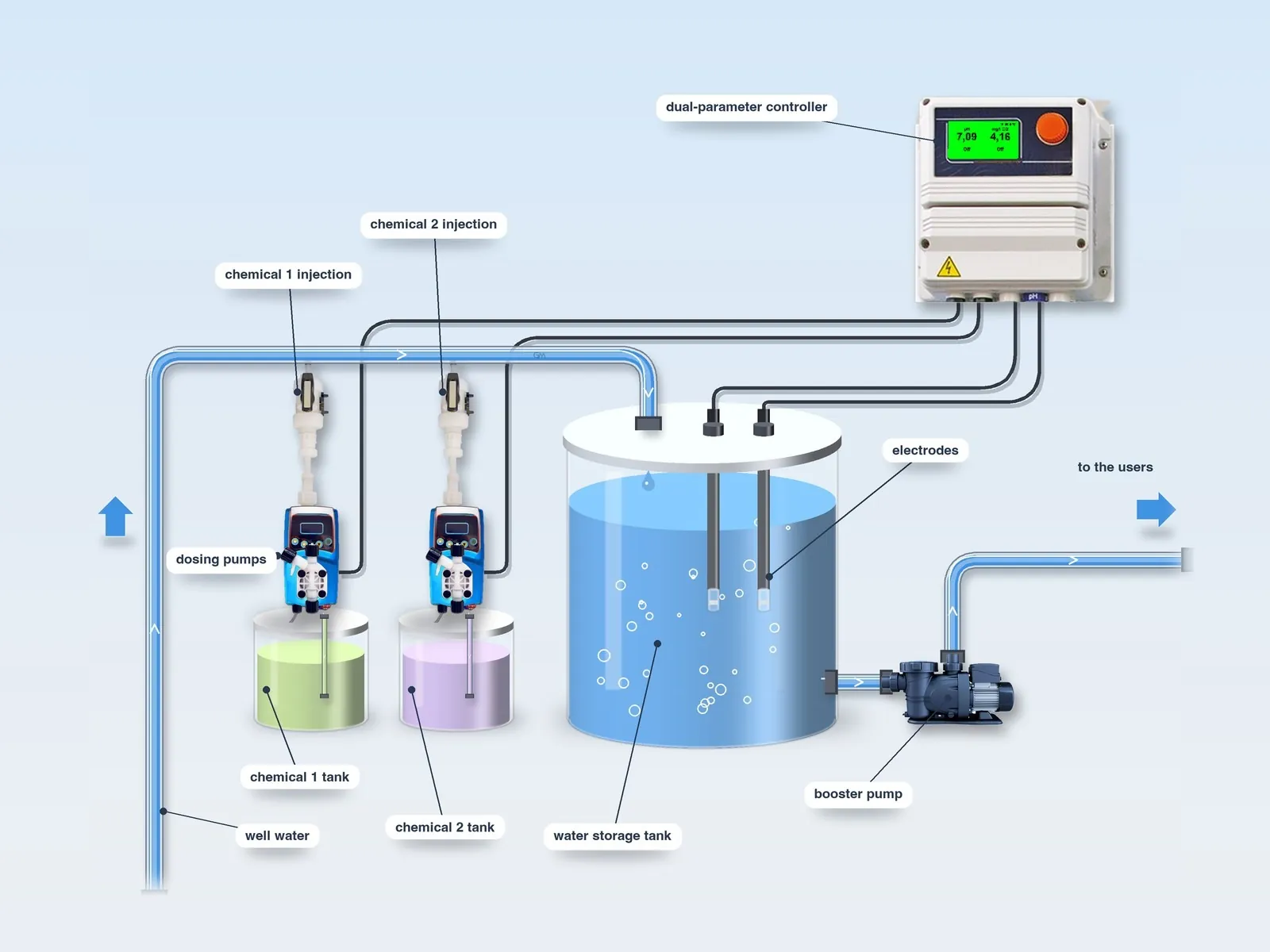

Layout of a dual-parameter system on a water storage tank: controller, electrodes, two injection points, two product tanks and booster pump

Probes and electrodes

A dedicated probe, optimised for the specific measurement, is available for each parameter, and can be installed in a flow-through probe holder, in-line or by immersion.

Electrodes and probes →

Two independent controls

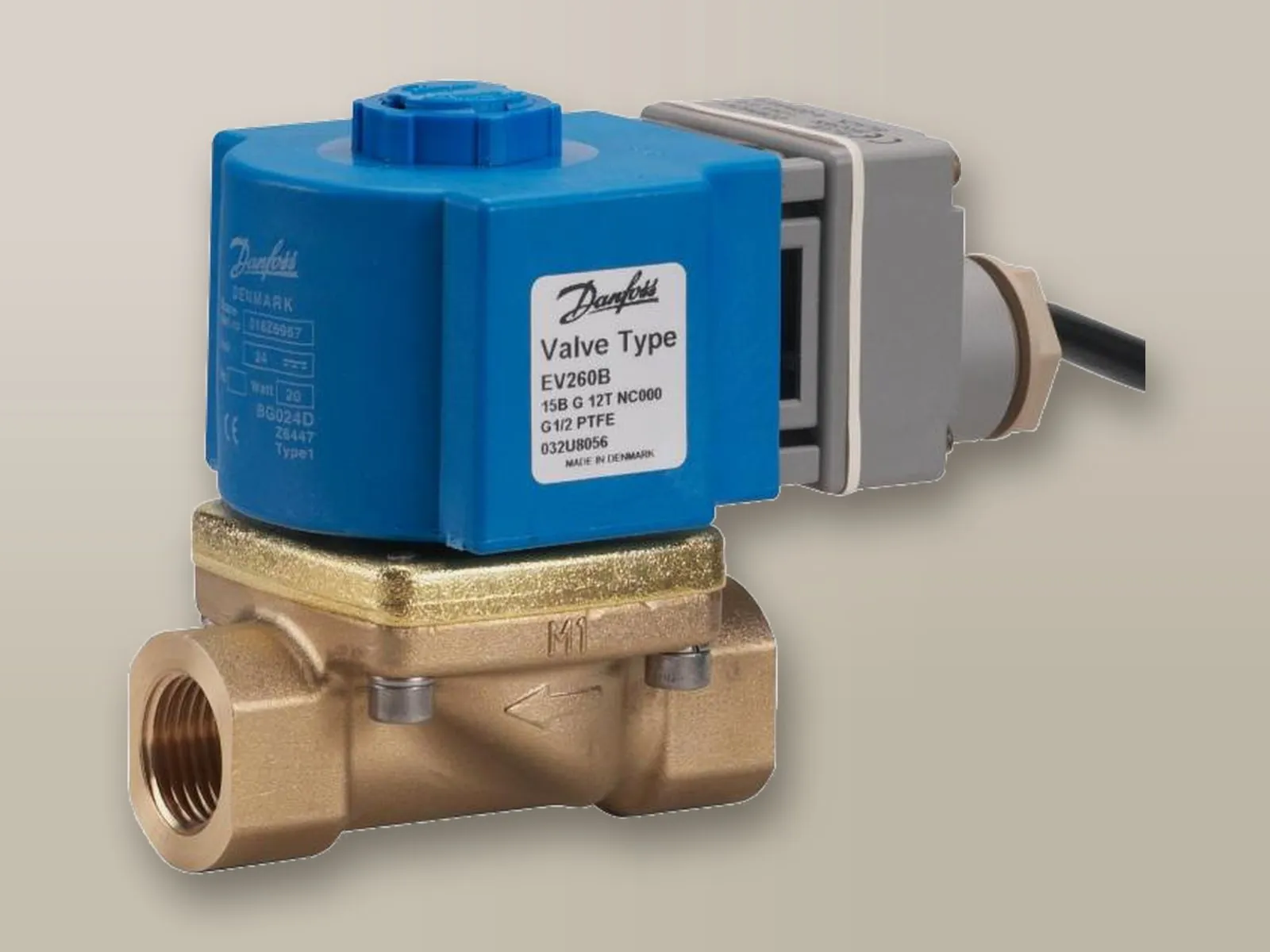

The controller drives dosing pumps, solenoid valves or other equipment according to the measured values and the set points of each channel.

5 models

Main models

The most requested combinations. Dedicated versions are available for swimming pools, described in the relevant section.

LDpHCL system on a panel
pH · amperometric cell

LDpHCL

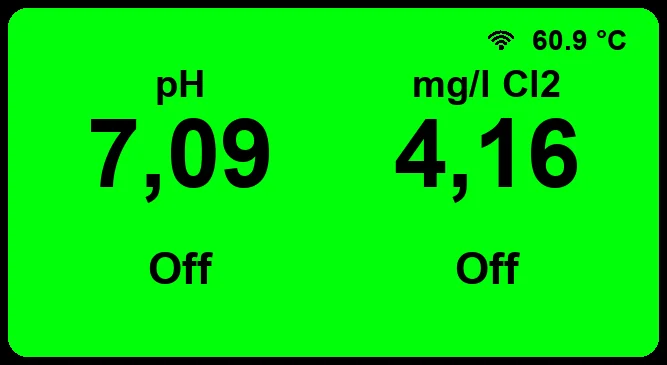

Control of pH (proportional dosing above the set point) and of a parameter measured with an amperometric cell (below the set point): with the SCL closed cell, free chlorine, total chlorine, chlorine dioxide, bromine, hydrogen peroxide, peracetic acid, ozone or chlorites; with the ECL open cell, free chlorine in swimming pool water.

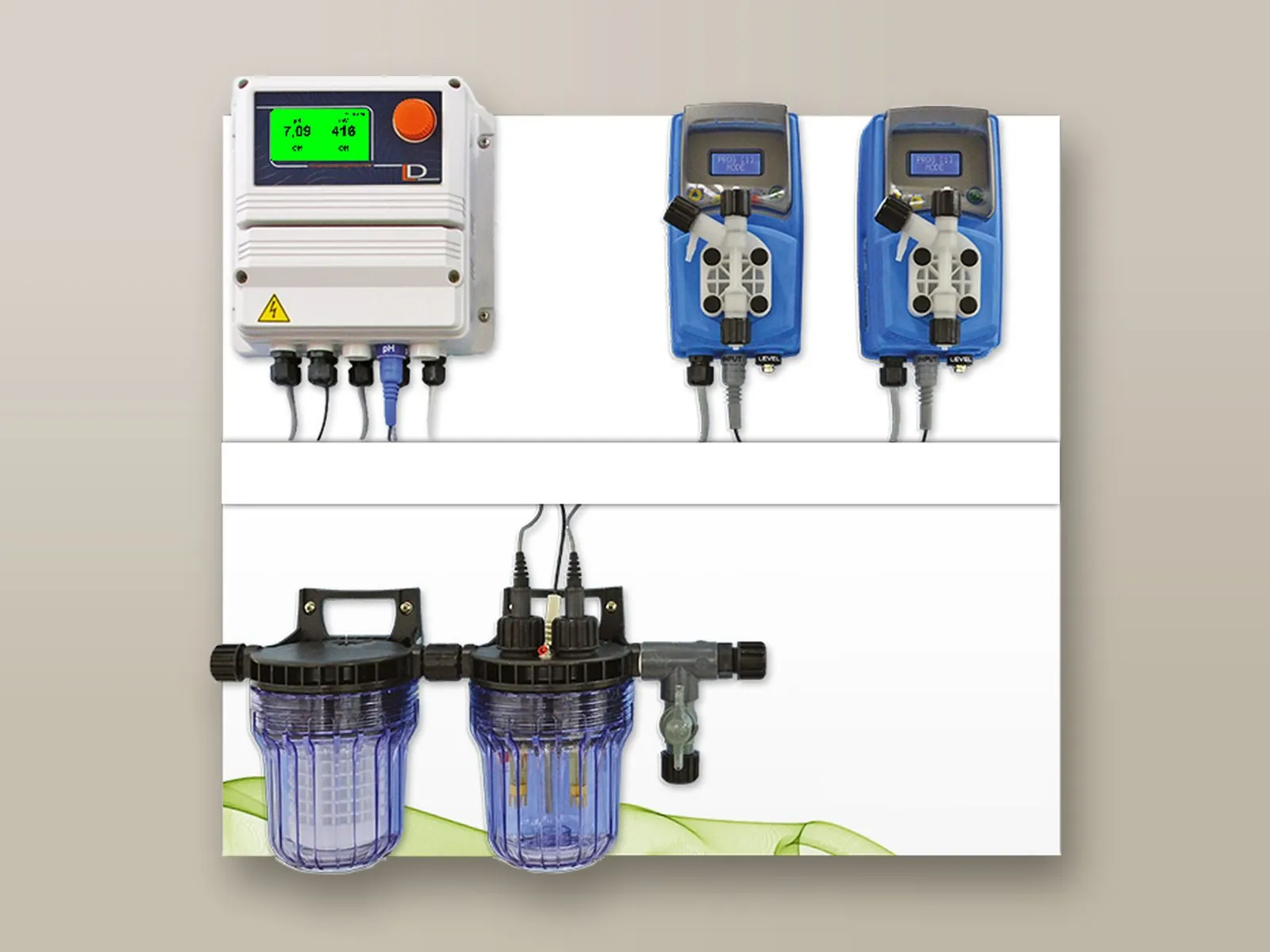

LDpHRh system on a panel
pH · Redox

LDpHRh

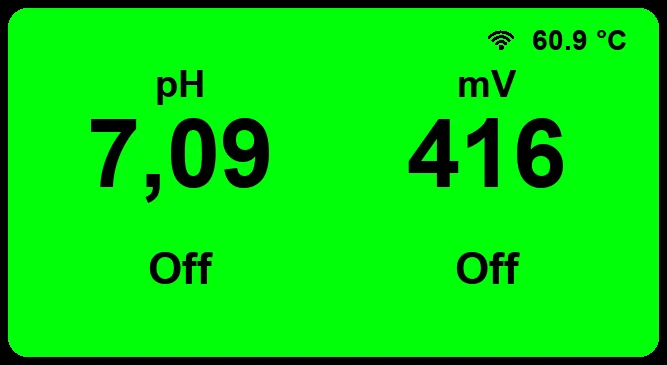

Control of pH and Redox potential: at intermediate values the controller progressively reduces the pump strokes, until it stops the pump at the set point. pH control has priority over Redox.

LDpHCD system on a panel
pH · conductivity

LDpHCD

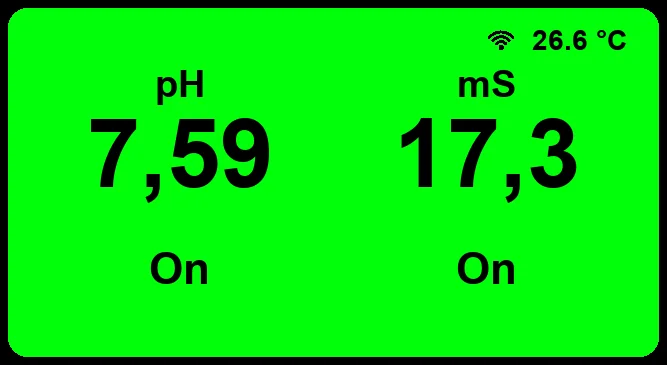

Proportional control of pH and ON/OFF control of conductivity, with conductive or inductive probes (0.3 – 300 mS): principle and correct position of the probe on the LDsCD page.

LDRhRh system pre-assembled on a panel with two dosing pumps and filters
Redox · Redox

LDRhRh

Two independent Redox (ORP) channels, each with a dedicated pump and its own proportional control.

Two-channel LD system on a panel with electrode and amperometric cell in the probe holder
Redox · amperometric cell

LDRhCL

Redox electrode (resolution 1 mV) and amperometric cell, either SCL closed (free chlorine, total chlorine, chlorine dioxide, bromine, hydrogen peroxide, peracetic acid, ozone or chlorites) or ECL open (free chlorine in swimming pool water), in the same flow-through probe holder, with temperature probe and flow sensor. Up to 3 proportional pumps, 2 digital outputs from set point, 3 levels and audible and visual alarm.

Technical data

Combinations and technical data

Available combinations

First channelSecond channelModel
pHFree chlorineLDpHCL
pHRedox (ORP)LDpHRh
pHConductivityLDpHCD
pHTurbidityLDpHETORB
pHDissolved oxygenLDpHDO
pHpHLDpHpH

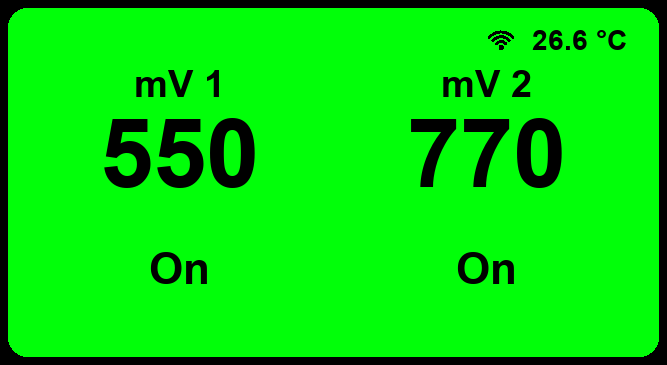

Redox (ORP)Redox (ORP)LDRhRh
Redox (ORP)Peracetic acidLDRhCL
Redox (ORP)Free chlorineLDRhCL
Free chlorineTotal chlorineLDCLCL
Chlorine dioxideChloritesLDCLCL

The model code combines the two parameters: pH, Rh (Redox), CL (any SCL amperometric cell: chlorine, chlorine dioxide, chlorites, peroxide, peracetic acid…), CD, ETORB, DO. Combined chlorine is obtained by difference from the measurement of free chlorine and total chlorine. For the ranges and resolutions of each parameter, refer to the pages of the single-channel controllers: LDsCL, LDspH, LDsRh, LDsCD.

Probe data sheets

pH electrodes
ElectrodePressureConnectionBodyMinimum conductivityJunctionTemperatureCableDiameterNotes
EPHS7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)0.8 m12 mm–
EPHM7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)4.5 m12 mm–
EPHL7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)15 m12 mm–
EPHSN67 bar (3.5 bar)SN6 with PG13.5 threadEpoxy100 µS–70 °C (80 °C)1 – 100 m12 mm–
EPHMD/1007 barBNCEpoxy100 µSDouble100 °C4.5 m12 mm–
EPHM/D7 bar (3.5 bar)BNCEpoxy100 µSDouble70 °C (80 °C)4.5 m12 mm–
EPHM/D/SN67 bar (3.5 bar)SN6 with PG13.5 threadEpoxy100 µSDouble70 °C (80 °C)1 – 100 m12 mm–
EPHMD/LI7 bar (3.5 bar)SN6 with PG13.5 threadEpoxy3 µSDouble70 °C (80 °C)1 – 100 m12 mmFor low-conductivity water
EPHSC7 bar (3.5 bar)BNCEpoxy100 µSDouble70 °C (80 °C)4.5 m12 mmSelf-cleaning
EPHSC/SN67 bar (3.5 bar)SN6 with PG13.5 threadEpoxy100 µSDouble70 °C (80 °C)1 – 100 m12 mmSelf-cleaning
EPHM/HF7 bar (3.5 bar)BNCEpoxy100 µSDouble70 °C (80 °C)4.5 m12 mmResistant to 1% hydrofluoric acid
EPHSN6 GK10 barSN6Glass150 µS–−5 / 135 °C1 – 100 m12 mmHigh temperature

All models: combination electrode, range 0 – 14 pH, resolution 0.01.

Redox electrodes
ElectrodeRangePressureConnectionBodyMinimum conductivityJunctionTemperatureCableDiameterNotes
ERhS± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)0.8 m12 mm–
ERhM± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)4.5 m12 mm–
ERhL± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)15 m12 mm–
ERhHLB SN6± 1,500 mV6 barSN6 with PG13.5 threadGlass100 µS–80 °C10 m12 mmHigh linearity and sensitivity, for low chlorine concentrations
ERhSN6± 1,000 mV7 barSN6 with PG13.5 threadEpoxy100 µS–100 °C1 – 100 m12 mm–
ERhMD/100± 1,000 mV7 barBNCEpoxy100 µSDouble100 °C4.5 m12 mm–
ERhM/D± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µSDouble70 °C (80 °C)4.5 m12 mm–
ERhSC± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µSDouble70 °C (80 °C)4.5 m12 mmSelf-cleaning
ERhSC/SN6± 1,000 mV7 bar (3.5 bar)SN6 with PG13.5 threadEpoxy100 µSDouble70 °C (80 °C)1 – 100 m12 mmSelf-cleaning

All models: combination electrode, resolution 1 mV.

Conductive probes – ECDC

PVDF body, graphite electrodes.

ModelMountingConnectionRangeK factorTemperature compensation
ECDC/1In-line / by-passR3/4"0 – 20 mS1–
ECDCC/1In-line / by-passR3/4"0 – 20 mS1NTC 10K
ECDCCPT/1In-line / by-passR3/4"0 – 20 mS1PT100
ECDC/10In-line / by-passR3/4"0 – 200 mS10–
ECDCC/10In-line / by-passR3/4"0 – 200 mS10NTC 10K
ECDCCPT/10In-line / by-passR3/4"0 – 200 mS10PT100
ECDCIM/1ImmersionG1/2"0 – 20 mS1–
ECDCCIM/1ImmersionG1/2"0 – 20 mS1NTC 10K
ECDCCIMPT/1ImmersionG1/2"0 – 20 mS1PT100
ECDCIM/10ImmersionG1/2"0 – 200 mS10–
ECDCCIM/10ImmersionG1/2"0 – 200 mS10NTC 10K
ECDCCIMPT/10ImmersionG1/2"0 – 200 mS10PT100

Operating temperature 1 – 60 °C (100 °C at 2 bar), operating pressure 7 bar (2 bar at 100 °C).

Conductive probes – ECDI

PVDF body, stainless steel electrodes.

ModelMountingConnectionRangeK factorTemperature compensation
ECDI/1In-line / by-passR3/4"0 – 5 mS1–
ECDIC/1In-line / by-passR3/4"0 – 5 mS1NTC 10K
ECDICPT/1In-line / by-passR3/4"0 – 5 mS1PT100
ECDI/01In-line / by-passR3/4"0 – 200 µS0.1–
ECDIC/01In-line / by-passR3/4"0 – 200 µS0.1NTC 10K
ECDICPT/01In-line / by-passR3/4"0 – 200 µS0.1PT100
ECDIIM/1ImmersionG1/2"0 – 5 mS1–
ECDICIM/1ImmersionG1/2"0 – 5 mS1NTC 10K
ECDICPTIM/1ImmersionG1/2"0 – 5 mS1PT100
ECDIIM/01ImmersionG1/2"0 – 200 µS0.1–
ECDIIM/02ImmersionG1/2"0 – 500 µS0.2–
ECDICIM/01ImmersionG1/2"0 – 200 µS0.1NTC 10K
ECDICPTIM/01ImmersionG1/2"0 – 200 µS0.1PT100

Operating temperature 1 – 60 °C (100 °C at 2 bar), operating pressure 7 bar (2 bar at 100 °C).

Conductive probes – ECDHL

Epoxy body, platinum electrodes, diameter 12 mm.

ModelMountingRangeK factorTemperature compensation
ECDHL/1In-line / by-pass0.2 – 20 mS1–
ECDHLC/1In-line / by-pass0.2 – 20 mS1NTC 10K
ECDHLCPT/1In-line / by-pass0.2 – 20 mS1PT100
ECDHL/01In-line / by-pass0 – 200 µS0.1–
ECDHLC/01In-line / by-pass0 – 200 µS0.1NTC 10K
ECDHLCPT/01In-line / by-pass0 – 200 µS0.1PT100
ECDHL/10In-line / by-pass20 – 200 mS10–
ECDHLC/10In-line / by-pass20 – 200 mS10NTC 10K
ECDHLCPT/10In-line / by-pass20 – 200 mS10PT100

Operating temperature 1 – 70 °C, operating pressure 7 bar.

Conductive probes – EICDC

Stainless steel body and electrodes, R3/4" connection, in-line or by-pass mounting.

ModelRangeK factorTemperature compensationOperating temperature
EICDC/10 – 20 mS1NTC 10K1 – 130 °C
EICDCPT/10 – 20 mS1PT1001 – 130 °C
EICDC/010 – 200 µS0.1NTC 10K1 – 130 °C
EICDCPT/010 – 200 µS0.1PT1001 – 130 °C
EICDC/0010 – 20 µS0.01NTC 10K1 – 130 °C
EICDCPT/0010 – 20 µS0.01PT1001 – 130 °C
EICDCHPT/10 – 20 mS1PT1001 – 200 °C
EICDCHPT/010 – 200 µS0.1PT1001 – 200 °C
EICDCHPT/0010 – 20 µS0.01PT1001 – 200 °C

Operating pressure 15 bar.

Inductive probes
ECDINDPTECDSINDPT
Measuring range0.3 – 3 mS
0.3 – 30 mS
0.3 – 300 mS
0.3 – 10 mS
Measuring systemInductiveInductive
BodyPEEKPEEK
MountingIn-line / by-pass / immersionIn-line / by-pass / immersion
Temperature compensationPT100PT100
Operating temperature1 – 85 °C (100 °C for temporary measurement)1 – 85 °C (100 °C for temporary measurement)
Operating pressure8 bar8 bar
Closed (membrane) amperometric cells – Free chlorine
SCL3N/0.5SCL3N/2SCL3N/20SCL18/0.5SCL18/2SCL18/20SCL3S/20
Measuring range0 – 0.5 mg/l0 – 2 mg/l0 – 20 mg/l0 – 0.5 mg/l0 – 2 mg/l0 – 20 mg/l0 – 20 mg/l
Resolution0.0010.0010.010.0010.0010.010.01
Free chlorineInorganicInorganicInorganicInorganicInorganicInorganicOrganic and inorganic
WaterFreshFreshFreshFreshFreshFreshFresh or salt
Electrodes2223332
Selective membraneYesYesYesNoNoNoYes
Automatic compensationpH and temperaturepH and temperaturepH and temperaturepH and temperaturepH and temperaturepH and temperatureTemperature
Self-cleaning–––YesYesYes–
Operating pH5 – 9.55 – 9.55 – 9.55 – 95 – 95 – 95.5 – 9.5
Operating temperature1 – 40 °C1 – 40 °C1 – 40 °C5 – 70 °C5 – 70 °C5 – 70 °C5 – 45 °C
Operating pressure1 bar1 bar1 bar8 bar8 bar8 bar1 bar
Water flow30 l/h30 l/h30 l/h40 l/h40 l/h40 l/h30 l/h
Closed (membrane) amperometric cells – Chlorine dioxide
SCL2/0.5SCL2/2SCL2/20SCL17/0.5SCL17/2SCL17/20
Measuring range0 – 0.5 mg/l0 – 2 mg/l0 – 20 mg/l0 – 0.5 mg/l0 – 2 mg/l0 – 20 mg/l
Resolution0.0010.0010.010.0010.0010.01
Electrodes222333
Selective membraneYesYesYesNoNoNo
Self-cleaning–––YesYesYes
Operating pH1 – 61 – 61 – 65 – 95 – 95 – 9
Operating temperature1 – 40 °C1 – 40 °C1 – 40 °C5 – 70 °C5 – 70 °C5 – 70 °C
Operating pressure1 bar1 bar1 bar8 bar8 bar8 bar
Water flow30 l/h30 l/h30 l/h40 l/h40 l/h40 l/h

Automatic temperature compensation on all models.

Closed (membrane) amperometric cells – Other oxidants
SCL8/2SCL8/20SBR/20SCL9SCL11/200SCL11/2000SCL10SCT
MeasurementTotal chlorineTotal chlorineBromineHydrogen peroxidePeracetic acidPeracetic acidOzoneChlorites
Measuring range0 – 2 mg/l0 – 20 mg/l0 – 20 mg/l0 – 200 mg/l0 – 200 mg/l0 – 2,000 mg/l0 – 20 mg/l0 – 2 mg/l
Resolution0.0010.010.010.10.110.010.001
Operating pH4 – 124 – 126.5 – 9.51 – 111 – 61 – 62 – 115.5 – 9.5
Operating pressure1 bar1 bar0.5 bar1 bar1 bar1 bar1 bar1 bar

All models: 2 electrodes, selective membrane, automatic temperature compensation, operating temperature 1 – 40 °C, water flow 30 l/h.

ECL open cells
ECL6ECL6/EECL7ECL12ECL12/EECL20ECL21
WaterFreshFreshFreshSeaSeaFreshSea
Flow stabiliserYesYesYesYesYes––
Flow sensor and regulationYesYesYesYesYes––
Probe holder forTemperature, pH, RedoxTemperatureTemperature, pH, Redox (PG13.5)Temperature, pH, RedoxTemperature––

All models: amperometric system, range 0 – 10 mg/l, resolution 0.01, organic and inorganic free chlorine, operating temperature 1 – 40 °C, pressure 0.4 – 5 bar, water flow 40 l/h.

Turbidity probe
ETORB2
Measuring range0/40 NTU – 0/400 NTU – 0/4,000 NTU
Measurement error± 5% of reading
Measuring systemNIR scattered light at 90°, nephelometric principle
BodyPVC
Optical windowSapphire glass
Automatic compensationTemperature
Self-cleaningYes (water jet, max 1 bar)
Operating temperature0 – 40 °C
Operating pressure2 bar
Dissolved oxygen probes
EOLUM
Measuring range0 – 20 mg/l
Resolution0.01
Measuring systemFluorescence
Automatic compensationTemperature and pressure
Operating temperature−5 / +50 °C
Operating pressure10 bar
BodyStainless steel
Installation

Electrode positioning

Electrode positioning is defined according to the characteristics of the installation and of the water to be analysed.

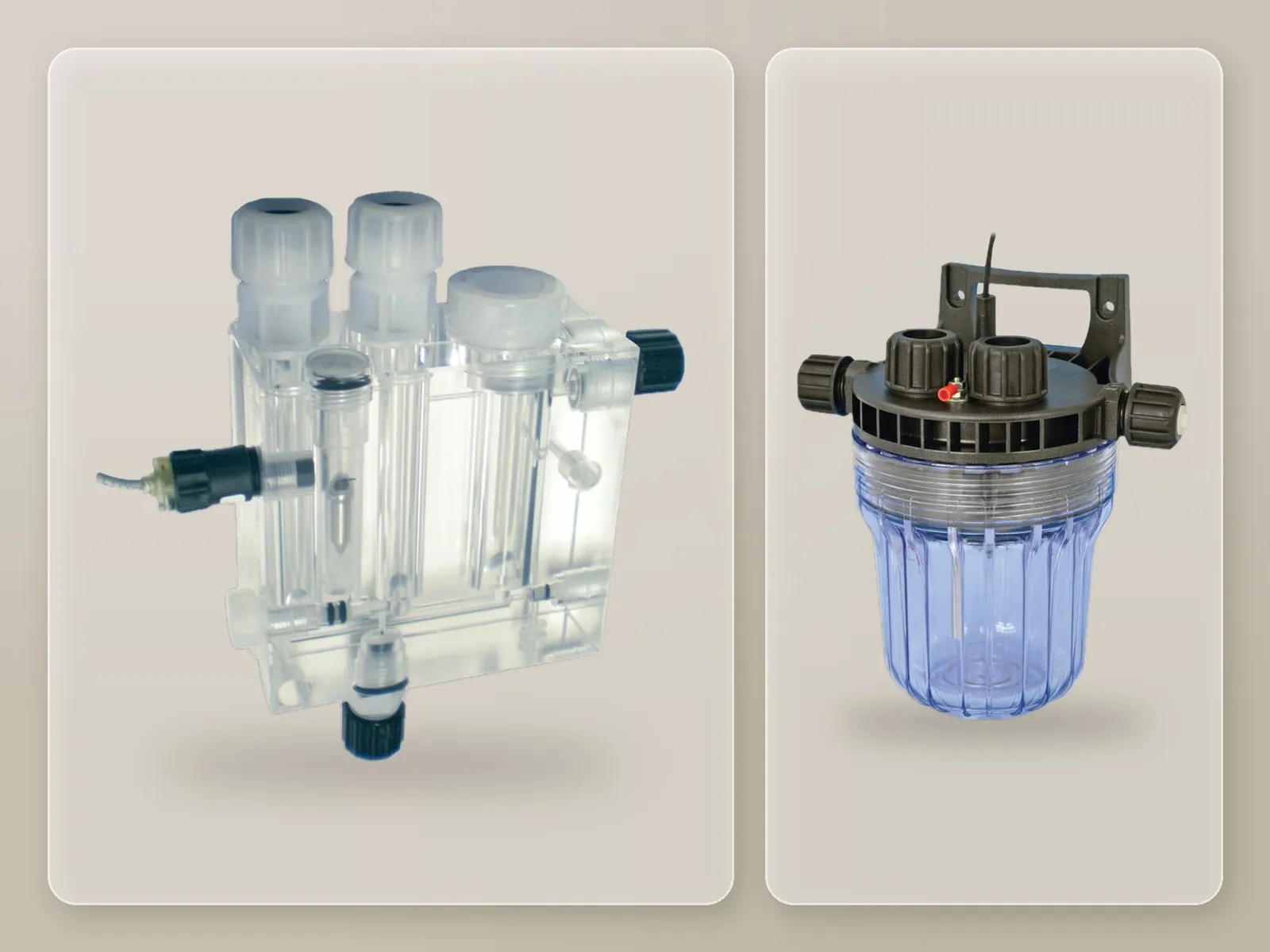

PEF flow-through probe holder and NPED probe holder

In by-pass

The probes are housed in a PEF flow-through probe holder or an NPED probe holder, connected to a water tapping point at the tank outlet and fed with about 30 l/h of sample water. A flow sensor can be added, which stops dosing when there is no flow.

Probe holders →
Immersion probe holder

Immersion

The electrode is immersed directly in the storage tank of the water to be treated, by means of an immersion probe holder.

Probe holders →
Immersion probe holder with cleaning nozzle

Immersion with cleaning

A solution suited to heavily loaded water: at programmed intervals the control panel puts the controller in stand-by and opens a solenoid valve that sends water or air to the nozzle; once cleaning is complete, it closes the valve and, after the electrode repolarisation time has elapsed, resumes dosing.

Probe holders →
In-line probe holder

In-line

The electrodes are inserted directly into the pipe carrying the water to be treated.

Probe holders →
Skid

Versions in a cabinet or on a skid

Controller, pumps, probe holder and accessories are also available pre-assembled in a cabinet or on a skid, tested before delivery.

LDRhCL system for peracetic acid assembled in a cabinet with two dosing pumps

In a cabinet

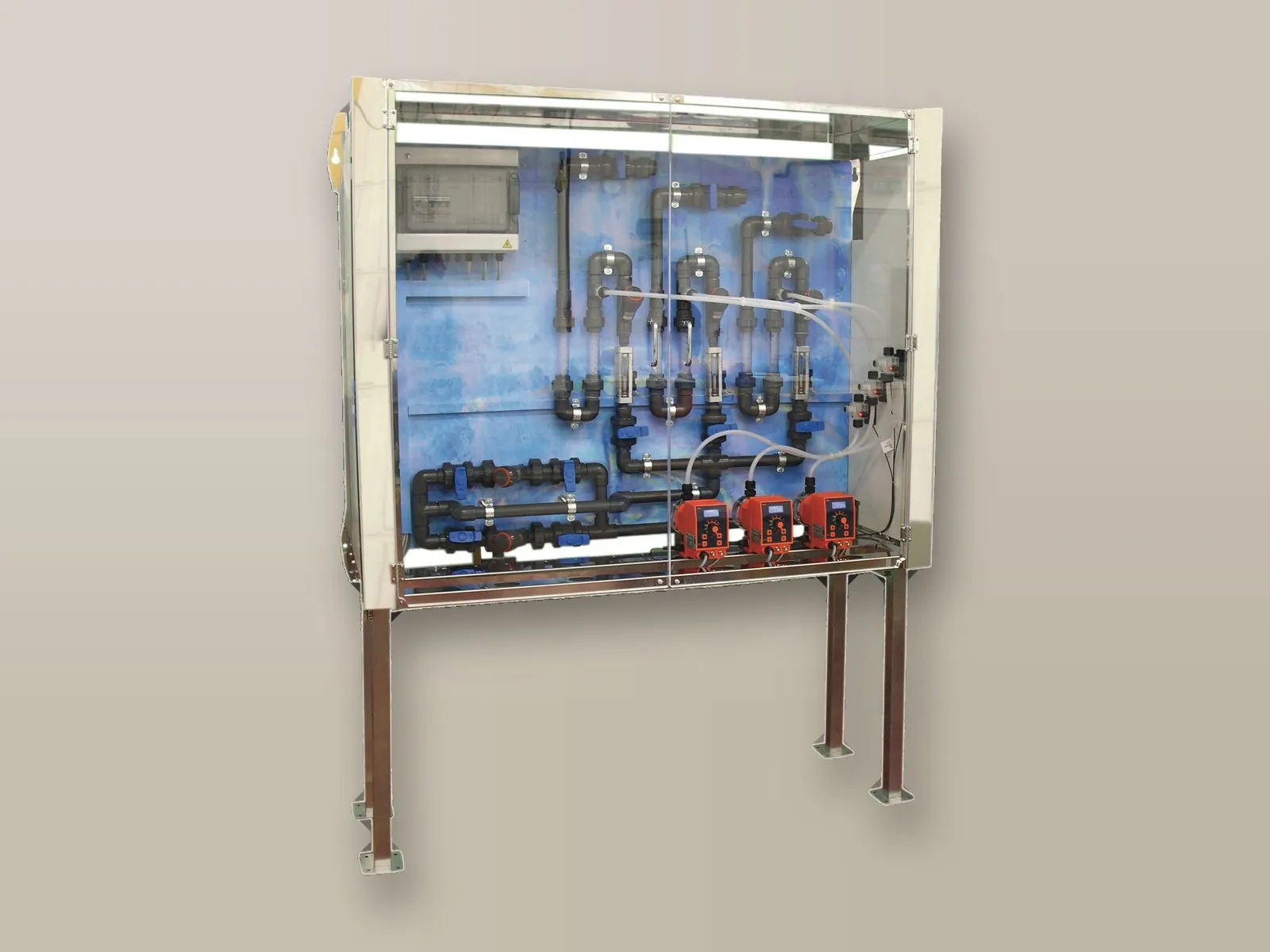

LDRhCL system for peracetic acid on a skid with raised frame and three dosing pumps

On a skid

Controller

The controller

It acquires the measurement from the probe and drives the dosing pump in proportion to the value detected. It is supplied pre-assembled on a panel, ready for connection.

Colour display

Multicolour backlit display that indicates the different operating states by changing colour. Programming via a single knob.

Four modes

Proportional, ON/OFF, PWM and PID dosing, with delayed dosing start.

Data storage

Permanent data storage and a system log viewable on the display; the internal log can be exported to a USB memory stick for processing with a spreadsheet.

Alarms

Chemical level, no flow, maximum dosing time exceeded, probe failure, out-of-range reading; acoustic or visual signalling via the alarm output.

The dosing pump, with flow rate and back-pressure defined at the time of ordering, is connected to the pulse output (and/or 0-4/20 mA) and operates in proportional or ON/OFF mode. A pre-calibrated injection valve and a magnetic level probe with coaxial foot filter, which stops the pump when the chemical runs out, are supplied as standard.

Display

Simultaneous display of both parameters

The display shows the two measured values, the status of each pump and the temperature.

LDpHCL display: pH and free chlorine in mg/l

pH and free chlorine

LDpHRh display: pH and Redox potential in mV

pH and Redox

LDpHCD display: pH and conductivity in mS

pH and conductivity

LDRhRh display: two Redox potentials in mV

Redox and Redox

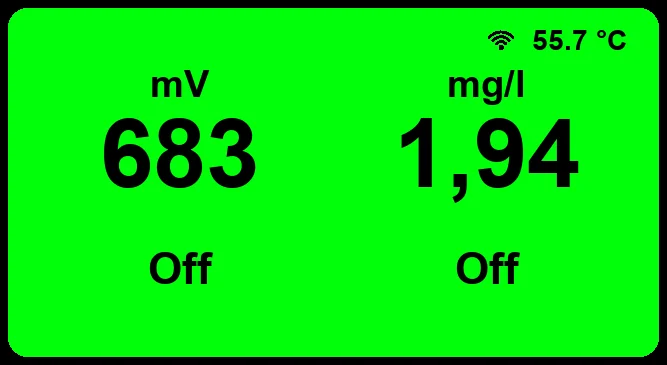

LDRhCL display: Redox potential in mV and peracetic acid in mg/l

Redox and peracetic acid

Data sheet

Controller data sheet

Inputs, outputs, control modes and alarms of the controller.

Inputs

  • 2 measuring probes
  • Temperature
  • Flow sensor
  • 2 chemical levels
  • Pulse-output water meter or mA signal

Outputs

  • 2 proportional or PID dosing pumps
  • 2 digital or PID outputs
  • 3 proportional 0-4/20 mA outputs

Control

  • Proportional
  • ON/OFF
  • PWM
  • PID
  • Delayed start

Alarms

  • Chemical levels
  • No flow
  • Maximum dosing time
  • Probe failure
  • Out-of-range reading

Power supply

  • 230 VAC
  • 12 – 24 VDC
Remote control

System remote control

The controllers can be remotely controlled bidirectionally (read and write) from the web portal, from PC, tablet and smartphone: viewing of measurements, modification of set points, dosing and alarms, receipt of alarms and download of logs. Alternatively, integration into your PLC via Modbus is possible.

NIMBUS web portal for remote control of the systems

Ethernet Optional, one of these

Connection to the web portal via network cable: measurements, set points, dosing and alarms accessible from PC, tablet and smartphone.

Wi-Fi Optional, one of these

Wireless connection to the web portal, with the same functions as the cable connection.

4G Optional, one of these

Connection via the cellular network for installations without a local network, with alarm notification by SMS or e-mail.

Modbus RTU Standard (standard models), optional (PLUS)

Integration into your PLC via serial port.

0-4/20 mA output Standard (PLUS), optional (standard models)

Current signal proportional to the measured value, for remote monitoring or for controlling pumps and other instrumentation.

One communication type at a time: Ethernet, Wi-Fi, 4G or Modbus RTU (built into the standard versions, optional on the PLUS versions). 4/20 mA outputs and meter input standard on the PLUS versions, optional on the standard versions.

The NIMBUS portal

A single account brings together all registered installations, each with its own devices: the web portal, free of charge and with no subscription, can be accessed from PC, Mac, tablet and smartphone and allows every parameter to be both viewed and changed, with an encrypted connection and protected access.

The NIMBUS portal on monitor, laptop, tablet and smartphone

Overview

On a single screen: probe readings, chemical levels, pump activation thresholds and active alarms, with the status of installations and devices (normal, warning, alarm, standby, not connected).

Installation map

Installations appear on an interactive map with their status and open with a click; for each one, the local weather conditions and temperature are also shown.

History and charts

Archive of measurements and alarms, available for consultation at any time with charts and numerical reports exportable in Excel format.

Alarms and notifications

Alarm thresholds for readings, dosing, faulty probe and out-of-range readings, with notification by e-mail or SMS depending on the communication system; a warning is also issued when an installation remains disconnected beyond the set time.

Set points and dosing

Remote modification of the set points, of the dosing pump activation thresholds and of the corresponding hourly flow rate.

Inputs and outputs

Status of relays, pulse outputs, digital inputs and current outputs, with the name assigned to each connection.

Maintenance calendar

Tasks are scheduled by installation or by device and assigned to technicians; a reminder is sent by e-mail two days before the due date. Each task is shown as scheduled, due, overdue or completed.

Team and permissions

The main account has full access and creates the technicians’ accounts, each enabled only for the assigned installations and devices; the last login and activity of each technician are visible.

Reports and activity log

Reports on devices, tasks and technicians, downloadable in PDF or CSV with the customer’s logo; the log keeps the history of operations and disconnections.

Customisation

Logo, main colour and light or dark theme; the tiles on the main screen can be rearranged by dragging them. Two installations can be displayed side by side for comparison.

Guided registration

Each device is added through a guided procedure: the model is recognised automatically and associated with the installation, together with the technician to be contacted.

PLC integration

As an alternative to the portal, the Modbus RTU or TCP/IP port allows integration into the plant supervision system.

NIMBUS portal: Real-time readings, counters and timers
Real-time readings, counters and timers
NIMBUS portal: Free chlorine and temperature trends
Free chlorine and temperature trends
NIMBUS portal: Set point and operating mode of each channel
Set point and operating mode of each channel
NIMBUS portal: Status of relays, pulses, inputs and mA outputs
Status of relays, pulses, inputs and mA outputs
Optional extras

Optional accessories

Accessories available on request to adapt the system to the requirements of the installation.

Tank

Tank

PE tanks for the chemical, with safety bund.

Details →
Pulse-output water meter

Pulse-output water meter

Enables dosing proportional to the volume of water actually treated.

Details →
Flow sensor

Flow sensor

Installed on the pump delivery line, it verifies that dosing actually takes place.

Details →
Static mixer

Static mixer

Ensures the chemical is mixed with the water and protects the pipe from direct contact.

Details →
Pulsation dampener

Pulsation dampener

Attenuates the pulsations generated by the dosing pump.

Details →

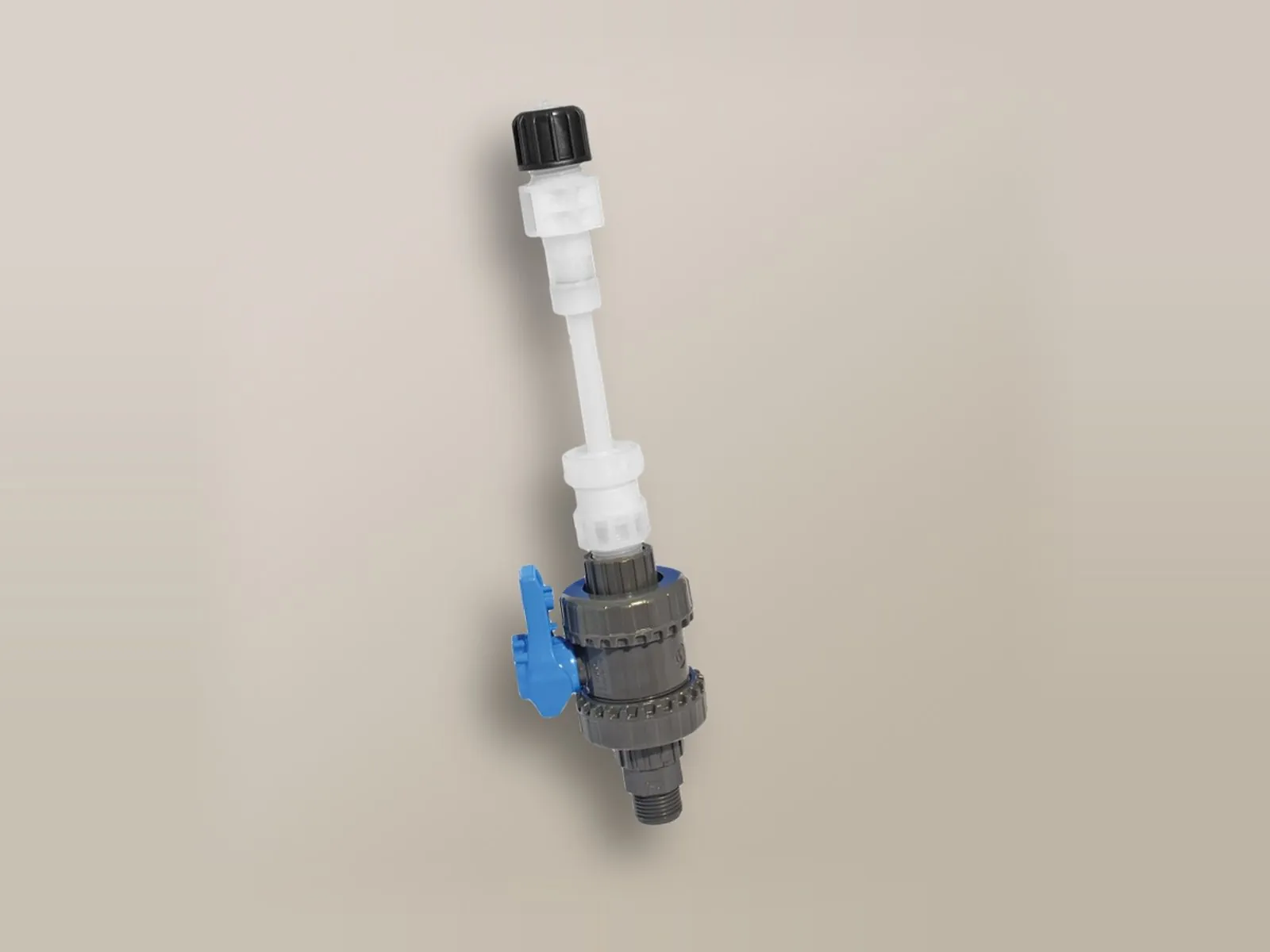

Injection lance

Injection lance

Injects the chemical into the centre of the pipe.

Details →
Multifunction valve

Multifunction valve

Pressure, safety and anti-siphon functions combined in a single valve.

Details →
Solenoid valve

Solenoid valve

Operated by the controller according to the measured value.

Which one to choose

From the simplest to the most complete solution

For chlorine and other disinfectants the basic solution is the dosing station; to dose according to the concentration actually present in the water, measuring controllers are used.

Dosing station on a tank

Dosing station

The simplest solution: the pump doses at a constant rate or in proportion to the volume of water measured by the pulse-output water meter.

Details →
LDsRh system on a panel

LDsRh

Dosing based on the Redox potential of the water: an economical solution, based on an indirect measurement.

Details →
LDsCL system on a panel

LDsCL

The amperometric cell directly measures the disinfectant concentration in mg/l, ensuring maximum dosing accuracy.

Details →
Two-channel LD system on a panel

LD Dual Parameter

Simultaneous management of two parameters, for example pH and chlorine, with a single controller.

Centurio PRO on a panel

Centurio PRO

Management of up to 10 parameters and of all the pumps in the installation, with touch screen and remote control as standard.

Details →

Technical advice

Tell us the parameters to be monitored and the characteristics of the plant: we will propose the most suitable controller, probes, pumps and accessories.

Contact

Tell us about your plant

Call or write to us: a technician will reply with a tailored proposal of controllers, pumps, probes and accessories.

What do you need?
Please enter your name.
Please enter a valid email address.
Please enter your message.

Describe your plant: type, water volume or flow rate, parameters to be controlled.

You must accept the privacy notice to continue.
