Measurement and control

LDsRh

The Redox potential (ORP), expressed in mV, indicates the disinfecting power of water: it increases in the presence of oxidants such as chlorine and decreases as contamination increases. The LDsRh system measures it and doses hypochlorite or another disinfectant in proportion to the measured value, up to the set point.

  • Range −1,000 / +1,000 mV
  • High-linearity electrode for drinking water
  • In by-pass, in-line or immersion
  • Proportional, ON/OFF, PWM, PID
LDsRh system pre-assembled on a panel with two dosing pumps and filters
LDsRhpre-assembled
LDsRh controller
Controller
± 1,000mVMeasuring range
1mVResolution
20minMinimum contact time
3Electrode positions
How it works

Disinfection control by means of Redox

The Redox potential to be maintained is set (set point, for example 450 mV) and the system doses the quantity of disinfectant required to reach it.

Insight: well water →
Diagram of the LDsRh system on a water storage tank: controller, Redox electrode, chemical injection with the LINI injection lance, hypochlorite tank and booster pump
1

Continuous measurement

The Redox electrode continuously analyses the water in the storage tank or in the pipe.

2

Proportional dosing

The controller drives one or more dosing pumps that inject hypochlorite into the tank, in proportion to the measured potential, up to the set point.

3

Continuous disinfection

The incoming water, potentially contaminated by pathogenic organisms, immediately comes into contact with the free chlorine and is disinfected, while the pump restores the set potential.

The action of chlorine requires a contact time appropriate to the organisms present, and in any case not less than 20 minutes. By adding a pulse-output water meter and a dosing pump connected to it, dosing also becomes proportional to the volume of water treated; the controller can also drive solenoid valves or other equipment according to the Redox value.

Applications

Applications

Drinking water

Raw water from wells and springs, private and from public water supply networks.

Insight: well water →

Domestic water circuits

Domestic water circuits.

Industry

Industrial process water.

Wastewater

Municipal and industrial wastewater.

Components

System components

The system is supplied pre-assembled on a panel. As an alternative to the wall-mounted controller, panel-mount controllers for installation in an electrical cabinet are available.

LDsRh controller

Controller

It acquires the mV measured by the electrode and activates the dosing pump until the set point is reached.

ERhHLB SN6 high-linearity Redox electrode

Redox electrode

Also available in a high-sensitivity, high-linearity version, designed to detect the very low free chlorine concentrations typical of drinking water.

Redox electrodes →
KMS MF multifunction dosing pump

Dosing pump

Solenoid diaphragm pump with wetted parts in PVDF or PP according to the chemical dosed, with flow rate and back-pressure defined at the time of order (VMS or KMS series, up to 18 l/h and 20 bar). For larger volumes, stepper motor or motor-driven pumps are used, up to 1,000 l/h or up to 100 bar; additional pumps can dose film-forming inhibitors.

The pumps →
Redox

Factors affecting the Redox potential

Chlorine, bromine, hydrogen peroxide, peracetic acid and ozone oxidise organic contaminants, such as bacteria and algae. The Redox potential is positive in the presence of oxidants (chlorine) and negative in the presence of reducing substances (sodium bisulphite).

Insight: the Redox potential →

pH

The Redox potential depends directly on pH and, to a lesser extent, on temperature: as the pH increases, the effectiveness of the oxidant decreases and a larger quantity of disinfectant is required to reach the same potential. In certain circumstances pH control may also be necessary.

pH control →

Pollutant load

With few oxidisable impurities (micro-organisms, organic matter, iron, copper, manganese), a small quantity of disinfectant is sufficient to obtain a high potential. As the pollutant load increases, the potential decreases and the system increases dosing to restore it.

Direct measurement in mg/l

The Redox measurement does not compensate for pH variations or for the effect of chemicals that may alter it. For the direct measurement of free chlorine in mg/l, with automatic pH compensation, the LDsCL amperometric system is used.

LDsCL system →
Technical data

Probe data sheet

The controller measures the Redox potential from −1,000 to +1,000 mV (resolution 1 mV) and the temperature from 0 to 100 °C (resolution 0.1 °C); electrode self-cleaning on request; electrode in by-pass, in-line or immersion.

Redox electrodes
ElectrodeRangePressureConnectionBodyMinimum conductivityJunctionTemperatureCableDiameterNotes
ERhS± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)0.8 m12 mm–
ERhM± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)4.5 m12 mm–
ERhL± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µS–70 °C (80 °C)15 m12 mm–
ERhHLB SN6± 1,500 mV6 barSN6 with PG13.5 threadGlass100 µS–80 °C10 m12 mmHigh linearity and sensitivity, for low chlorine concentrations
ERhSN6± 1,000 mV7 barSN6 with PG13.5 threadEpoxy100 µS–100 °C1 – 100 m12 mm–
ERhMD/100± 1,000 mV7 barBNCEpoxy100 µSDouble100 °C4.5 m12 mm–
ERhM/D± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µSDouble70 °C (80 °C)4.5 m12 mm–
ERhSC± 1,000 mV7 bar (3.5 bar)BNCEpoxy100 µSDouble70 °C (80 °C)4.5 m12 mmSelf-cleaning
ERhSC/SN6± 1,000 mV7 bar (3.5 bar)SN6 with PG13.5 threadEpoxy100 µSDouble70 °C (80 °C)1 – 100 m12 mmSelf-cleaning

All models: combination electrode, resolution 1 mV.

Installation

Electrode positioning

Electrode positioning is defined according to the characteristics of the installation and of the water to be analysed.

PEF flow-through probe holder and NPED probe holder

In by-pass

The probes are housed in a PEF flow-through probe holder or an NPED probe holder, connected to a water tapping point at the tank outlet and fed with about 30 l/h of sample water. A flow sensor can be added, which stops dosing when there is no flow.

Probe holders →
Immersion probe holder

Immersion

The electrode is immersed directly in the storage tank of the water to be treated, by means of an immersion probe holder.

Probe holders →
Immersion probe holder with cleaning nozzle

Immersion with cleaning

A solution suited to heavily loaded water: at programmed intervals the control panel puts the controller in stand-by and opens a solenoid valve that sends water or air to the nozzle; once cleaning is complete, it closes the valve and, after the electrode repolarisation time has elapsed, resumes dosing.

Probe holders →
In-line probe holder

In-line

The electrodes are inserted directly into the pipe carrying the water to be treated.

Probe holders →
Controller

The controller

It acquires the measurement from the probe and drives the dosing pump in proportion to the value detected. It is supplied pre-assembled on a panel, ready for connection.

Colour display

Multicolour backlit display that indicates the different operating states by changing colour. Programming via a single knob.

Four modes

Proportional, ON/OFF, PWM and PID dosing, with delayed dosing start.

Data storage

Permanent data storage and a system log viewable on the display; the internal log can be exported to a USB memory stick for processing with a spreadsheet.

Alarms

Chemical level, no flow, maximum dosing time exceeded, probe failure, out-of-range reading; acoustic or visual signalling via the alarm output.

The dosing pump, with flow rate and back-pressure defined at the time of ordering, is connected to the pulse output (and/or 0-4/20 mA) and operates in proportional or ON/OFF mode. A pre-calibrated injection valve and a magnetic level probe with coaxial foot filter, which stops the pump when the chemical runs out, are supplied as standard.

Colour display

Colour-coded status indication

By changing colour, the controller’s backlit display indicates the different operating states, which can be recognised even from a distance.

Display Normal operation

Normal operation

Measurement and dosing according to the set parameters.

Display Stand-by

Stand-by

Controller in stand-by.

Display Warning

Warning

Warning signal, for example the chemical level.

Display Alarm

Alarm

Alarm signal, for example from the probe.

Settings from the display

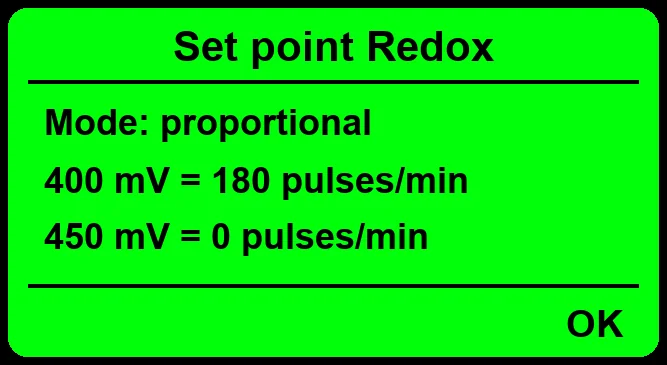

LDsRh display: set point setting
Proportional mode: 180 pulses per minute at 400 mV, pump stopped at 450 mV
Data sheet

Controller data sheet

Inputs, outputs, control modes and alarms of the controller.

Inputs

  • Measuring probe
  • Temperature
  • Flow sensor
  • Chemical level
  • Pulse-output water meter or mA signal

Outputs

  • 1 proportional dosing pump
  • 1 digital output
  • 2 proportional 0-4/20 mA outputs

Control

  • Proportional
  • ON/OFF
  • PWM
  • PID
  • Delayed start

Alarms

  • Chemical level
  • No flow
  • Maximum dosing time
  • Probe failure
  • Out-of-range reading

Power supply

  • 230 VAC
  • 12 – 24 VDC
Remote control

System remote control

The controllers can be remotely controlled bidirectionally (read and write) from the web portal, from PC, tablet and smartphone: viewing of measurements, modification of set points, dosing and alarms, receipt of alarms and download of logs. Alternatively, integration into your PLC via Modbus is possible.

NIMBUS web portal for remote control of the systems

Ethernet Optional, one of these

Connection to the web portal via network cable: measurements, set points, dosing and alarms accessible from PC, tablet and smartphone.

Wi-Fi Optional, one of these

Wireless connection to the web portal, with the same functions as the cable connection.

4G Optional, one of these

Connection via the cellular network for installations without a local network, with alarm notification by SMS or e-mail.

Modbus RTU Standard (standard models), optional (PLUS)

Integration into your PLC via serial port.

0-4/20 mA output Standard (PLUS), optional (standard models)

Current signal proportional to the measured value, for remote monitoring or for controlling pumps and other instrumentation.

One communication type at a time: Ethernet, Wi-Fi, 4G or Modbus RTU (built into the standard versions, optional on the PLUS versions). 4/20 mA outputs and meter input standard on the PLUS versions, optional on the standard versions.

The NIMBUS portal

A single account brings together all registered installations, each with its own devices: the web portal, free of charge and with no subscription, can be accessed from PC, Mac, tablet and smartphone and allows every parameter to be both viewed and changed, with an encrypted connection and protected access.

The NIMBUS portal on monitor, laptop, tablet and smartphone

Overview

On a single screen: probe readings, chemical levels, pump activation thresholds and active alarms, with the status of installations and devices (normal, warning, alarm, standby, not connected).

Installation map

Installations appear on an interactive map with their status and open with a click; for each one, the local weather conditions and temperature are also shown.

History and charts

Archive of measurements and alarms, available for consultation at any time with charts and numerical reports exportable in Excel format.

Alarms and notifications

Alarm thresholds for readings, dosing, faulty probe and out-of-range readings, with notification by e-mail or SMS depending on the communication system; a warning is also issued when an installation remains disconnected beyond the set time.

Set points and dosing

Remote modification of the set points, of the dosing pump activation thresholds and of the corresponding hourly flow rate.

Inputs and outputs

Status of relays, pulse outputs, digital inputs and current outputs, with the name assigned to each connection.

Maintenance calendar

Tasks are scheduled by installation or by device and assigned to technicians; a reminder is sent by e-mail two days before the due date. Each task is shown as scheduled, due, overdue or completed.

Team and permissions

The main account has full access and creates the technicians’ accounts, each enabled only for the assigned installations and devices; the last login and activity of each technician are visible.

Reports and activity log

Reports on devices, tasks and technicians, downloadable in PDF or CSV with the customer’s logo; the log keeps the history of operations and disconnections.

Customisation

Logo, main colour and light or dark theme; the tiles on the main screen can be rearranged by dragging them. Two installations can be displayed side by side for comparison.

Guided registration

Each device is added through a guided procedure: the model is recognised automatically and associated with the installation, together with the technician to be contacted.

PLC integration

As an alternative to the portal, the Modbus RTU or TCP/IP port allows integration into the plant supervision system.

NIMBUS portal: Real-time readings, counters and timers
Real-time readings, counters and timers
NIMBUS portal: Free chlorine and temperature trends
Free chlorine and temperature trends
NIMBUS portal: Set point and operating mode of each channel
Set point and operating mode of each channel
NIMBUS portal: Status of relays, pulses, inputs and mA outputs
Status of relays, pulses, inputs and mA outputs
Optional extras

Optional accessories

Accessories available on request to adapt the system to the requirements of the installation.

Tank

Tank

PE tanks for the chemical, with safety bund.

Details →
Pulse-output water meter

Pulse-output water meter

Enables dosing proportional to the volume of water actually treated.

Details →
Flow sensor

Flow sensor

Installed on the pump delivery line, it verifies that dosing actually takes place.

Details →
Static mixer

Static mixer

Ensures the chemical is mixed with the water and protects the pipe from direct contact.

Details →
Pulsation dampener

Pulsation dampener

Attenuates the pulsations generated by the dosing pump.

Details →
Injection lance

Injection lance

Injects the chemical into the centre of the pipe.

Details →
Multifunction valve

Multifunction valve

Pressure, safety and anti-siphon functions combined in a single valve.

Details →
Solenoid valve

Solenoid valve

Operated by the controller according to the measured value.

Which one to choose

From the simplest to the most complete solution

For chlorine and other disinfectants the basic solution is the dosing station; to dose according to the concentration actually present in the water, measuring controllers are used.

Dosing station on a tank

Dosing station

The simplest solution: the pump doses at a constant rate or in proportion to the volume of water measured by the pulse-output water meter.

Details →
LDsRh system on a panel

LDsRh

Dosing based on the Redox potential of the water: an economical solution, based on an indirect measurement.

LDsCL system on a panel

LDsCL

The amperometric cell directly measures the disinfectant concentration in mg/l, ensuring maximum dosing accuracy.

Details →
Two-channel LD system on a panel

LD Dual Parameter

Simultaneous management of two parameters, for example pH and chlorine, with a single controller.

Details →
Centurio PRO on a panel

Centurio PRO

Management of up to 10 parameters and of all the pumps in the installation, with touch screen and remote control as standard.

Details →
