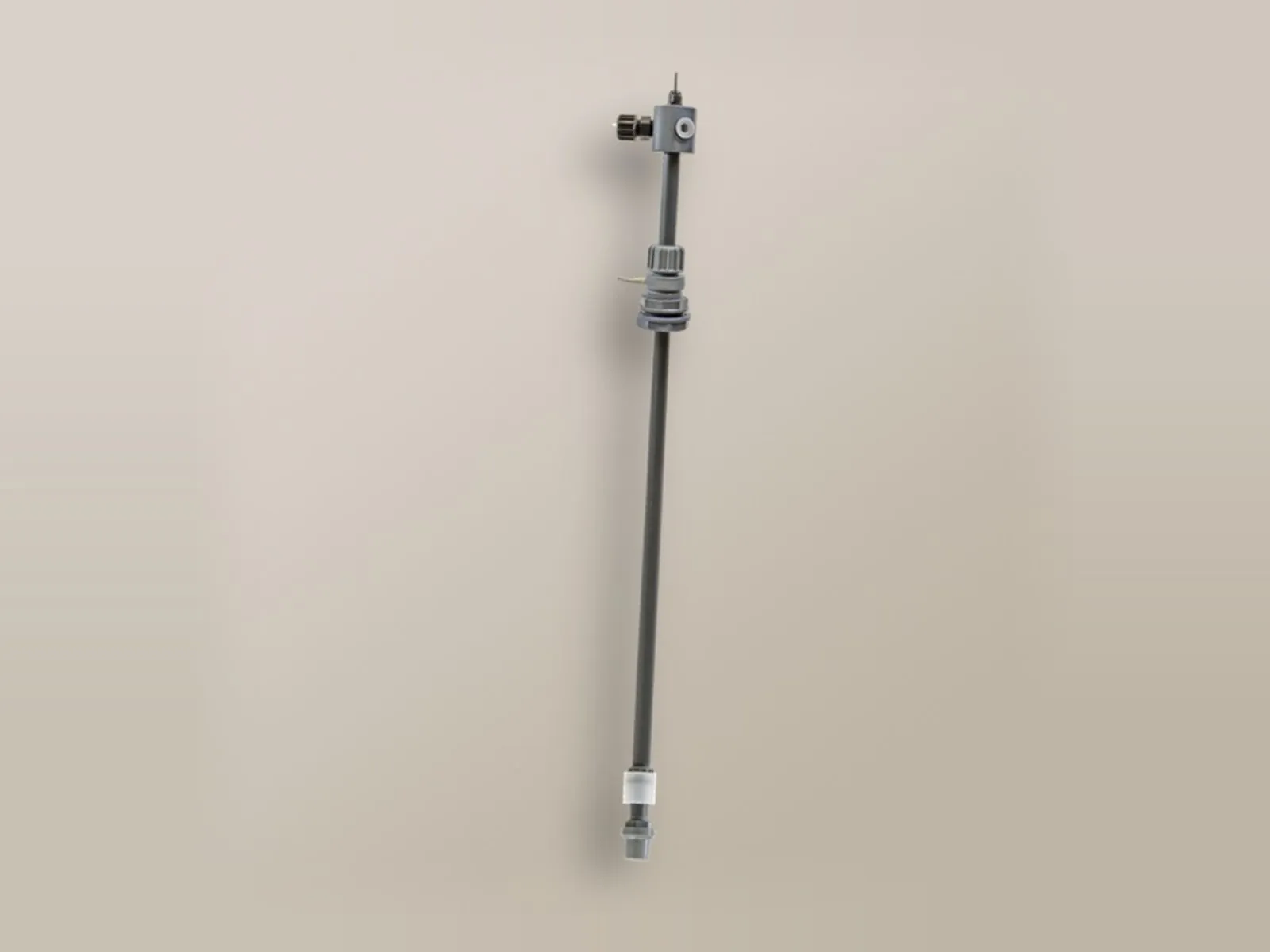

LASP suction lance
Allows the dosing pump to draw the product from the tank. Rigid PVC or PVDF tube with foot filter and level probe; at the top the suction hose connection, in the middle the tank fixing and the bleed hose connection.
Dosing accessories
Lances
Lances for drawing the chemical from the tank, for injecting it into the centre of the pipe and for monitoring the level in the tank.
- LASP suction
- LINI injection
- LALIV level, up to 3 levels
- In PVC, PP or PVDF
122cmMaximum LASP length
16barLINI pressure
140°CLINI temperature
3LALIV levels
3 models
Suction, injection and level
Available versions

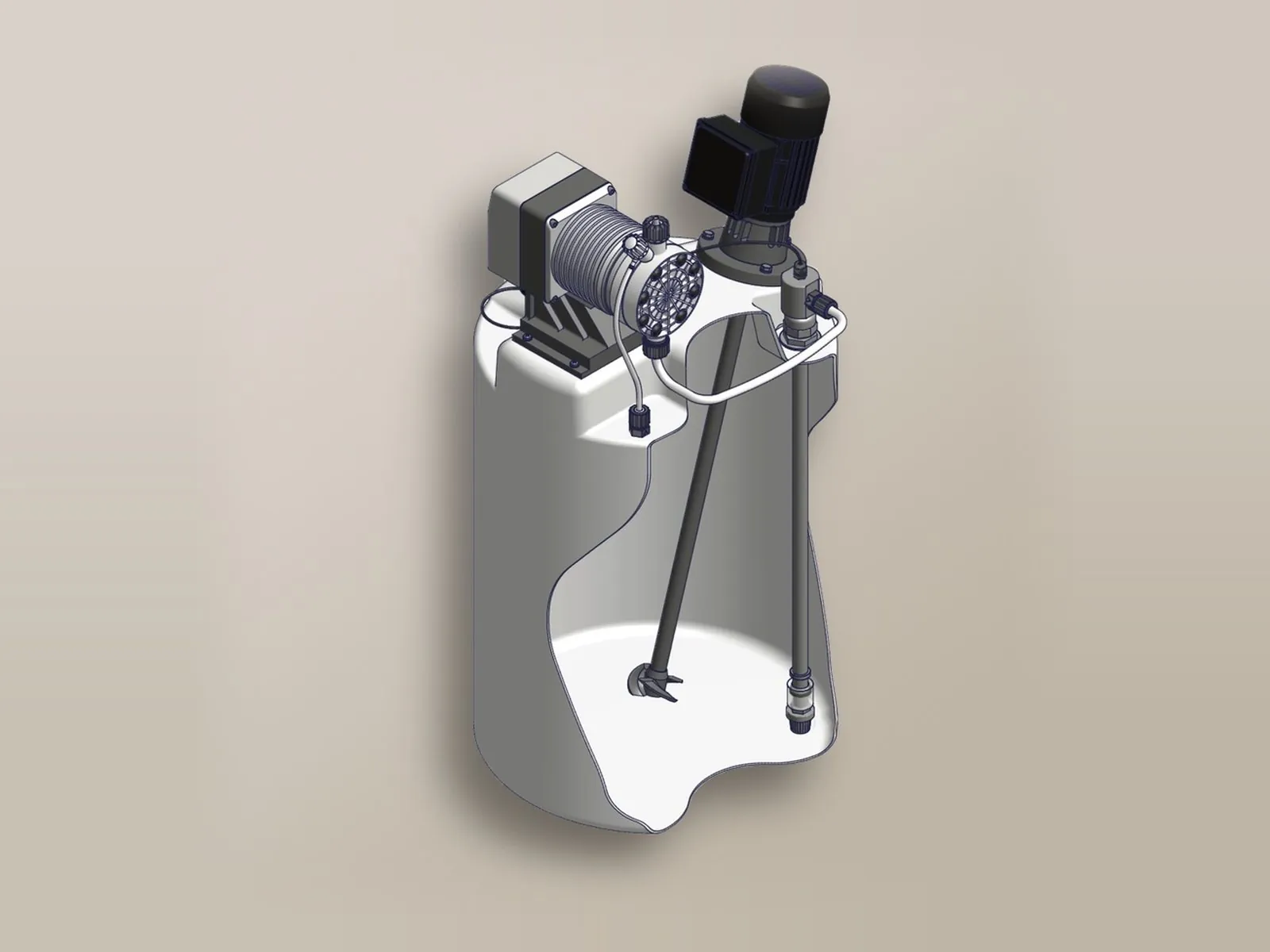

On the tankEssential when a mixer is fitted.

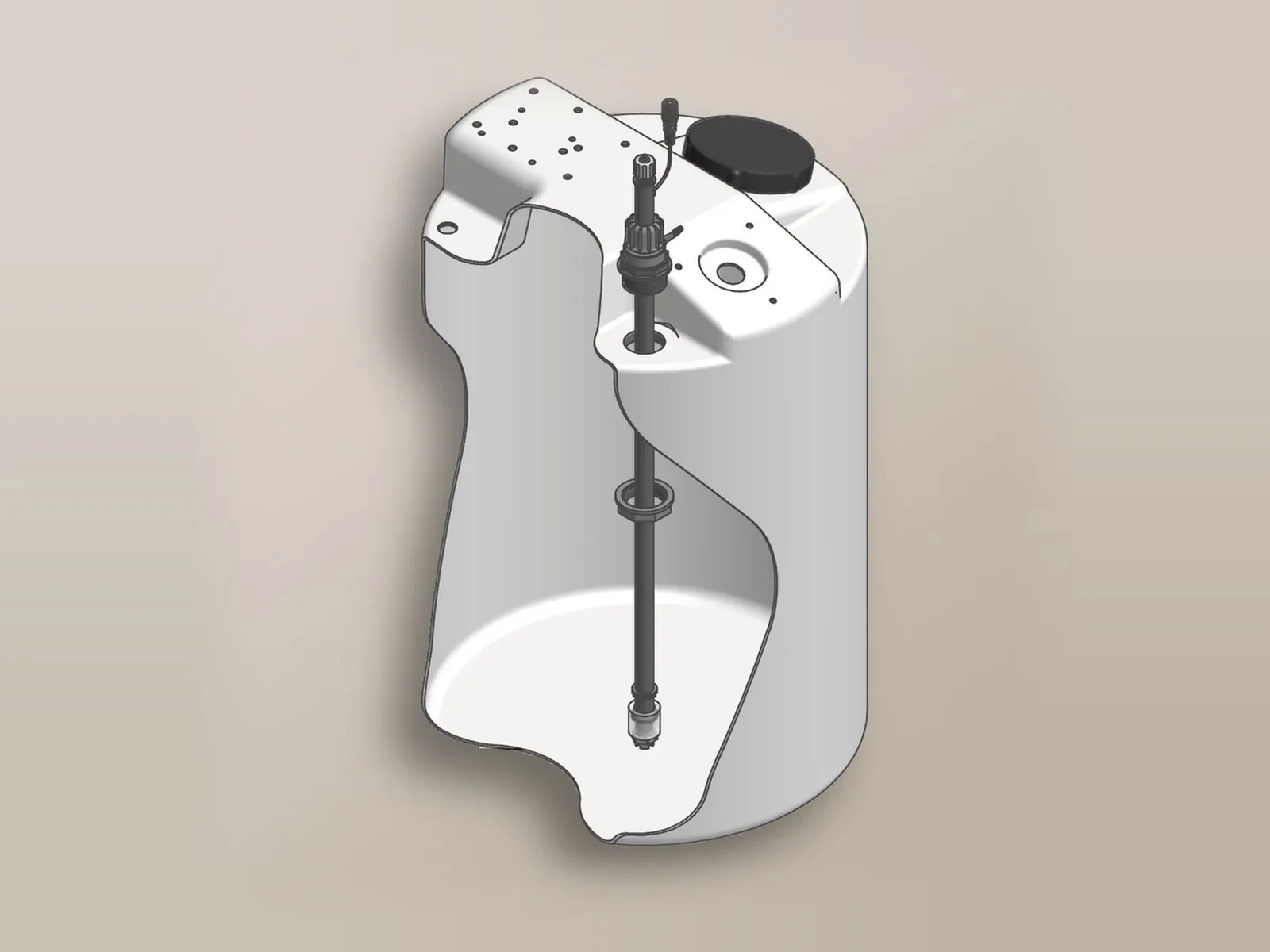

On other tanksCan also be installed on existing tanks.

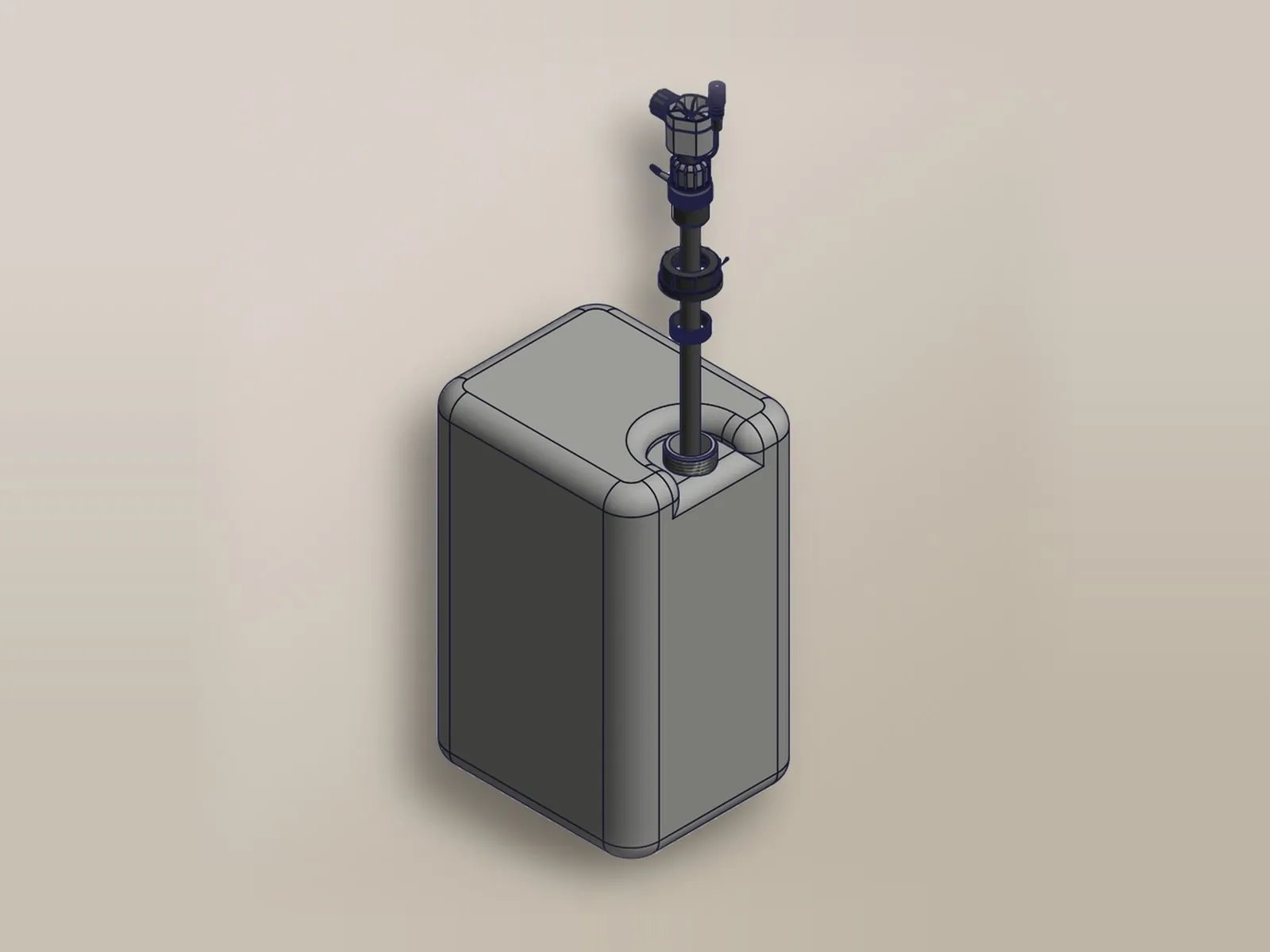

On a jerrycanCan also be installed on jerrycans.

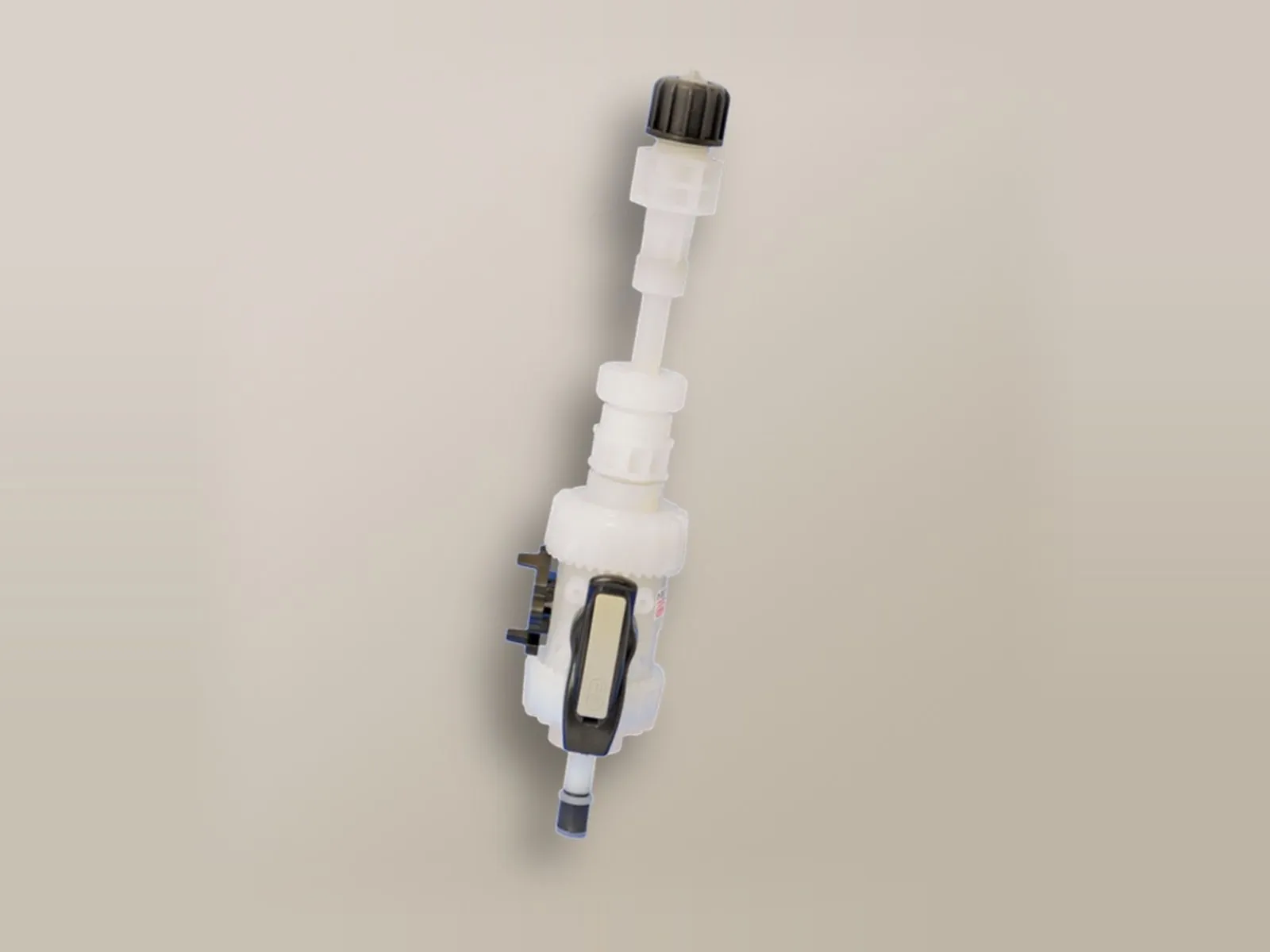

LINI injection lance
Injects the product into the centre of the pressurised pipe, improving its mixing in the water flow; the injection point, constantly wetted, is not subject to the formation of crystals and scale. The tap allows the lance to be withdrawn with the pipe under pressure.
Available versions
LINIIn PP or PVDF.

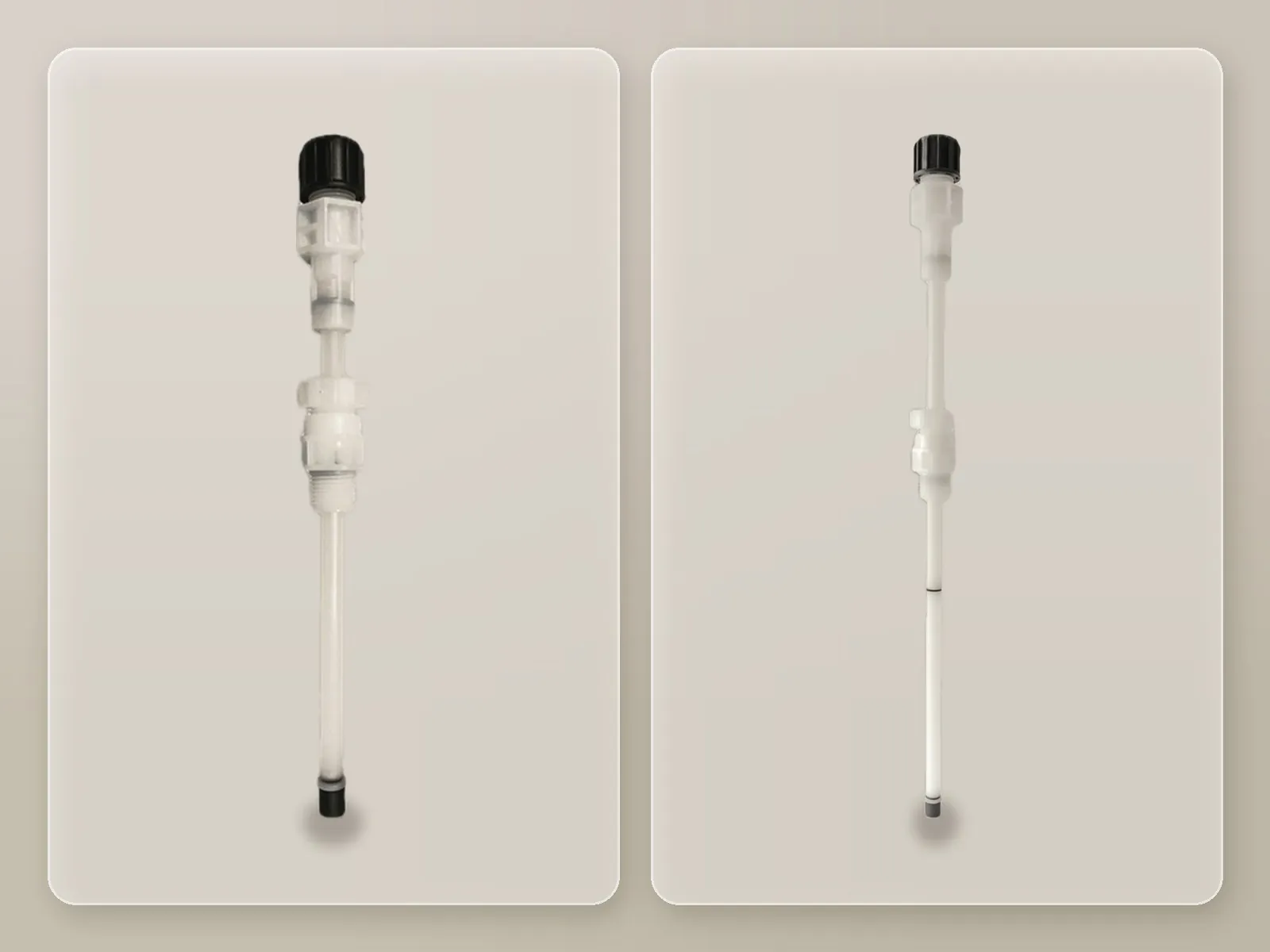

Available lengthsFrom 29 to 44 cm.

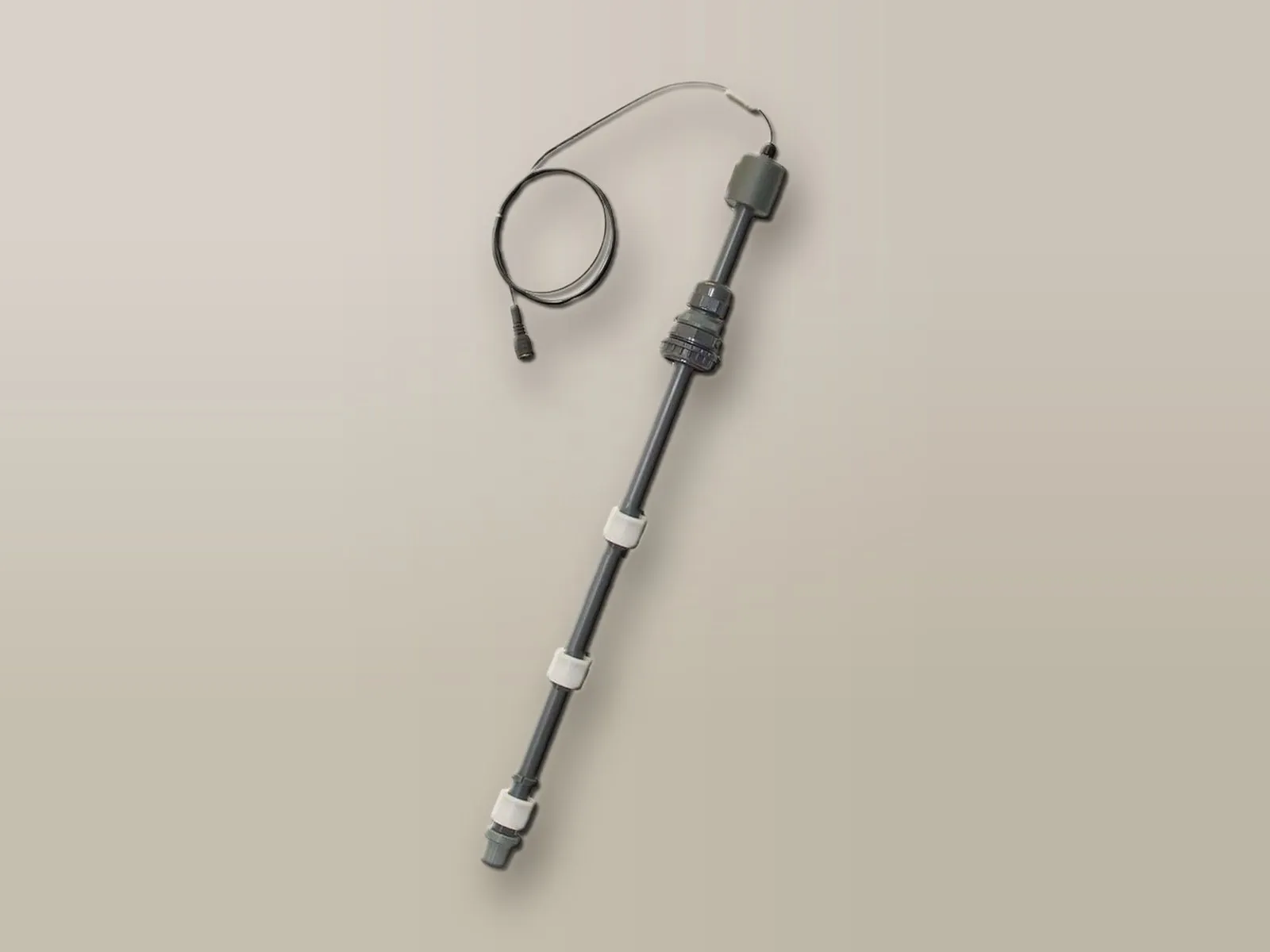

LALIV level lance
Detects up to 3 levels of the chemical. Adjustable height to suit any tank; the spacing between the floats is specified when ordering.
Advantages
Advantages of lances
Sealed tank
The suction lance is essential in tanks with a mixer and is always recommended in any case: the tank remains sealed, with no risk of vapours escaping. It can be pre-installed on our tanks, on existing tanks and on jerrycans.
Injection into the centre of the flow
The injection lance ensures contact between the product and the water and better mixing; it prevents the formation of crystals and scale that could damage the chemical lines.
Technical data
Data sheet
| LASP | LINI | LALIV | |
|---|---|---|---|
| Length | 40 · 63 · 75 · 108 · 122 cm | 29 · 34 · 39 · 44 cm | Adjustable |
| Body | PVC or PVDF | PP or PVDF | PVC |
| O-ring | EP or FKM B | EP or FKM B | – |
| Tap | – | PVC or PVDF | – |
| Floats | – | – | Up to 3, in PVDF or PP |
| Mounting fitting | 1.1/2" | 1/2" or 3/4" | – |
| Maximum temperature | – | 140 °C | – |
| Maximum pressure | – | 16 bar | – |
LALIV, REED contact: response time 1 ms, release time 0.3 ms, length 20 mm, maximum power 20 W.
Technical advice
Tell us about your application: our technical staff will recommend the most suitable model, configuration and accessories.
