Coated shaft
The shaft is made of PVC-coated stainless steel.
Storage and mixing
Mixers

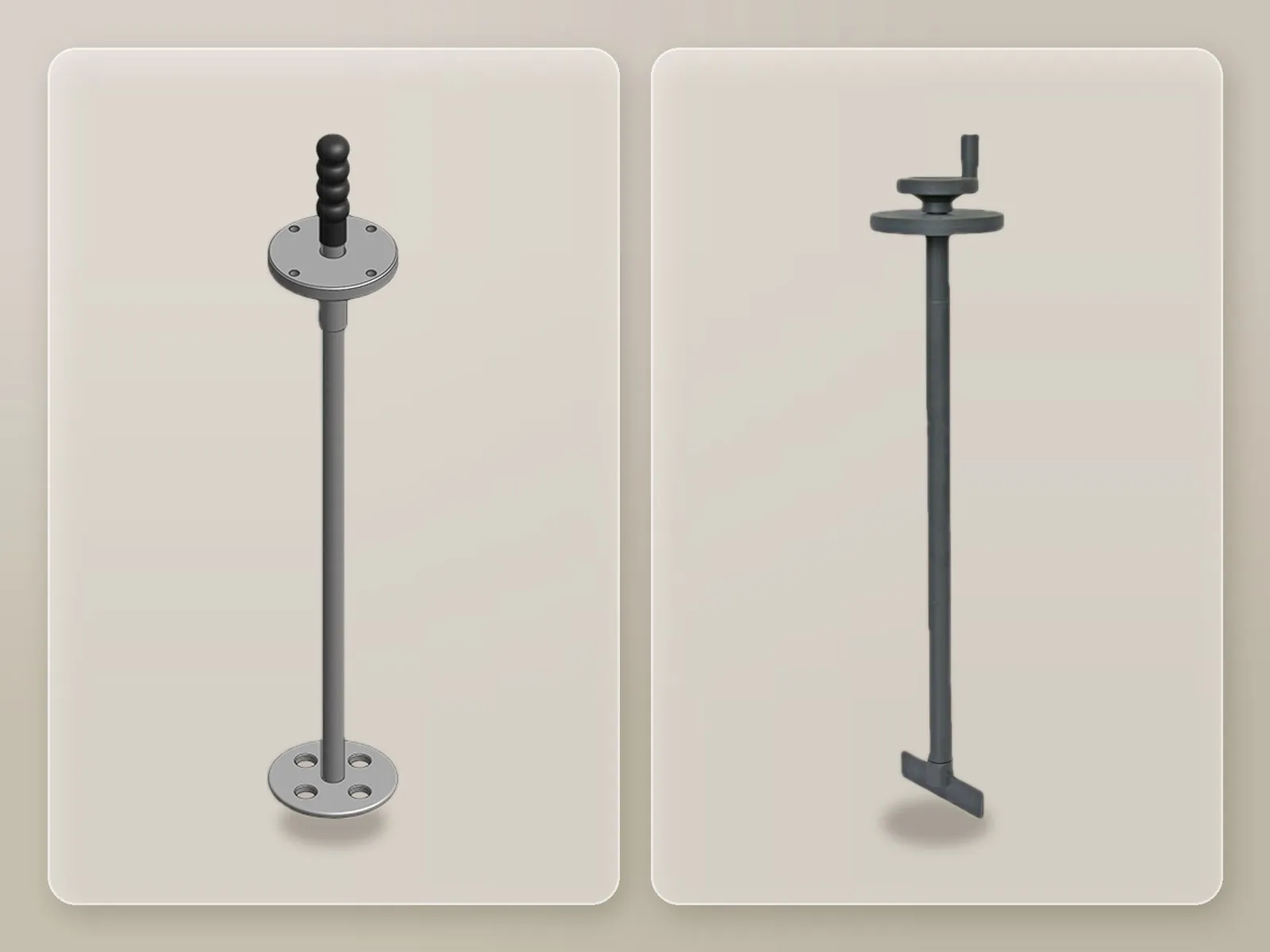

Manual or motor-driven mixers, with single-phase or three-phase power supply, for dissolving and mixing chemicals. Suitable for all products, of any density and viscosity, including aggressive ones.
- From 0.09 to 0.37 kW
- From 65 to 1,400 rpm
- PVC-coated stainless steel shaft
- Lubrication-free gearbox
0.37kWMaximum power
1,400rpmMaximum speed
1,100mmMaximum height
6MIX models
Construction
MIX motor-driven mixers
Maintenance-free gearbox
Worm gearbox requiring no lubrication, integral with the support flange for mounting on the tank.
Protection against vapours
An elastic seal between the flange and the shaft coating protects the gearbox and motor from chemical vapours.
Technical data
Data sheet
MIX mixers
| Model | Power | Power supply | Speed | Height | Impeller | Impeller diameter |
|---|---|---|---|---|---|---|
| MIX N8 | 0.09 kW | Single-phase or three-phase | 65 · 200 rpm | 630 · 730 mm | 3-blade | 150 mm |
| MIX VN8 | 0.09 kW | Single-phase or three-phase | 1,400 rpm | 630 · 730 mm | Marine | 70 mm |
| MIX N4 | 0.18 kW | Single-phase or three-phase | 65 · 200 · 400 rpm | 730 · 980 · 1,100 mm | 3-blade | 150 mm |
| MIX VN4 | 0.18 kW | Single-phase or three-phase | 1,400 rpm | 730 · 980 mm | Marine | 90 mm |
| MIX N2 | 0.37 kW | Single-phase or three-phase | 65 · 200 · 400 rpm | 1,100 mm | 4-blade | 150 mm |
| MIX VN2 | 0.37 kW | Single-phase or three-phase | 1,400 rpm | 730 · 980 · 1,100 mm | Marine | 90 mm |
Speed and height are chosen independently from those available for the model.
Technical advice
Tell us about your application: our technical staff will recommend the most suitable model, configuration and accessories.
