LDpHCl controller
Two-channel controller for pH and free chlorine, with colour display and control of the dosing pumps.
LDpHCl controller →
Systems for fire-fighting water tanks
LDpHCl
For larger tanks: the two-channel controller measures pH and free chlorine and controls dedicated dosing pumps, selected according to the volume of the tank.
- pH and free chlorine
- Dedicated dosing pumps
- Colour display

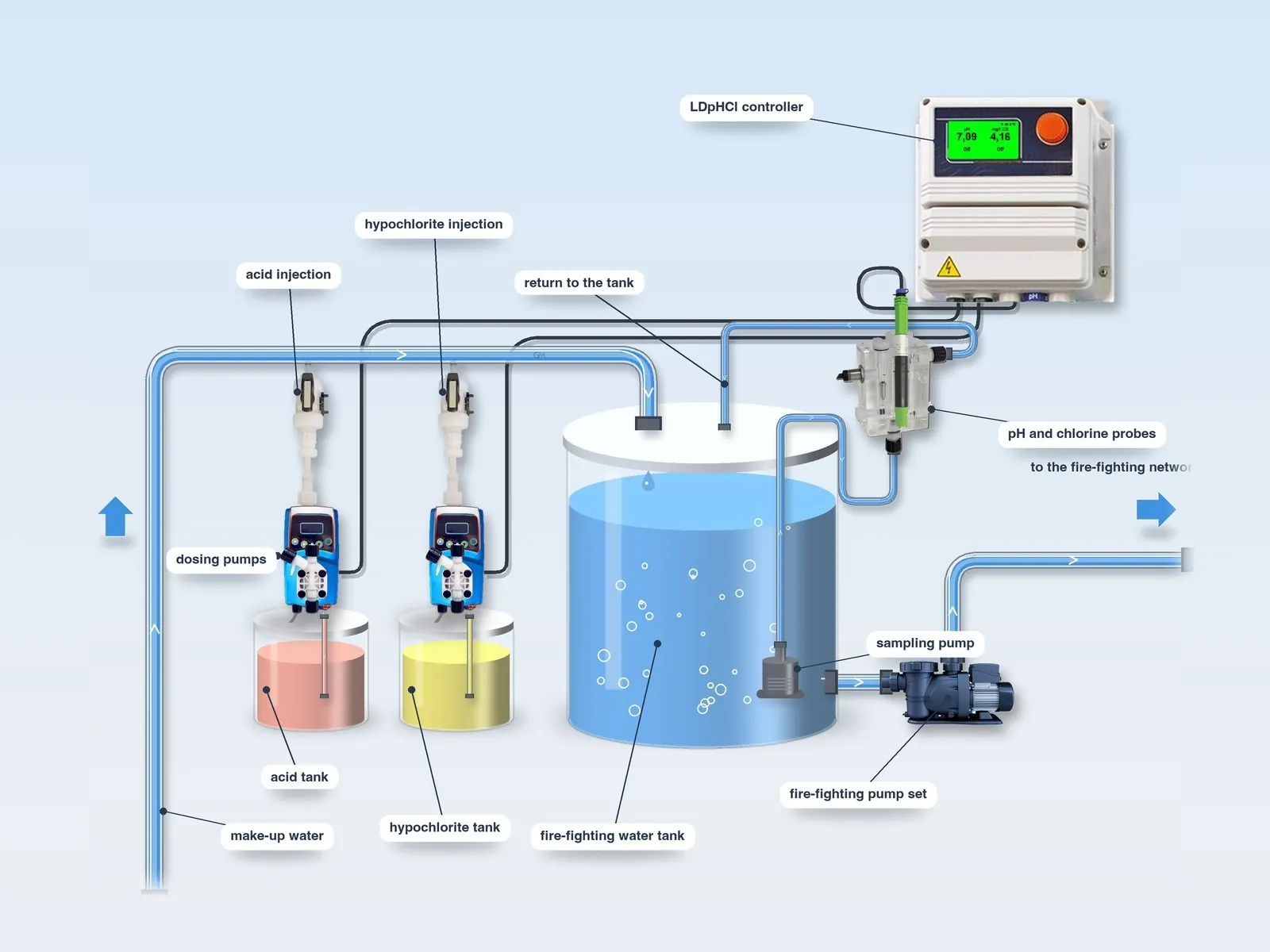

Typical layout
Typical layout
Components
Basic components
Dosing pump
Solenoid dosing pump with adjustable flow rate, controlled by the controller or by the pulses from the water meter.
Dosing pumps →
pH electrode
Combination electrode, 0 – 14 pH scale, with temperature compensation.
pH electrodes →
Closed amperometric cell
SCL cell with selective membrane: it measures free chlorine, compensating for pH and temperature.
SCL cells →
Flow-through probe holder
In PMMA, with sample flow rate adjustment and flow sensor, which stops dosing when there is no circulation.
Probe holders →
Injection lance
It introduces the product into the centre of the pipe, improving mixing; it can be withdrawn with the pipe under pressure.
Lances →
Operation
Operation
Sampling
The sampling pump sends the water from the tank to the probe holder; the water then returns to the tank.
pH priority
The controller first adjusts the pH and only then doses the hypochlorite.
Proportional dosing
The pumps progressively reduce their flow rate as the values approach the set points.
Alarms
Out-of-range reading, faulty probe, product levels and no flow.
Colour display
Colour-coded status indication
By changing colour, the controller’s backlit display indicates the different operating states, which can be recognised even from a distance.

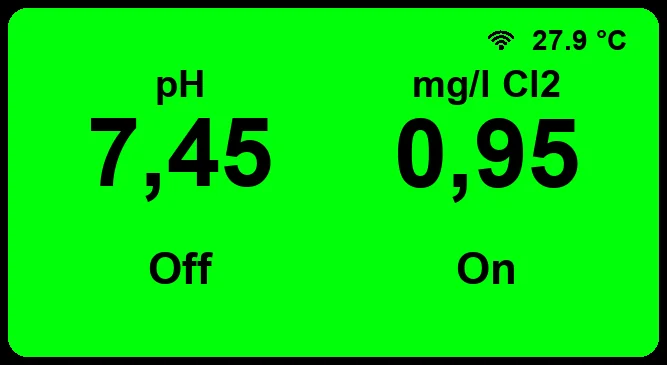

Normal operation
Measurement and dosing according to the set parameters.

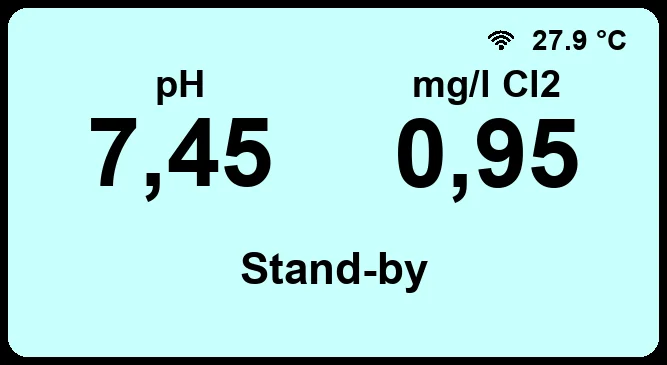

Stand-by
Controller in stand-by.

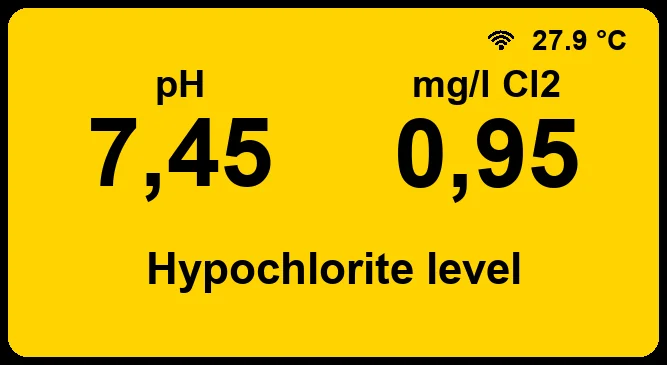

Warning
Warning signal, for example the chemical level.

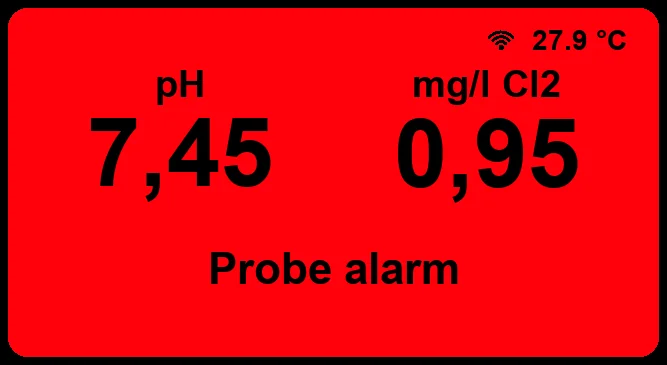

Alarm
Alarm signal, for example from the probe.
Technical data
Probe data sheet
pH electrodes
| Electrode | Pressure | Connection | Body | Minimum conductivity | Junction | Temperature | Cable | Diameter | Notes |
|---|---|---|---|---|---|---|---|---|---|
| EPHS | 7 bar (3.5 bar) | BNC | Epoxy | 100 µS | – | 70 °C (80 °C) | 0.8 m | 12 mm | – |
| EPHM | 7 bar (3.5 bar) | BNC | Epoxy | 100 µS | – | 70 °C (80 °C) | 4.5 m | 12 mm | – |
| EPHL | 7 bar (3.5 bar) | BNC | Epoxy | 100 µS | – | 70 °C (80 °C) | 15 m | 12 mm | – |
| EPHSN6 | 7 bar (3.5 bar) | SN6 with PG13.5 thread | Epoxy | 100 µS | – | 70 °C (80 °C) | 1 – 100 m | 12 mm | – |
| EPHMD/100 | 7 bar | BNC | Epoxy | 100 µS | Double | 100 °C | 4.5 m | 12 mm | – |
| EPHM/D | 7 bar (3.5 bar) | BNC | Epoxy | 100 µS | Double | 70 °C (80 °C) | 4.5 m | 12 mm | – |
| EPHM/D/SN6 | 7 bar (3.5 bar) | SN6 with PG13.5 thread | Epoxy | 100 µS | Double | 70 °C (80 °C) | 1 – 100 m | 12 mm | – |
| EPHMD/LI | 7 bar (3.5 bar) | SN6 with PG13.5 thread | Epoxy | 3 µS | Double | 70 °C (80 °C) | 1 – 100 m | 12 mm | For low-conductivity water |
| EPHSC | 7 bar (3.5 bar) | BNC | Epoxy | 100 µS | Double | 70 °C (80 °C) | 4.5 m | 12 mm | Self-cleaning |
| EPHSC/SN6 | 7 bar (3.5 bar) | SN6 with PG13.5 thread | Epoxy | 100 µS | Double | 70 °C (80 °C) | 1 – 100 m | 12 mm | Self-cleaning |
| EPHM/HF | 7 bar (3.5 bar) | BNC | Epoxy | 100 µS | Double | 70 °C (80 °C) | 4.5 m | 12 mm | Resistant to 1% hydrofluoric acid |
| EPHSN6 GK | 10 bar | SN6 | Glass | 150 µS | – | −5 / 135 °C | 1 – 100 m | 12 mm | High temperature |
All models: combination electrode, range 0 – 14 pH, resolution 0.01.
Closed (membrane) amperometric cells – Free chlorine
| SCL3N/0.5 | SCL3N/2 | SCL3N/20 | SCL18/0.5 | SCL18/2 | SCL18/20 | SCL3S/20 | |
|---|---|---|---|---|---|---|---|
| Measuring range | 0 – 0.5 mg/l | 0 – 2 mg/l | 0 – 20 mg/l | 0 – 0.5 mg/l | 0 – 2 mg/l | 0 – 20 mg/l | 0 – 20 mg/l |
| Resolution | 0.001 | 0.001 | 0.01 | 0.001 | 0.001 | 0.01 | 0.01 |
| Free chlorine | Inorganic | Inorganic | Inorganic | Inorganic | Inorganic | Inorganic | Organic and inorganic |
| Water | Fresh | Fresh | Fresh | Fresh | Fresh | Fresh | Fresh or salt |
| Electrodes | 2 | 2 | 2 | 3 | 3 | 3 | 2 |
| Selective membrane | Yes | Yes | Yes | No | No | No | Yes |
| Automatic compensation | pH and temperature | pH and temperature | pH and temperature | pH and temperature | pH and temperature | pH and temperature | Temperature |
| Self-cleaning | – | – | – | Yes | Yes | Yes | – |
| Operating pH | 5 – 9.5 | 5 – 9.5 | 5 – 9.5 | 5 – 9 | 5 – 9 | 5 – 9 | 5.5 – 9.5 |
| Operating temperature | 1 – 40 °C | 1 – 40 °C | 1 – 40 °C | 5 – 70 °C | 5 – 70 °C | 5 – 70 °C | 5 – 45 °C |
| Operating pressure | 1 bar | 1 bar | 1 bar | 8 bar | 8 bar | 8 bar | 1 bar |
| Water flow | 30 l/h | 30 l/h | 30 l/h | 40 l/h | 40 l/h | 40 l/h | 30 l/h |
Remote control
System remote control
The controllers can be remotely controlled bidirectionally (read and write) from the web portal, from PC, tablet and smartphone: viewing of measurements, modification of set points, dosing and alarms, receipt of alarms and download of logs. Alternatively, integration into your PLC via Modbus is possible.
Ethernet Optional, one of these
Connection to the web portal via network cable: measurements, set points, dosing and alarms accessible from PC, tablet and smartphone.
Wi-Fi Optional, one of these
Wireless connection to the web portal, with the same functions as the cable connection.
4G Optional, one of these
Connection via the cellular network for installations without a local network, with alarm notification by SMS or e-mail.
Modbus RTU Standard (standard models), optional (PLUS)
Integration into your PLC via serial port.
0-4/20 mA output Standard (PLUS), optional (standard models)
Current signal proportional to the measured value, for remote monitoring or for controlling pumps and other instrumentation.
One communication type at a time: Ethernet, Wi-Fi, 4G or Modbus RTU (built into the standard versions, optional on the PLUS versions). 4/20 mA outputs and meter input standard on the PLUS versions, optional on the standard versions.
The NIMBUS portal
A single account brings together all registered installations, each with its own devices: the web portal, free of charge and with no subscription, can be accessed from PC, Mac, tablet and smartphone and allows every parameter to be both viewed and changed, with an encrypted connection and protected access.
Overview
On a single screen: probe readings, chemical levels, pump activation thresholds and active alarms, with the status of installations and devices (normal, warning, alarm, standby, not connected).
Installation map
Installations appear on an interactive map with their status and open with a click; for each one, the local weather conditions and temperature are also shown.
History and charts
Archive of measurements and alarms, available for consultation at any time with charts and numerical reports exportable in Excel format.
Alarms and notifications
Alarm thresholds for readings, dosing, faulty probe and out-of-range readings, with notification by e-mail or SMS depending on the communication system; a warning is also issued when an installation remains disconnected beyond the set time.
Set points and dosing
Remote modification of the set points, of the dosing pump activation thresholds and of the corresponding hourly flow rate.
Inputs and outputs
Status of relays, pulse outputs, digital inputs and current outputs, with the name assigned to each connection.
Maintenance calendar
Tasks are scheduled by installation or by device and assigned to technicians; a reminder is sent by e-mail two days before the due date. Each task is shown as scheduled, due, overdue or completed.
Team and permissions
The main account has full access and creates the technicians’ accounts, each enabled only for the assigned installations and devices; the last login and activity of each technician are visible.
Reports and activity log
Reports on devices, tasks and technicians, downloadable in PDF or CSV with the customer’s logo; the log keeps the history of operations and disconnections.
Customisation
Logo, main colour and light or dark theme; the tiles on the main screen can be rearranged by dragging them. Two installations can be displayed side by side for comparison.
Guided registration
Each device is added through a guided procedure: the model is recognised automatically and associated with the installation, together with the technician to be contacted.
PLC integration
As an alternative to the portal, the Modbus RTU or TCP/IP port allows integration into the plant supervision system.
Other systems
Fire-fighting water tanks
The requirements of the sector and the comparison with the other systems available.
Systems for fire-fighting water tanks →
Installations
Installation examples
Systems are supplied pre-assembled and tested, in the form best suited to the plant room: on a panel, in a cabinet or on a skid (with cover, in a box or on a frame), also tailor-made. Some examples.
On a panel
Controller, pumps, probe holder and accessories mounted and wired on a wall panel.
In a cabinet
System panel and chemical tanks housed in a single cabinet.
Wall cabinet
Pipework, pumps and electrical panel in a wall cabinet with door.
Skid with cover
Skid with raised stainless steel frame and protective PMMA cover.
Skid in a box
Skid enclosed in a box with door, with the chemical tanks at the base.
Skid on a frame
Skid on a frame with doors, pre-assembled and ready for connection.
On the tank
Dosing pump mounted directly on the tank: the most compact solution.
In the plant room
Wall installation in the plant room, with the chemical tanks on the floor.
Pumps, controllers or components supplied by the customer can also be fitted, with custom dimensions, back panel and electrical panel. Dosing stations and skids →
Which one to choose
From the simplest to the most complete solution
For chlorine and other disinfectants the basic solution is the dosing station; to dose according to the concentration actually present in the water, measuring controllers are used.
Dosing station
The simplest solution: the pump doses at a constant rate or in proportion to the volume of water measured by the pulse-output water meter.
Details →
LDsRh
Dosing based on the Redox potential of the water: an economical solution, based on an indirect measurement.
Details →
LDsCL
The amperometric cell directly measures the disinfectant concentration in mg/l, ensuring maximum dosing accuracy.
Details →
LD Dual Parameter
Simultaneous management of two parameters, for example pH and chlorine, with a single controller.
Details → Centurio PRO
Management of up to 10 parameters and of all the pumps in the installation, with touch screen and remote control as standard.
Details →Technical advice
Describe your plant and the flow rate of water to be treated: we will size the controller, pumps and accessories.
