WDpHCl Chlorine
With integrated dosing pumps and pH and free chlorine measuring controllers.
- Proportional to pH
- Proportional to free chlorine (open amperometric cell)
- Proportional to free chlorine (closed amperometric cell)
Swimming pool dosing pumps
WD Series
Solenoid diaphragm dosing pumps for swimming pools: they simultaneously dose the pH corrector and the disinfectant (sodium hypochlorite, bromine or hydrogen peroxide), with integrated measuring controllers. Priority can be given to pH control, with the disinfectant controlled only afterwards, to the benefit of its effectiveness. The flow rate is adjusted electronically by frequency, by varying the number of injections per minute.
- pH and free chlorine, bromine, peroxide or Redox
- Priority to pH control
- S models for salt chlorinators
- Remote control via cloud or Modbus
10l/hMaximum flow rate
7barMaximum pressure
2Separate set points
6Models
6 models
Model selection
The choice of model depends on the disinfectant used and on the measuring controller required. The S models control a salt chlorinator instead of the hypochlorite pump.
Compatible components
EpHSpH electrode

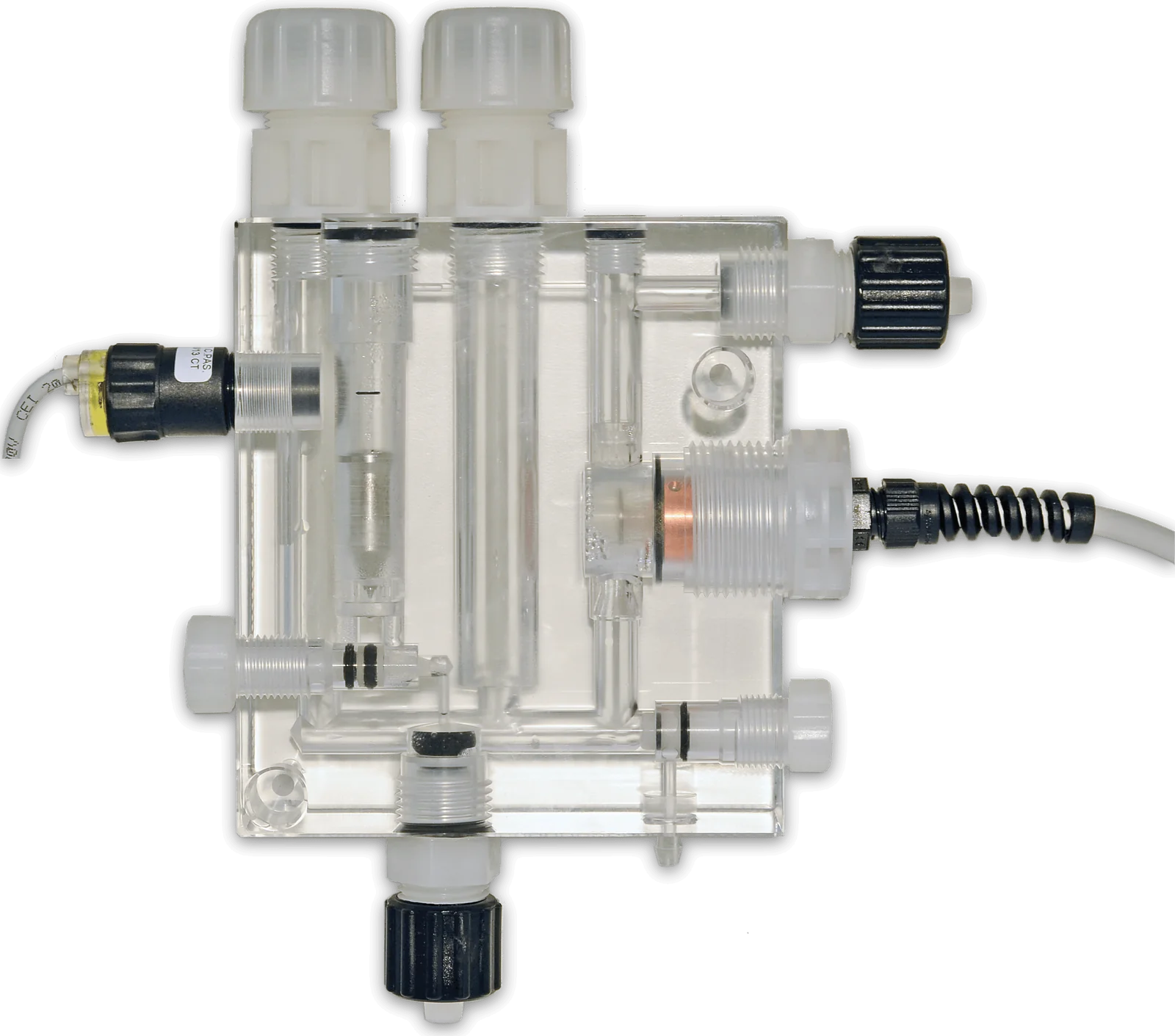

ECL6Open amperometric cell for free chlorine
SCL 3S/20Closed (membrane) amperometric cell for free chlorine

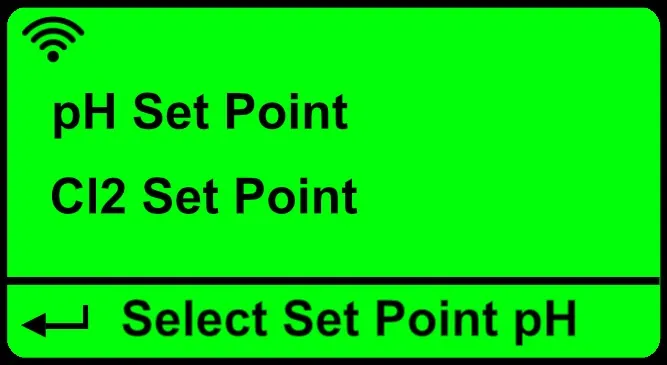

WDpHCls
With integrated dosing pumps and pH and free chlorine measuring controllers, and an output for controlling the salt chlorinator.
- Proportional to pH
- Proportional to free chlorine (open amperometric cell)
- Proportional to free chlorine (closed amperometric cell)
Compatible components
EpHSpH electrode
ECL6Open amperometric cell for free chlorine
SCL 3S/20Closed (membrane) amperometric cell for free chlorine

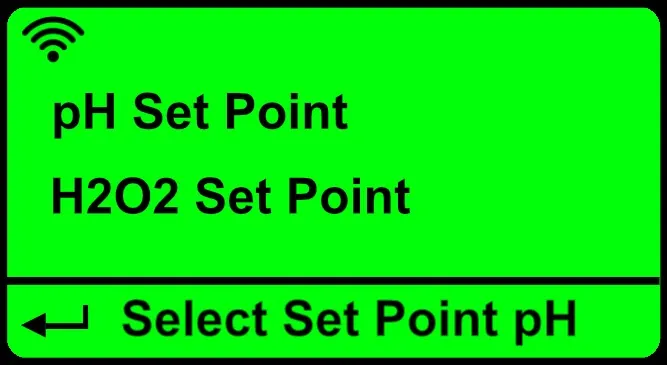

WDpHCl Peroxide
With integrated dosing pumps and pH and hydrogen peroxide measuring controllers.
- Proportional to pH
- Proportional to hydrogen peroxide
Compatible components
EpHSpH electrode

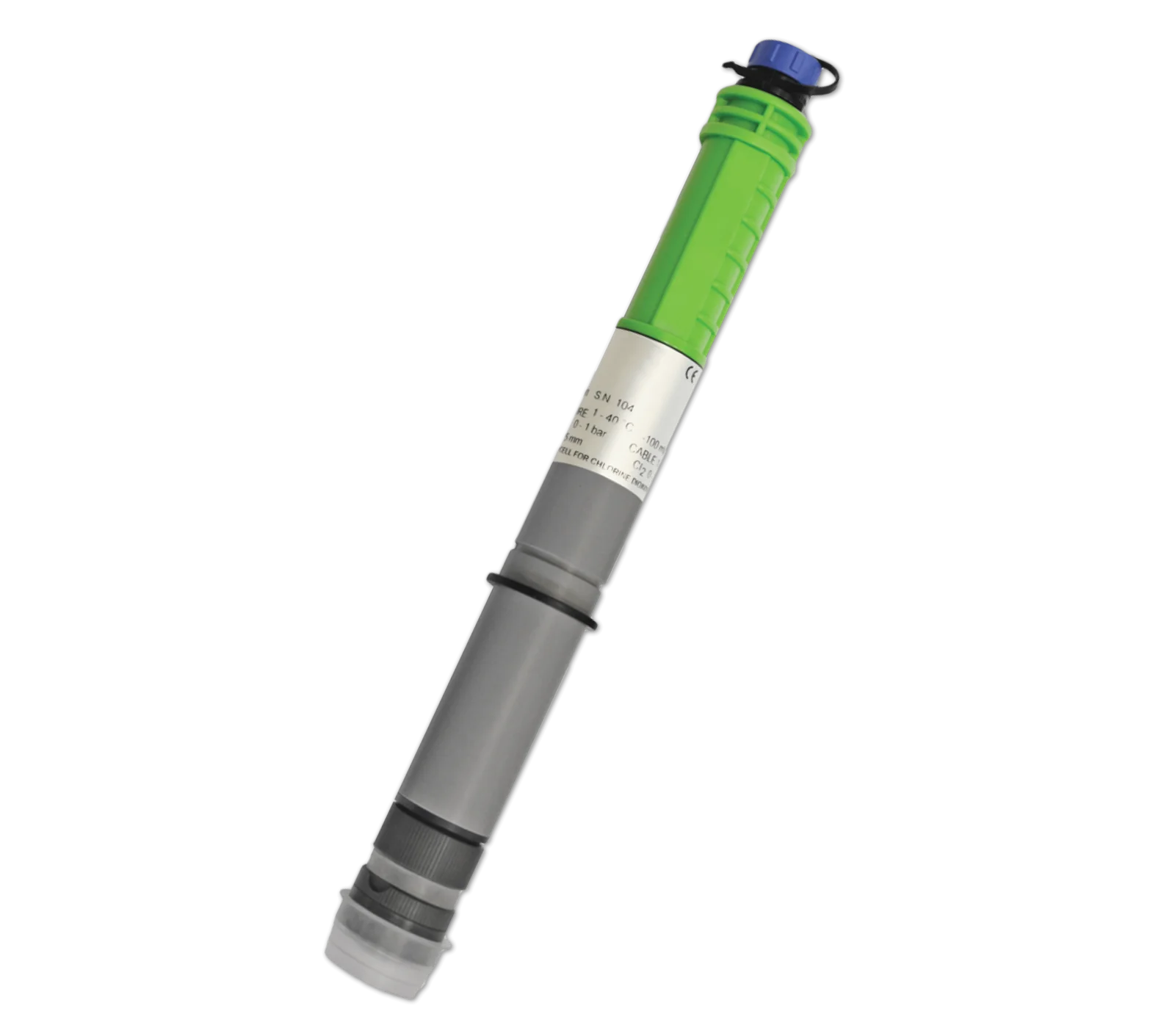

SCL 9/200Closed (membrane) amperometric cell for free hydrogen peroxide
WDpHCl Bromine
With integrated dosing pumps and pH and bromine measuring controllers.
- Proportional to pH
- Proportional to free bromine
Compatible components
EpHSpH electrode

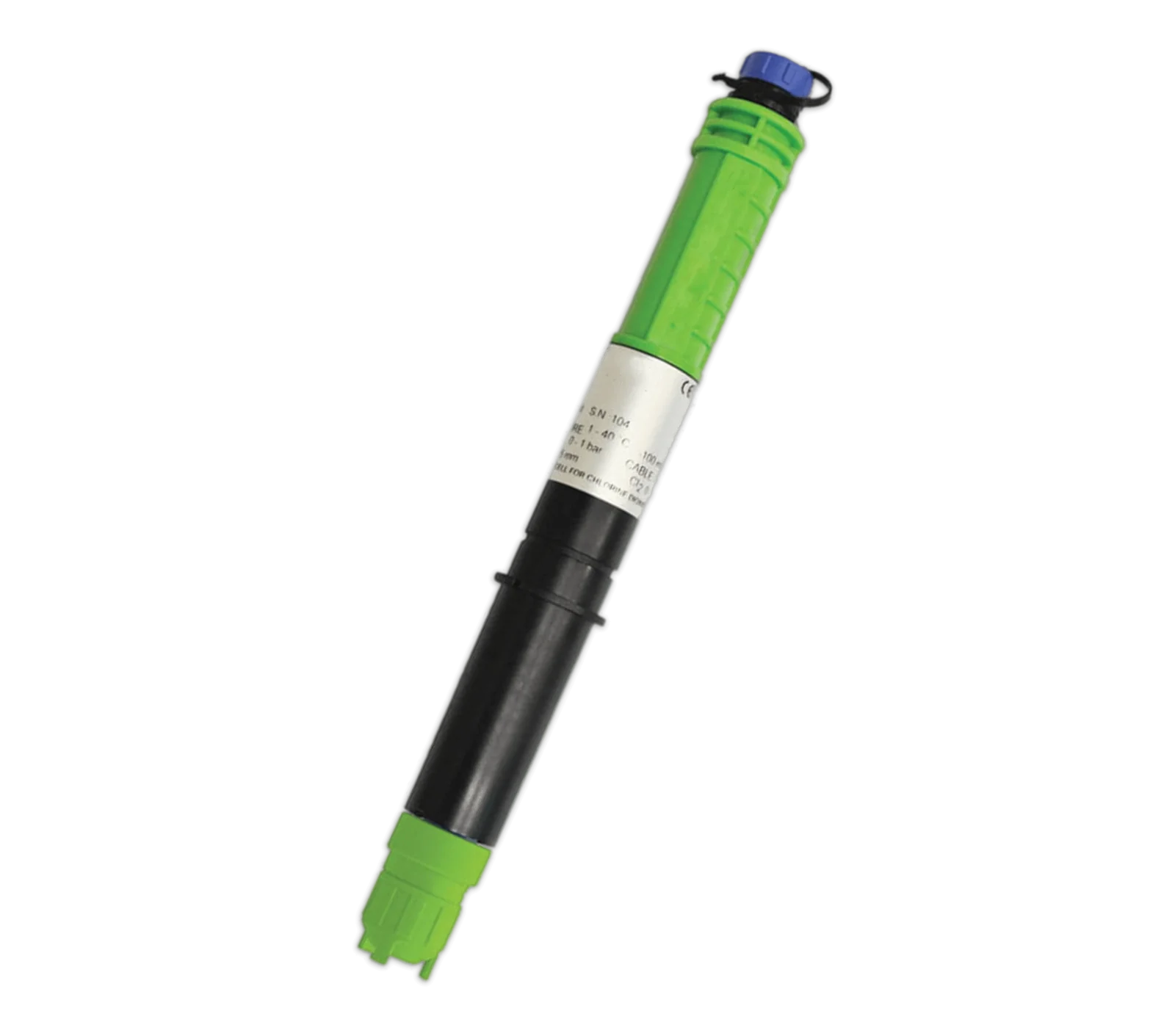

SBRClosed (membrane) amperometric cell for free bromine

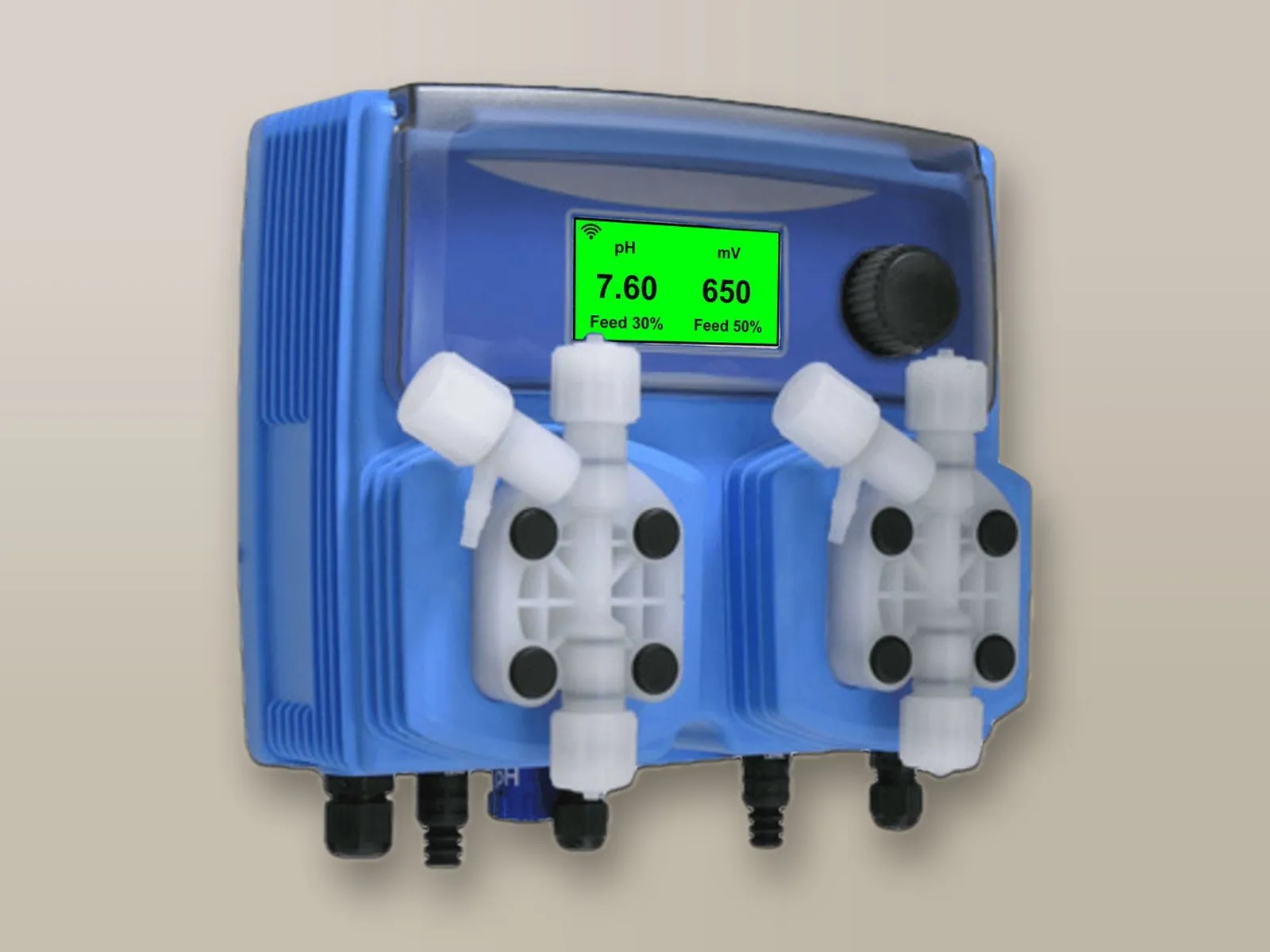

WDpHRh
With integrated dosing pumps and pH and Redox (ORP) measuring controllers.
- Proportional to pH
- Proportional to Redox
Compatible components
EpHSpH electrode
ERhSRedox (ORP) electrode
WDpHRhs
With integrated dosing pumps and pH and Redox (ORP) measuring controllers, and an output for controlling the salt chlorinator.
- Proportional to pH
- Proportional to Redox
Compatible components
EpHSpH electrode
ERhSRedox (ORP) electrode
Overview
Model comparison
| Function | pHCl | pHCls | pHCl Per. | pHCl Br. | pHRh | pHRhs |
|---|---|---|---|---|---|---|
| Dosing modes | ||||||
| Proportional to pH | ● | ● | ● | ● | ● | ● |
| Proportional to Redox | – | – | – | – | ● | ● |
| Proportional to free chlorine (open amperometric cell) | ● | ● | – | – | – | – |
| Proportional to free chlorine (closed amperometric cell) | ● | ● | – | – | – | – |
| Proportional to free bromine | – | – | – | ● | – | – |
| Proportional to hydrogen peroxide | – | – | ● | – | – | – |
| Functions | ||||||
| Level control | – | ● | – | – | – | ● |
| Independent adjustment | ● | ● | ● | ● | ● | ● |
| Separate set points | ● | ● | ● | ● | ● | ● |
| Dosing priority | ● | ● | ● | ● | ● | ● |
| Level control (two tanks) | ● | – | ● | ● | ● | – |
| Salt chlorinator control | – | ● | – | – | – | ● |
Operation
Dosing modes
Proportional to pH
The required pH value (SET POINT) is set: the pump measures the pH by means of a pH electrode and progressively reduces the injection frequency as the set value approaches, stopping when the SET POINT is reached.
Models: WDpHCl Chlorine, WDpHCls, WDpHCl Peroxide, WDpHCl Bromine, WDpHRh, WDpHRhs
Proportional to Redox

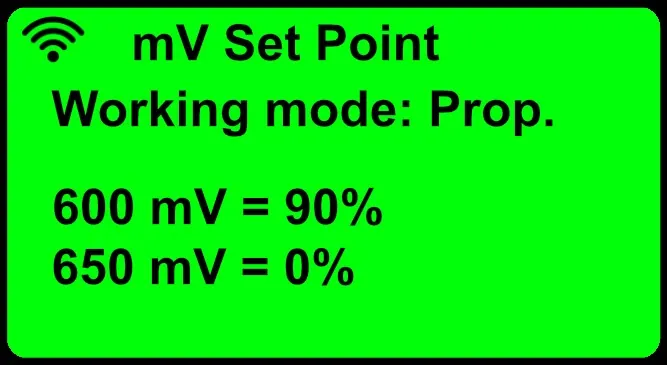

The required Redox potential (ORP) (SET POINT) is set: the pump measures it by means of a Redox electrode and progressively reduces the injection frequency as the set value approaches, stopping when the SET POINT is reached.
Models: WDpHRh, WDpHRhs

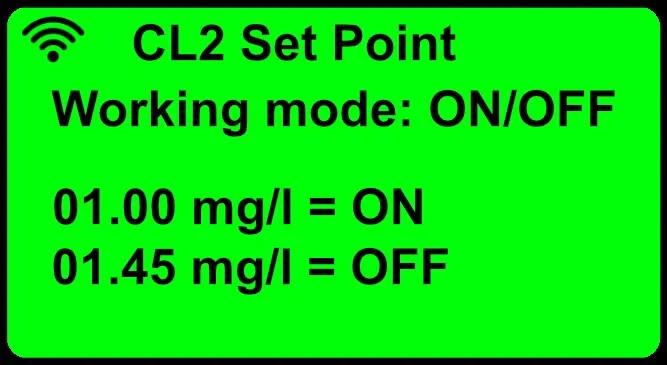

Proportional to free chlorine (open amperometric cell)

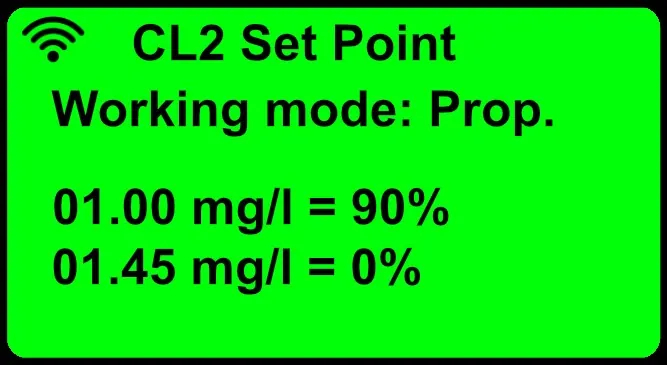

The required free chlorine concentration in mg/l (SET POINT) is set: the pump measures it by means of an open amperometric cell and progressively reduces the injection frequency as the set value approaches, stopping when the SET POINT is reached.
Models: WDpHCl Chlorine, WDpHCls
Proportional to free chlorine (closed amperometric cell)
The required free chlorine concentration in mg/l (SET POINT) is set: the pump measures it by means of a closed (membrane) amperometric cell and doses until the SET POINT is reached.
Models: WDpHCl Chlorine, WDpHCls

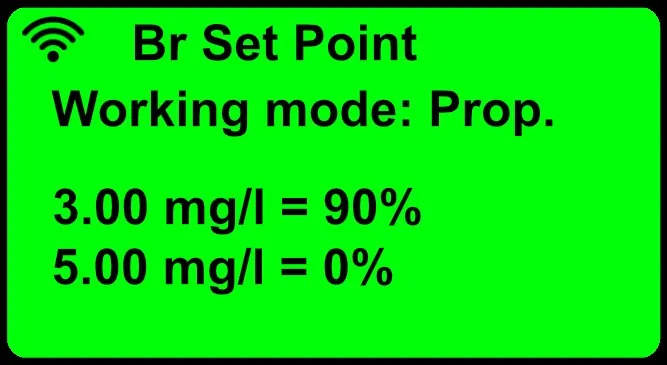

Proportional to free bromine
The required free bromine concentration in mg/l (SET POINT) is set: the pump measures it by means of a closed amperometric cell for bromine and doses until the SET POINT is reached.
Models: WDpHCl Bromine

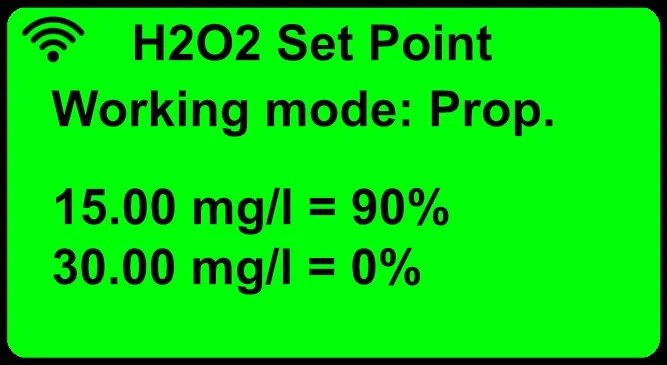

Proportional to hydrogen peroxide
The required concentration of free hydrogen peroxide in mg/l (SET POINT) is set: the pump measures it by means of a closed amperometric cell for peroxide and doses until the SET POINT is reached.
Models: WDpHCl Peroxide
Colour display

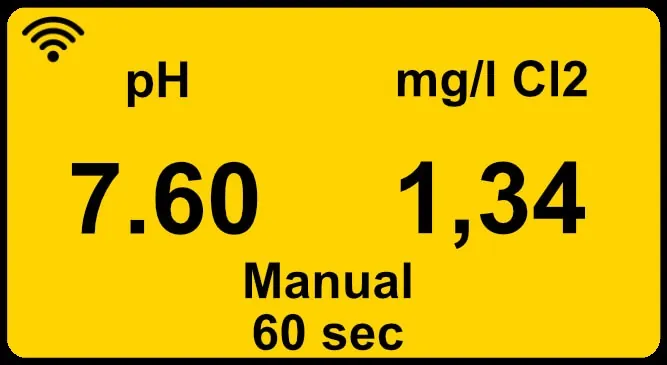

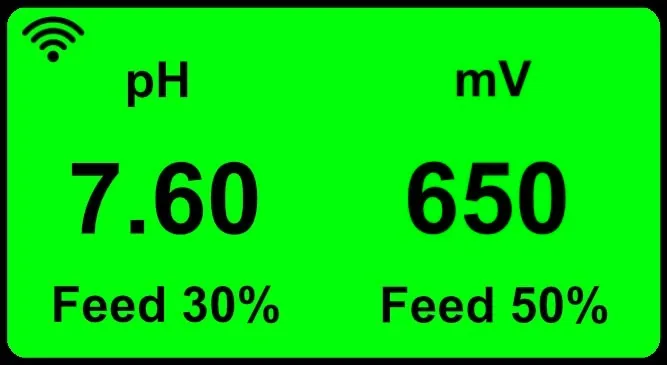

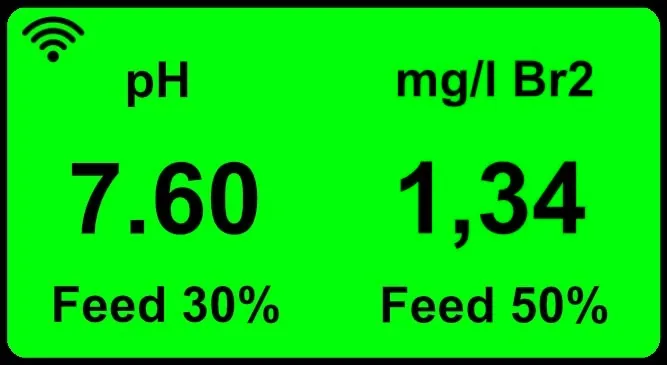

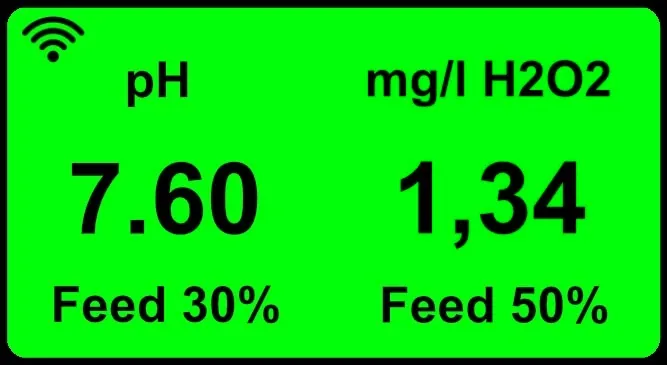

Colour-coded status indication
The display colour changes according to the operating status, so that an alarm can be recognised even from a distance. Below are the setting screens and the displays of all models.

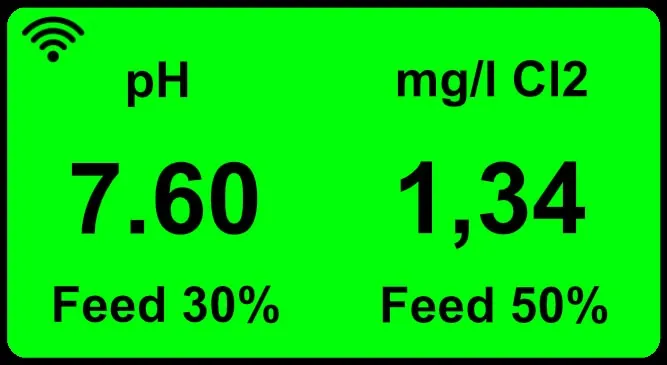

Green
Normal operation according to the set parameters, no active alarms.
Yellow
Non-blocking alarm, for example waiting for an external signal.

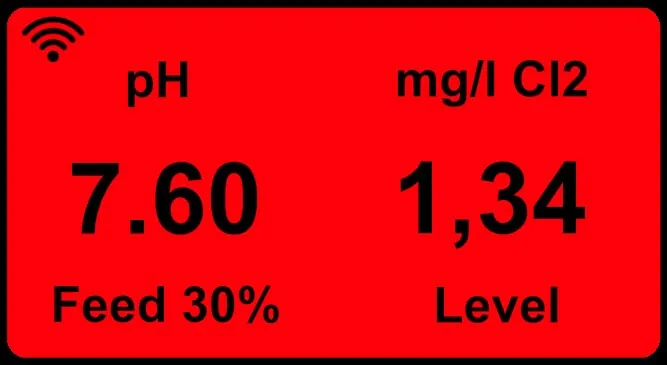

Red
Blocking alarm, for example the chemical in the tank running out.

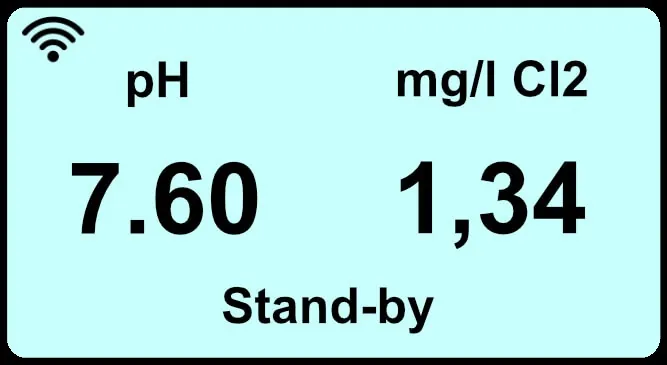

White
Pump stopped by an external control signal (stand-by).

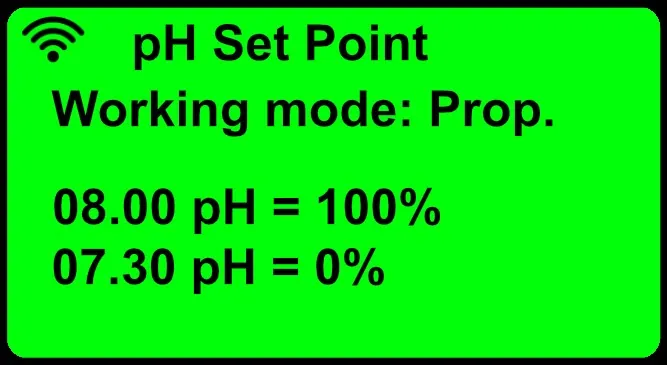

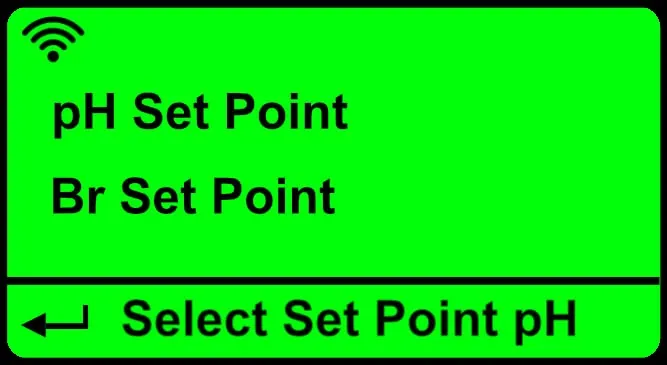

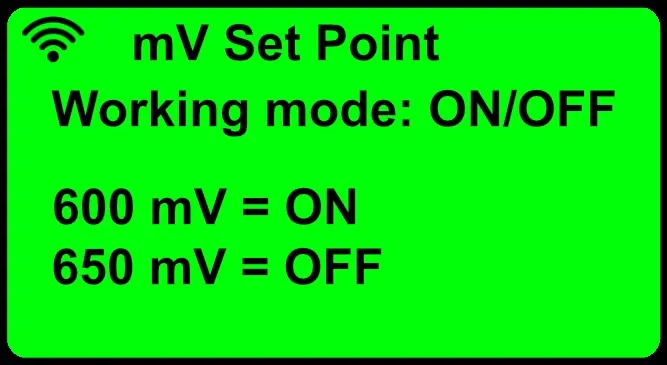

Settings from the display
Remote control
Remote control and remote supervision
The WD pumps support two-way remote control: from the cloud portal, via Wi-Fi, Ethernet or cellular network, settings can be changed, operation can be checked and alarms can be received, such as product depletion; alternatively, the pumps can be integrated into a PLC via Modbus RTU.
Wi-Fi Optional
Allows connection to the Nimbus cloud portal to change settings, check operation and receive alarms, such as the chemical running out.
Ethernet Optional
Allows connection to the Nimbus cloud portal via network cable to change settings, check operation and receive alarms.
Cellular network Optional
Allows connection to the Nimbus cloud portal via the cellular network to change settings, check operation and receive alarms.
Modbus RTU Optional
Integration into your PLC: all pump parameters can be managed from your control interface.
The NIMBUS portal
A single account brings together all registered installations, each with its own devices: the web portal, free of charge and with no subscription, can be accessed from PC, Mac, tablet and smartphone and allows every parameter to be both viewed and changed, with an encrypted connection and protected access.
Overview
On a single screen: probe readings, chemical levels, pump activation thresholds and active alarms, with the status of installations and devices (normal, warning, alarm, standby, not connected).
Installation map
Installations appear on an interactive map with their status and open with a click; for each one, the local weather conditions and temperature are also shown.
History and charts
Archive of measurements and alarms, available for consultation at any time with charts and numerical reports exportable in Excel format.
Alarms and notifications
Alarm thresholds for readings, dosing, faulty probe and out-of-range readings, with notification by e-mail or SMS depending on the communication system; a warning is also issued when an installation remains disconnected beyond the set time.
Set points and dosing
Remote modification of the set points, of the dosing pump activation thresholds and of the corresponding hourly flow rate.
Inputs and outputs
Status of relays, pulse outputs, digital inputs and current outputs, with the name assigned to each connection.
Maintenance calendar
Tasks are scheduled by installation or by device and assigned to technicians; a reminder is sent by e-mail two days before the due date. Each task is shown as scheduled, due, overdue or completed.
Team and permissions
The main account has full access and creates the technicians’ accounts, each enabled only for the assigned installations and devices; the last login and activity of each technician are visible.
Reports and activity log
Reports on devices, tasks and technicians, downloadable in PDF or CSV with the customer’s logo; the log keeps the history of operations and disconnections.
Customisation
Logo, main colour and light or dark theme; the tiles on the main screen can be rearranged by dragging them. Two installations can be displayed side by side for comparison.
Guided registration
Each device is added through a guided procedure: the model is recognised automatically and associated with the installation, together with the technician to be contacted.
PLC integration
As an alternative to the portal, the Modbus RTU or TCP/IP port allows integration into the plant supervision system.
Technical data
Performance and configurations
Performance varies with the working back-pressure (head) and with the characteristics of the chemical.
Manual air bleed
Suitable for most chemicals: the standard configuration for the most common applications.
| Code | Max pressure (bar) | Max flow rate (l/h) |
|---|---|---|
| WD 0706 | 7 | 6 |
| WD 0501 | 5 | 1 |
| WD 0310 | 3 | 10 |
Automatic air bleed
Required with chemicals that release gas (e.g. peroxides), to prevent the pump from becoming air-locked.
| Code | Max pressure (bar) | Max flow rate (l/h) |
|---|---|---|
| WAD 0307 | 3 | 7 |
Power supply options
- 230 VAC
Pump head materials
PVDF
Suitable for most acids, for peroxides and for sodium hypochlorite (chlorine).
PP
Suitable for sodium hydroxide (caustic soda).
Special versions
Special versions
In addition to the standard configuration, versions dedicated to particular applications are available; the performance of each is given in the technical data. The pages by application compare the suitable pumps of all the series.
WAD
Self-venting pump head for hypochlorite and hydrogen peroxide, which release gas: it vents the gas and prevents the pump from locking.
Technical support
Troubleshooting and error messages
In addition to dosing, the WD pumps also control the water: most messages therefore concern the process (product, flow, probe) rather than a pump fault.
Insight: the pump does not prime and does not dose →Display messages
| Message | Meaning | Action |
|---|---|---|
| LOW TANK | Chemical tank close to running out. | Check and restore the chemical level in the tank. |
| NO FLOW | The flow contact has stopped the pumps. | Check that there is water flow in the probe holder. |
| FEED LIMIT | Maximum dosing time exceeded without reaching the set point. | Check the pump flow rate and the actual supply of chemical. |
| PROBE FAIL | Probe reading unchanged for too long: the probe is probably damaged. | Check the probe, clean or recalibrate it; if the problem persists, replace it. |
| WAIT pH | pH has priority: the second dosing waits until the pH returns to the correct values. | Normal operating condition; to disable it, change the priority option. |
| DELAY | Dosing suspended: the restart delay countdown is in progress. | Normal operating condition; if not required, reduce the delay in the parameters. |
| POWER SUPPLY OUT OF RANGE | Supply voltage outside the permitted limits. | Check the mains voltage. |
| FEED ON · FEED OFF · OK | Normal operating status: pump dosing, pump stopped, or value at set point. | No action required. |
Green display: normal operation; yellow: warning (for example an active delay); red: alarm, with details available under STATUS; white: stand-by. On WD models with chlorine, if the message POWER SUPPLY OUT OF RANGE appears, also check fuse F2.
Safety alarms
Always enable the maximum dosing time alarm (0 – 100 minutes) and the blocked probe alarm (100 – 254 minutes), and set dosing to stop in the absence of flow: without these protections there is a risk of dangerous overdosing.
Chlorine calibration
At first start-up or with a new probe, carry out the full calibration (zero and second point, with a DPD photometer); on a monthly basis the quick calibration on the second point is sufficient. If the controller reports an error, repeat the calibration.
Factory settings
Resetting the controller restores all factory values, including the password (0000): CHECKSUM ERROR appears; press the knob and repeat calibrations and programming. If a custom password has been lost, contact our technical support service to unlock the controller.
If the problem persists, contact us. Before sending the pump for servicing, empty the pump head of chemical and dry it.
Summary
Main features
Level control
The pump is supplied with a low-level probe for the tank: when the chemical runs out, it shows the alarm on the display and activates the corresponding output.
Models: WDpHCls, WDpHRhs
Independent adjustment
The flow rate can be adjusted independently for each pump (or between the pump and the salt chlorinator), so that the correct quantities of pH corrector and disinfectant are dosed according to the probe measurements.
Separate set points
One SET POINT dedicated to pH and one dedicated to the disinfectant (free chlorine, bromine, hydrogen peroxide or Redox).
Dosing priority
Priority can be given to pH control, with disinfectant control starting only afterwards, to the benefit of its effectiveness.
Level control (two tanks)
The pump is supplied with low-level probes for the tanks: when a chemical runs out, it shows the alarm on the display and activates the corresponding output.
Models: WDpHCl Chlorine, WDpHCl Peroxide, WDpHCl Bromine, WDpHRh
Salt chlorinator control
Instead of the sodium hypochlorite dosing pump, a Schuko socket is provided for connecting the salt chlorinator that produces the chlorine: the controller keeps it running until the set SET POINT is reached.
Models: WDpHCls, WDpHRhs
Technical advice
Tell us about your application: our technical staff will recommend the most suitable model, configuration and accessories.
