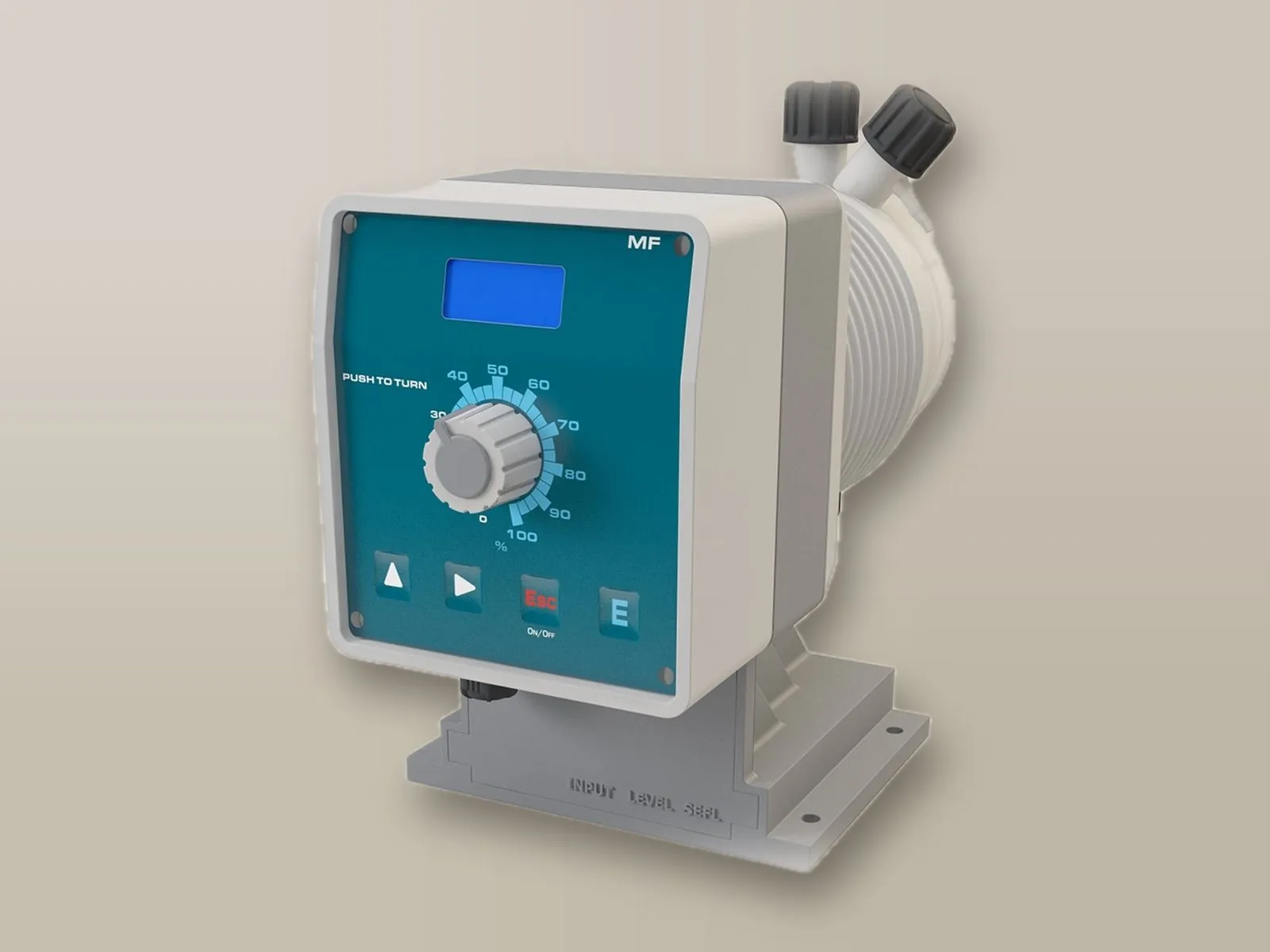

AMS AC Series with compressed air
For dosing large quantities of chemicals in industrial applications: up to 220 l/h.
Pumps · By application
Compressed-air pumps
Where a compressed air network is available, compressed-air operated pumps dose and transfer chemicals: from dosing large quantities in industrial applications to car washes, through to the transfer of liquids and the emptying of drums. For details of the models, visit the series pages: AMS, T and TMS, R, double diaphragm and drum pumps.
- AMS AC, T AC and TMS AC up to 230 l/h
- RAC, RACV and RACP Series for car washes
- Double diaphragm up to 1,000 l/min
- Air-operated drum pumps
230l/hMaximum flow rate of the dosing pumps (T AC and TMS AC)
1,000l/minDouble diaphragm
4Pump families
The pumps
Compressed-air pumps
For details of the models in each series, visit its page using the link at the bottom of the card.

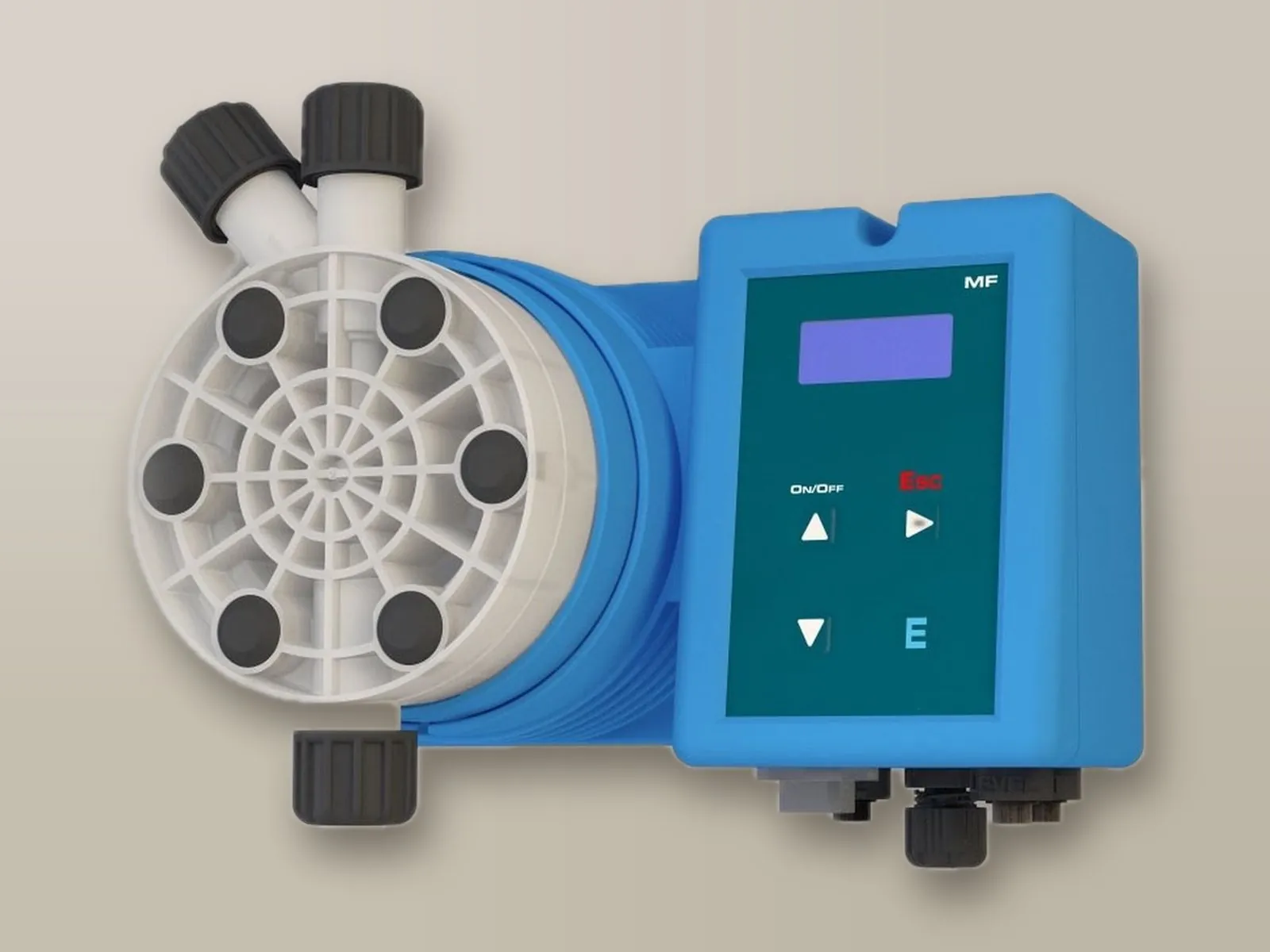

T AC and TMS AC Series with compressed air
For dosing large quantities of chemicals in industrial applications: up to 230 l/h.

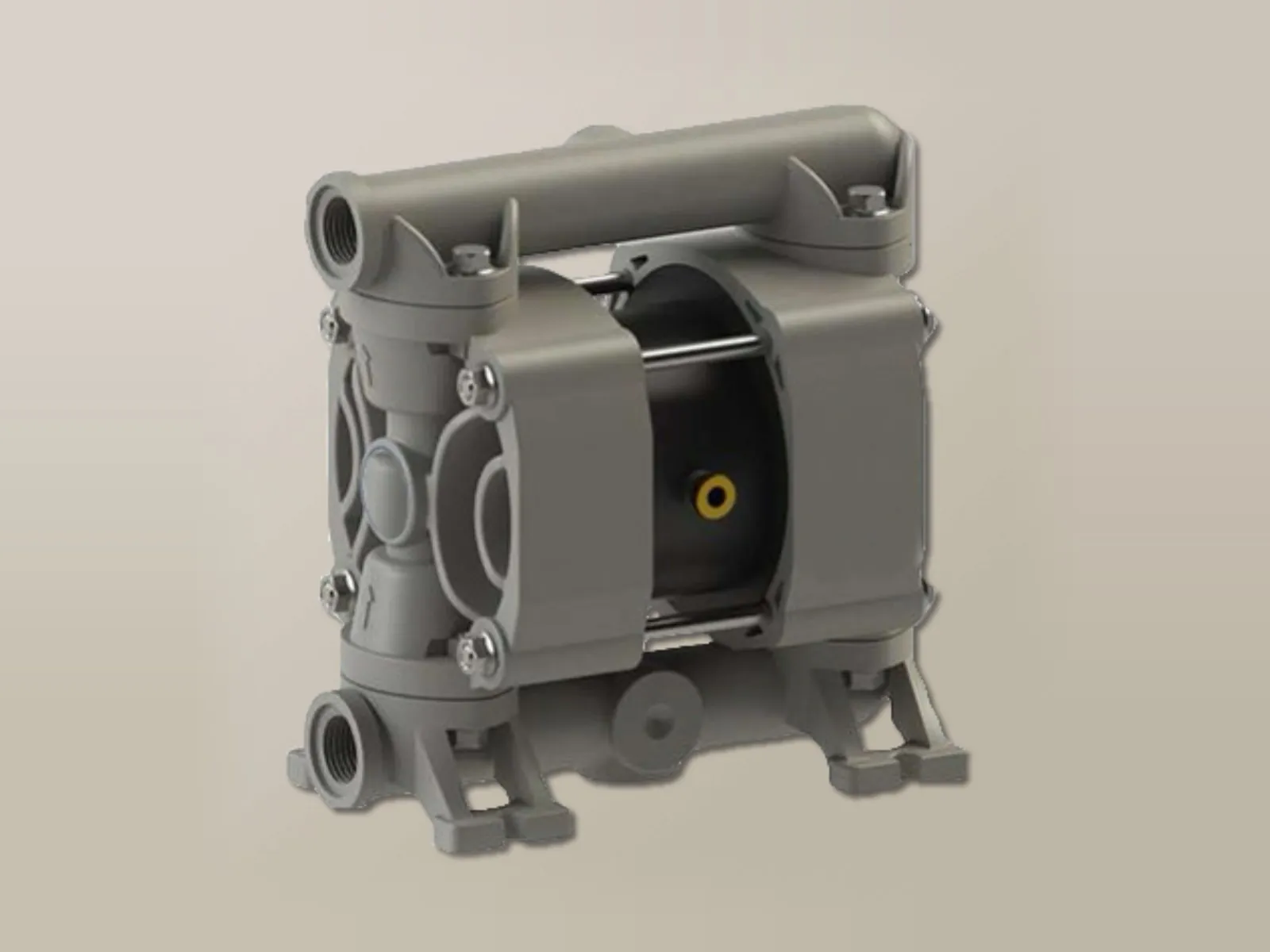

Air-operated double diaphragm pumps
For transferring aggressive, corrosive or viscous liquids or liquids containing suspended solids: self-priming, they can be installed above the liquid level, below it (flooded suction) or submerged, and are supplied with compressed air at 8 bar.

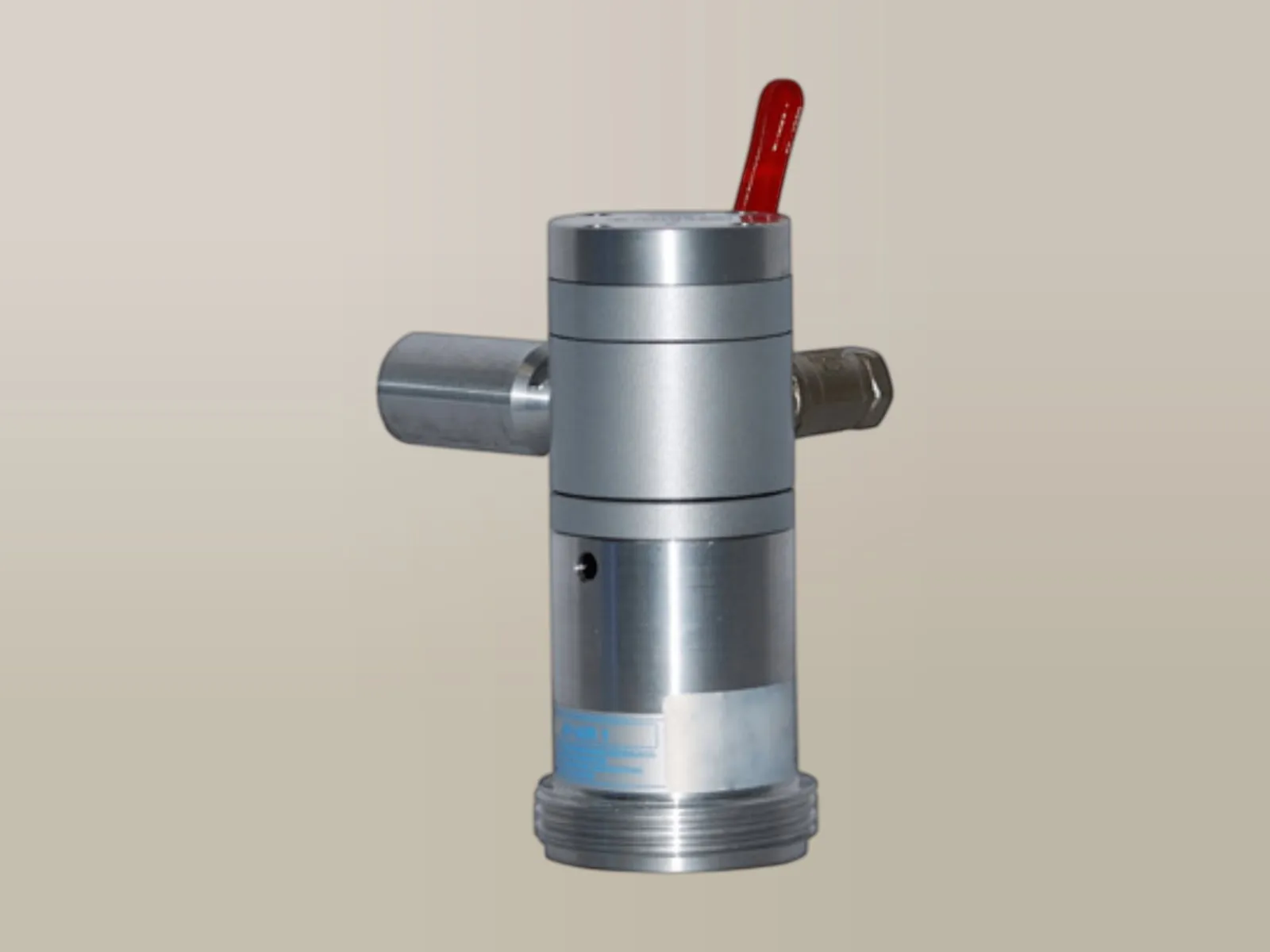

Drum pumps with air motor
Lightweight, easy-to-handle drum pumps with a 300 W air motor supplied with compressed air up to 6 bar.
R Series
R Series compressed air dosing pumps
Compressed air operated diaphragm dosing pumps, suitable for dosing in car wash installations. They require compressed air free of lubricant and condensate, between 6 and 8 bar.

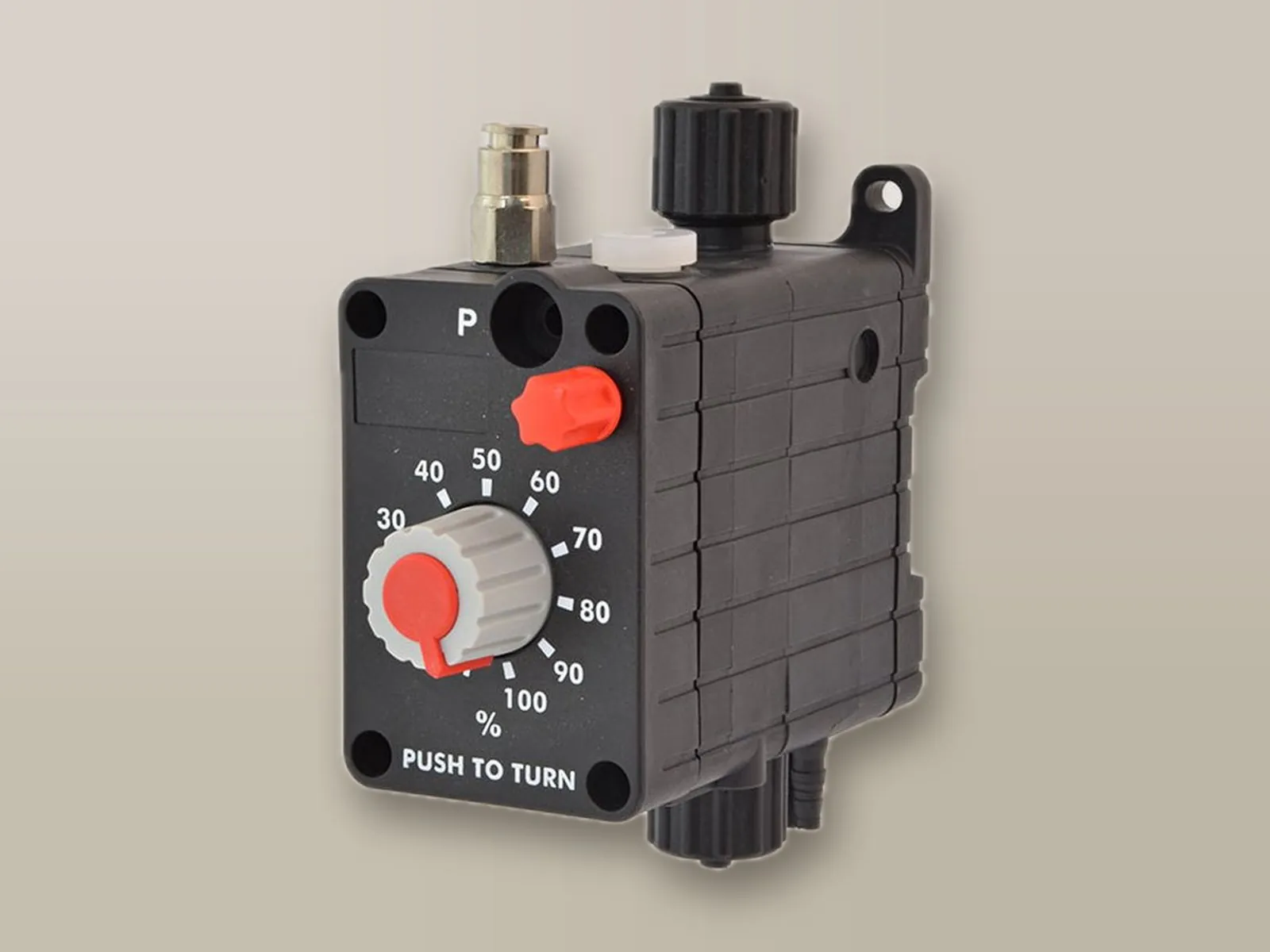

RAC Series
Compressed air dosing pump.

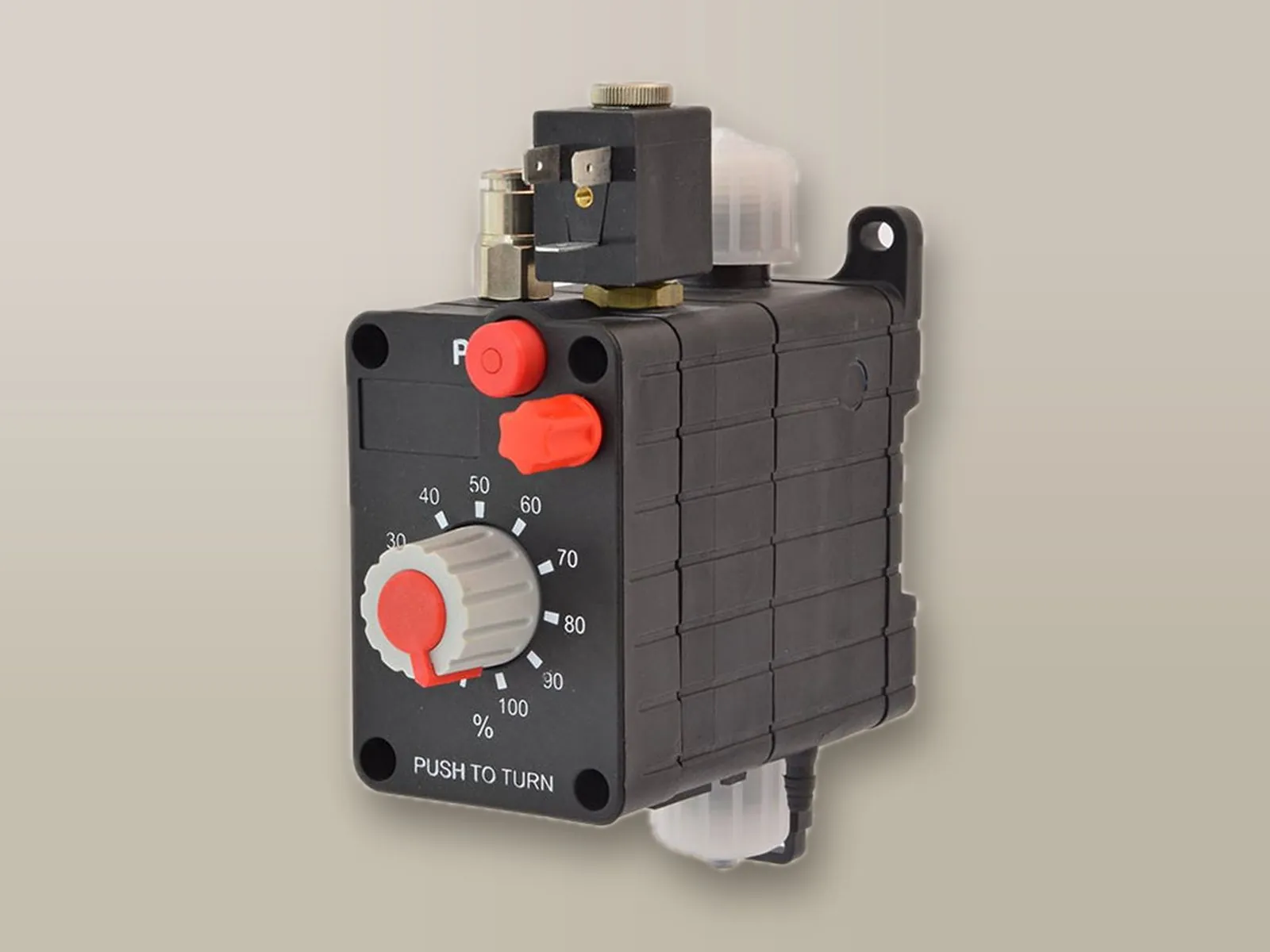

RACV Series
Compressed air dosing pump with control solenoid valve.

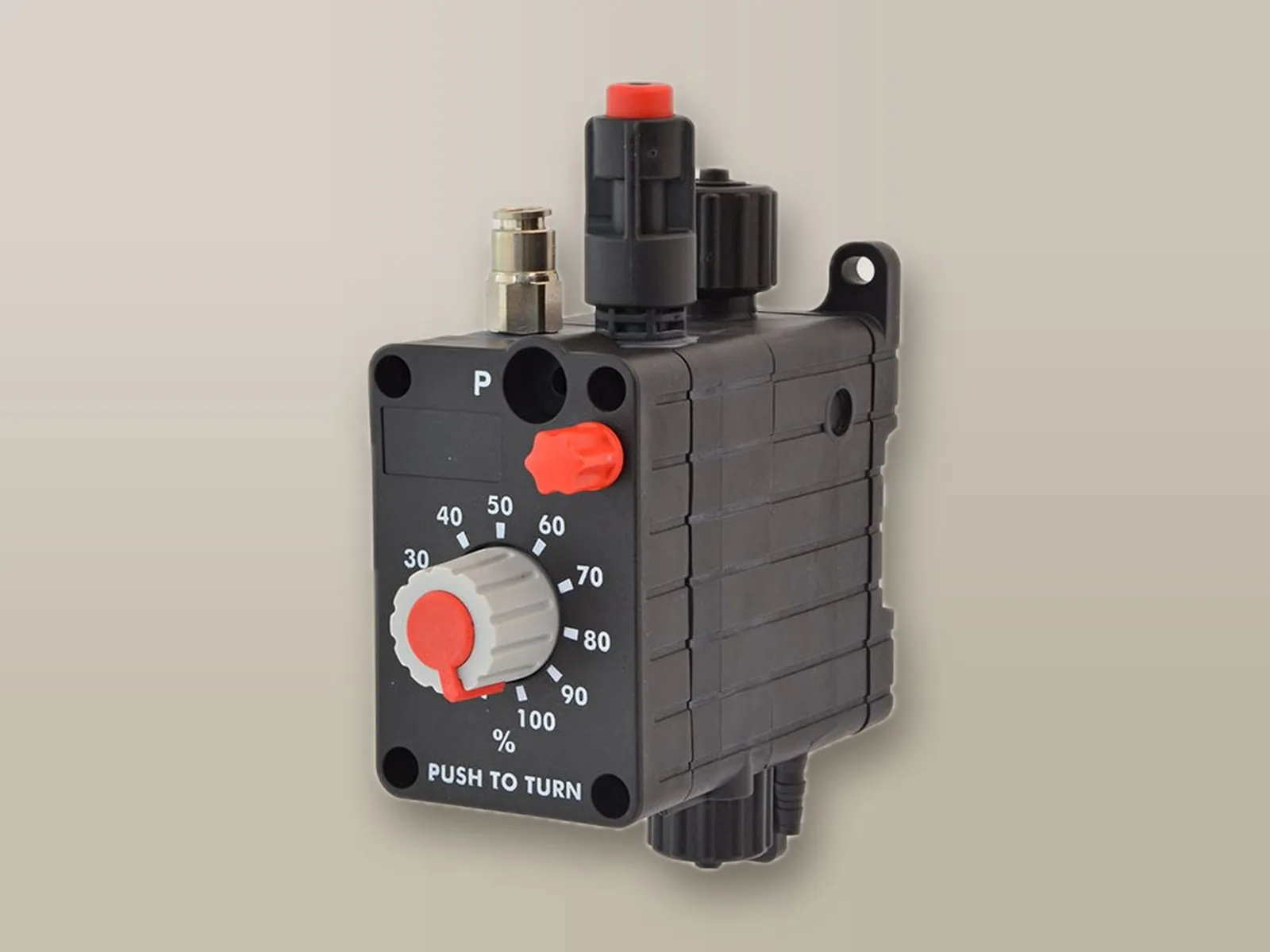

RACP Series
Compressed air dosing pump with button for manual priming.
The R Series →
Compressed air
AMS AC Series
Performance
For dosing large quantities of chemical in industrial applications.
| Max pressure (bar) | Max flow rate (l/h) |
|---|---|
| 10 | 50 |
| 5 | 140 |
| 0 | 220 |
Compressed air
T AC and TMS AC Series
Performance
For dosing large quantities of chemical in industrial applications.
| Max pressure (bar) | Max flow rate (l/h) |
|---|---|
| 10 | 50 |
| 5 | 150 |
| 0 | 230 |
Choosing the pump
Tell us the product, the required flow rate and the available air pressure: we will recommend the most suitable pump.
