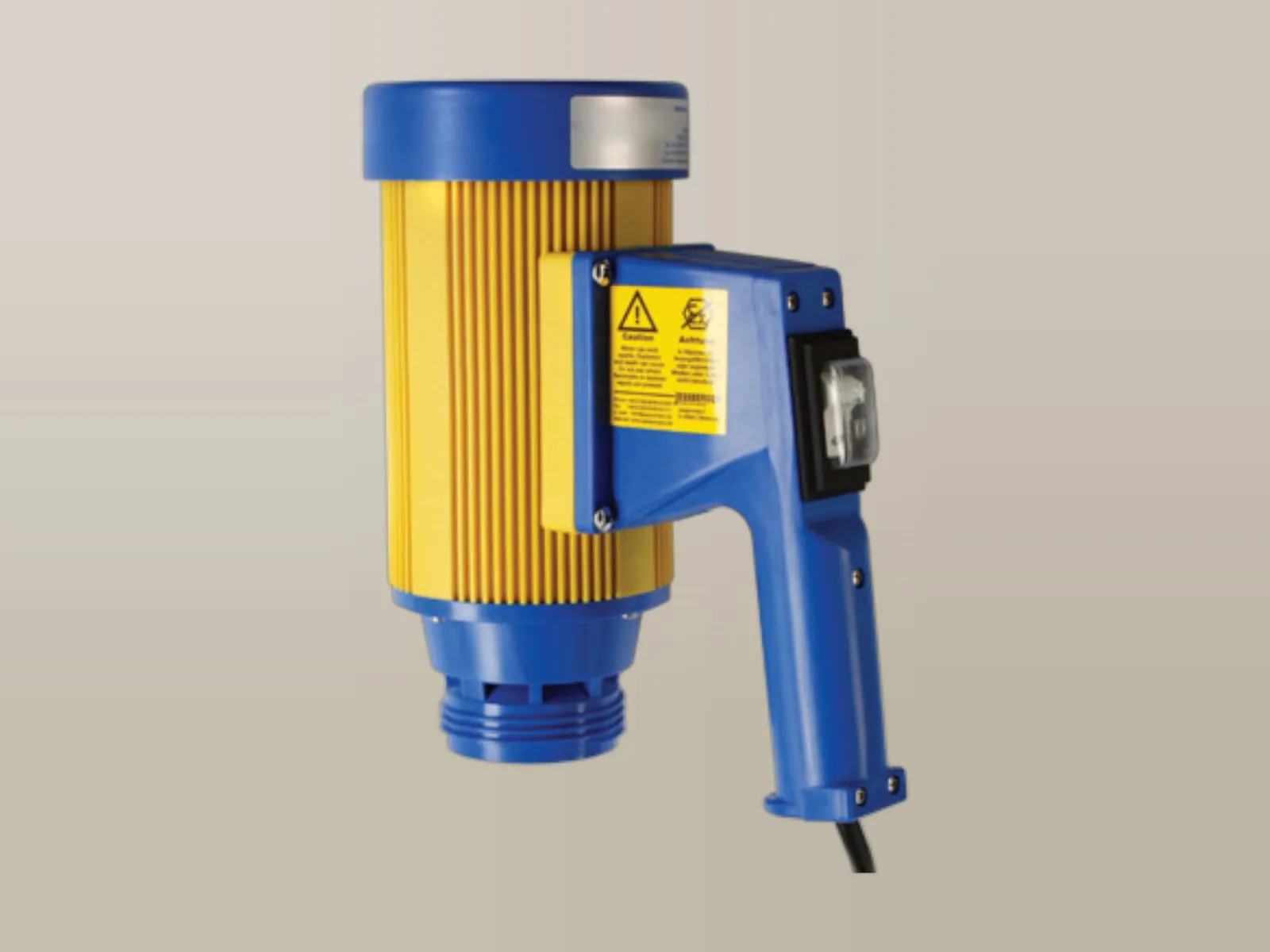

Electric motor
230 VAC 50/60 Hz, double-insulated (class 2), IP 24 protection rating.
Transfer pumps
Drum pumps
Lightweight, easy-to-handle, high-power pumps for the economical and safe transfer of medium-viscosity, neutral, aggressive or flammable liquids. Available with electric or air motor.
- Electric or air motor
- Explosion-proof version available
- Tubes in PP, PVDF, aluminium or AISI 316
- Up to 112 l/min
112l/minMaximum flow rate
16mMaximum head
1,000cPMaximum viscosity
1,200mmTube length
2 models
Motors
High-efficiency electric motors, internally or externally ventilated, also available in an explosion-proof version, or an air motor.
Power supply: 230 VAC 50/60 Hz
Air motor
Maximum pressure 6 bar, with silencer.
Power supply: compressed air, max 6 bar
Tubes
Immersion tube materials
The immersion tube material is chosen according to the liquid to be transferred.

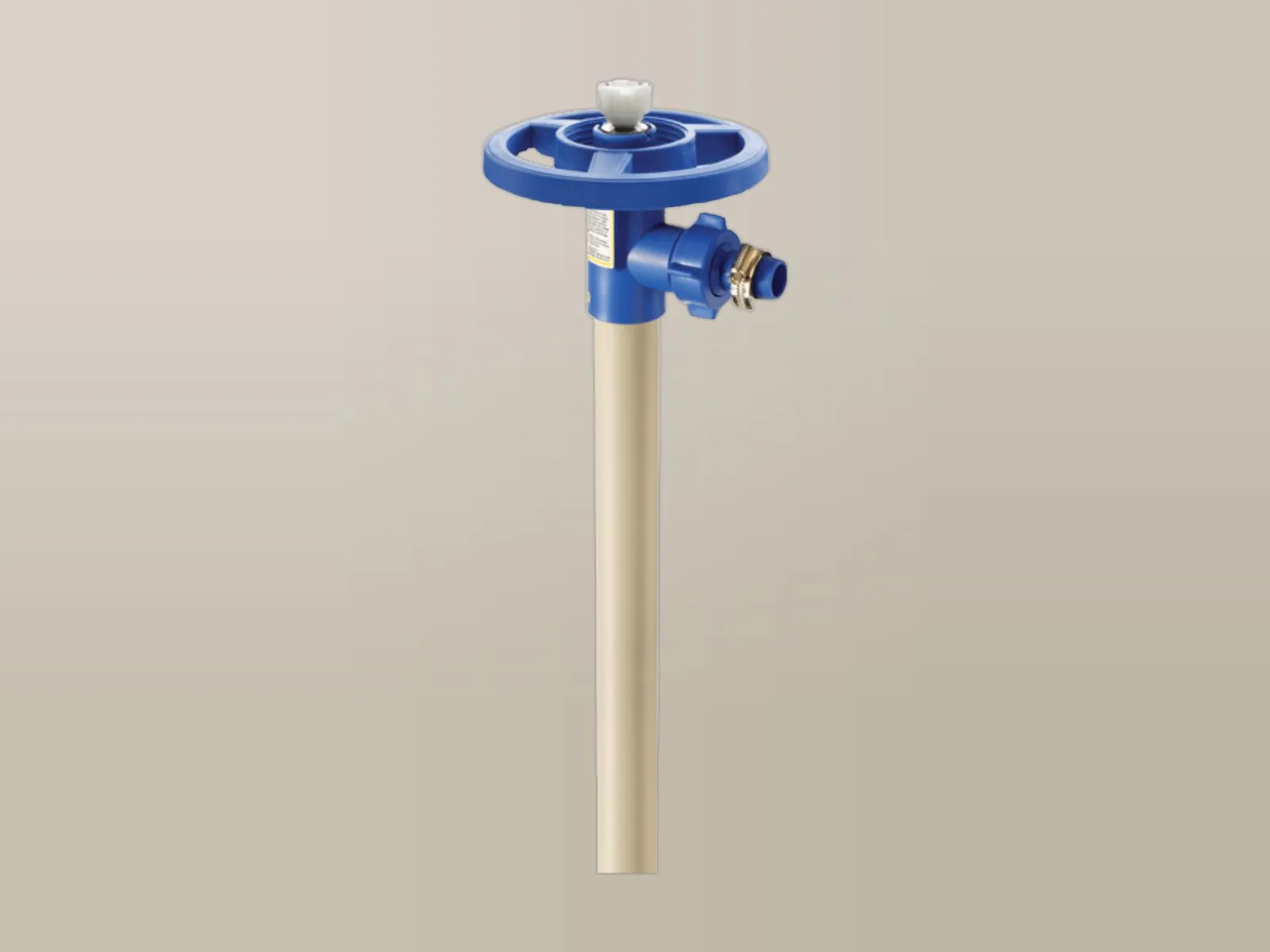

PP
For aggressive liquids such as detergents, acids and alkalis, up to 50 °C.

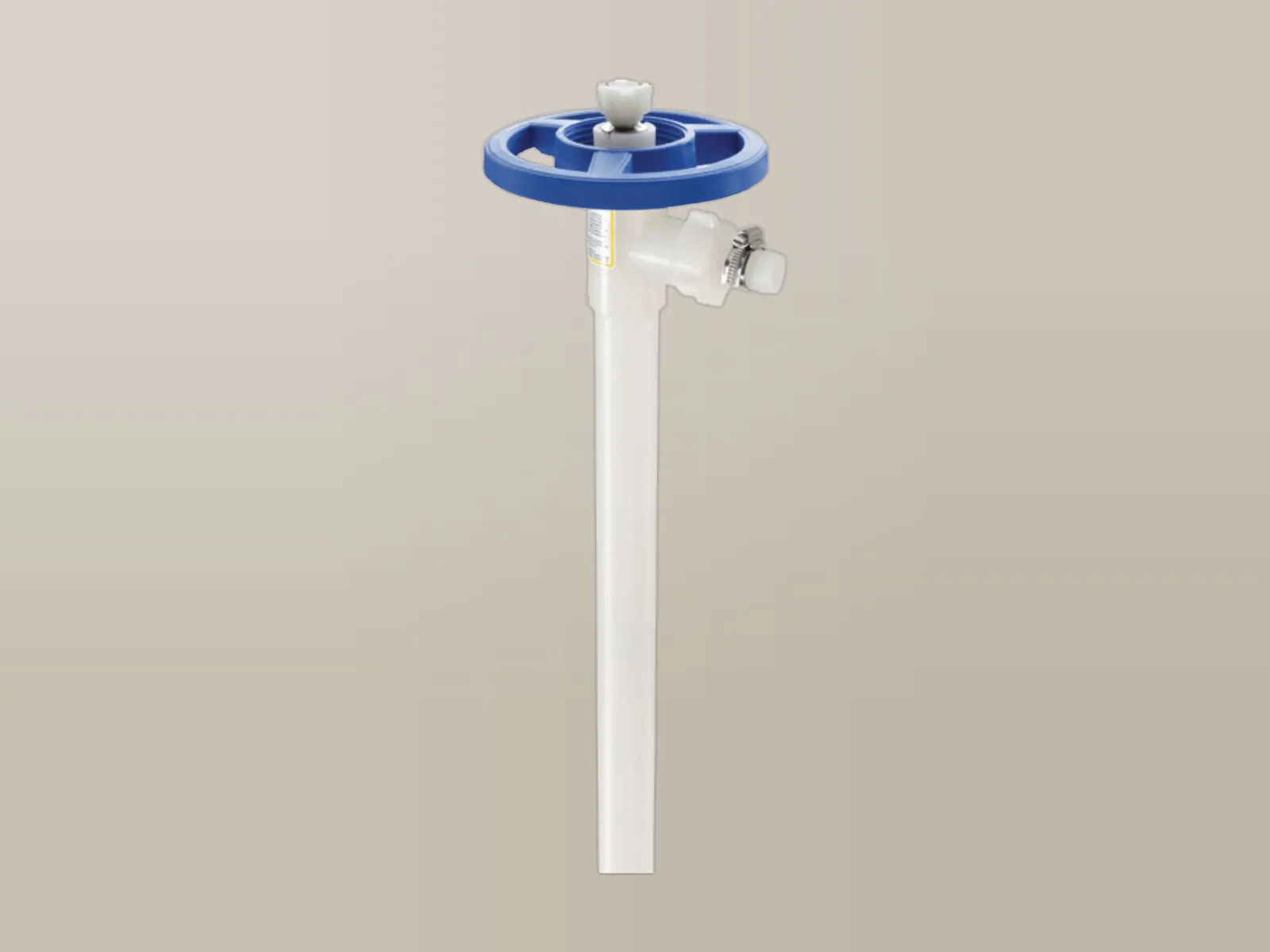

PVDF
For highly aggressive fluids or fluids at temperatures between 50 and 90 °C.

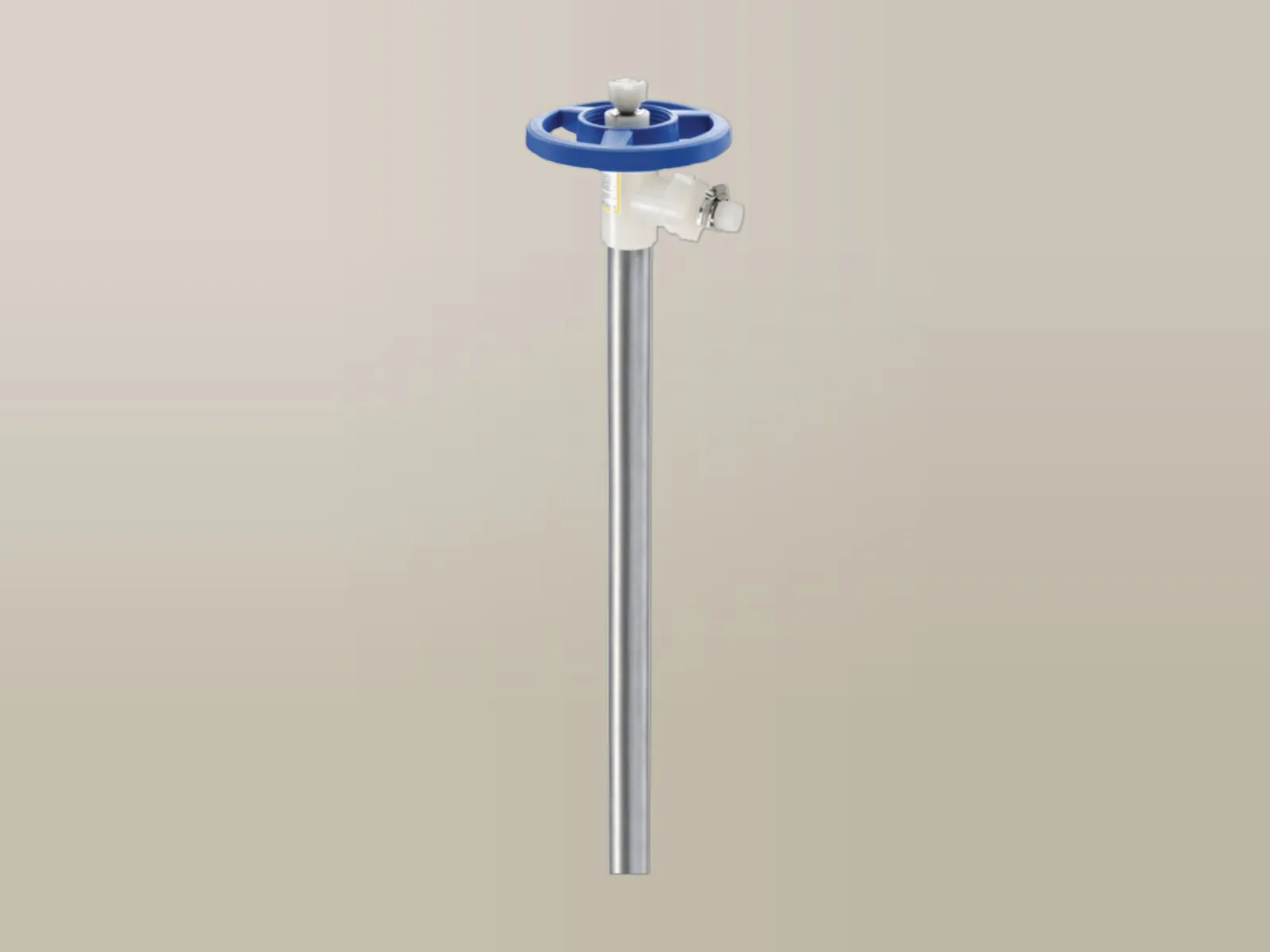

Aluminium
For hydrocarbons.

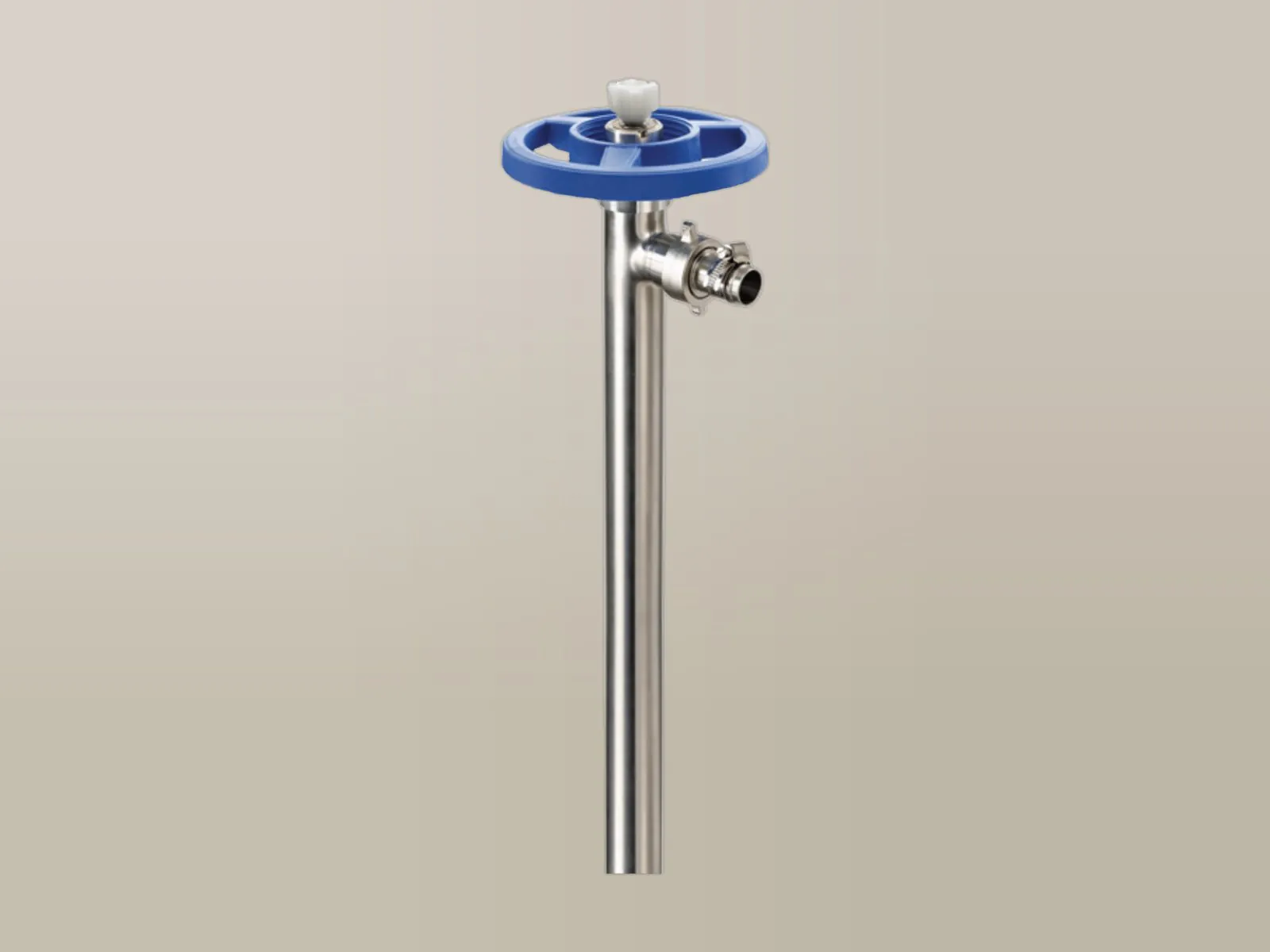

AISI 316
For flammable liquids such as petrol or solvents, and for food liquids.
Technical data
Performance and configurations
Performance
Performance according to the type of motor.
| Motor (W) | Max flow rate (l/min) | Max head (m) | Max viscosity (cP) | Max density |
|---|---|---|---|---|
| Electric 640 | 93 | 11 | 600 | 1.5 |
| Electric 825 | 112 | 16 | 1,000 | 1.9 |
| Air 300 | 78 | 9 | 400 | 1.3 |
Immersion tubes
Available lengths and diameters, in PP, PVDF, aluminium or AISI 316.
| Tube diameter (mm) | Tube length (mm) |
|---|---|
| 41 | 700 |
| 41 | 1,000 |
| 41 | 1,200 |
Power supply options
- 230 VAC
- Compressed air
Technical advice
Tell us the liquid to be transferred: we will recommend the most suitable motor and tube.
