The pump head
The PMMA pump head is suitable for medium- and high-viscosity substances: its passages and valves allow the viscous product to fill the dosing chamber.
Dosing pumps · By application
Pumps for polymers
Polymers and high-viscosity products, from 8,000 up to 50,000 cPs, require pumps with a dedicated PMMA pump head and performance suited to the viscosity of the liquid. For low-viscosity liquids, up to 8,000 cPs, pumps for low-viscosity liquids are used. For details of the models, visit the series pages: AMS and T and TMS.
- From 8,000 to 50,000 cPs
- PMMA pump head
- AMS P, T P and TMS P
50,000cPsMaximum viscosity
40l/hMaximum flow rate (AMS P)
8barMaximum pressure (AMS P)
2Series
Why
Dosing a polymer
Fewer strokes per minute
As the viscosity of the product increases, a lower number of strokes per minute is recommended, giving the liquid time to fill the pump head.
Flow rate
The nominal flow rate is measured with water at room temperature: with viscous products it must be checked with the product being dosed.
The pumps
Pumps for polymers
For details of the models in each series, visit its page using the link at the bottom of the card.

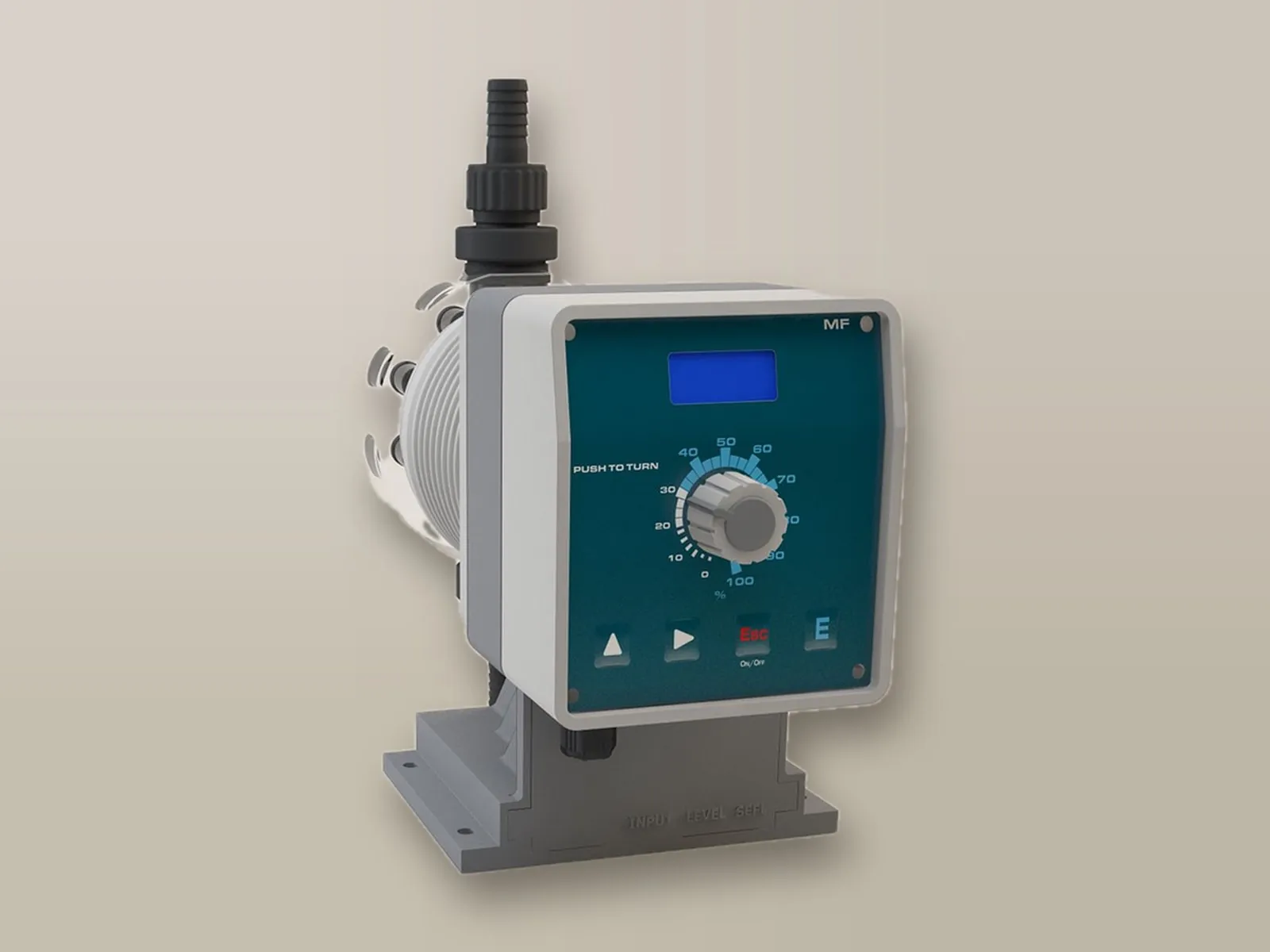

AMS P Series
PMMA pump head for viscous liquids up to 50,000 cPs, with the electronic adjustment of the frequency and the mechanical adjustment of the volume of each injection of the AMS series.

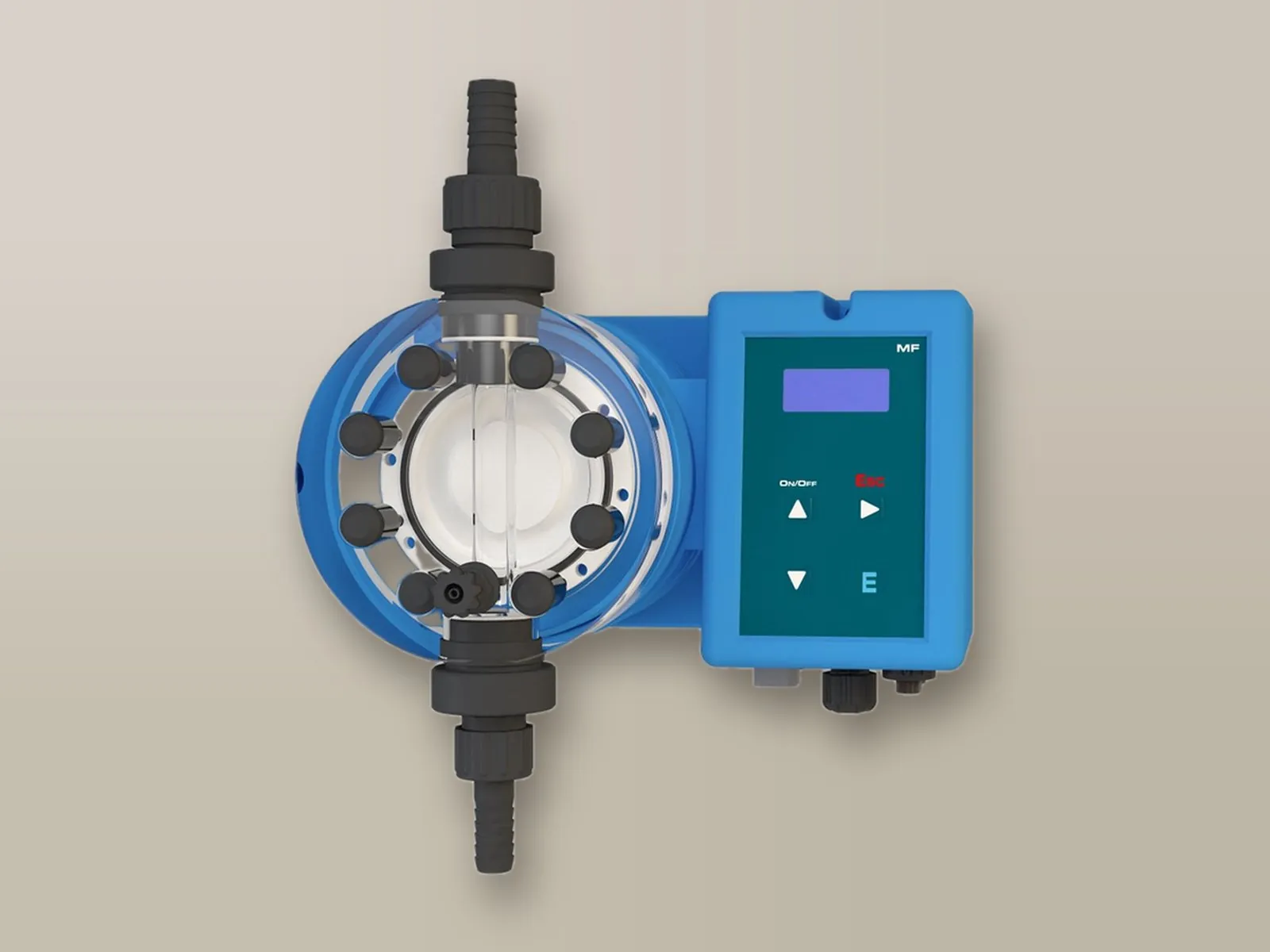

T P and TMS P Series
PMMA pump head for viscous liquids up to 50,000 cPs, with the electronic adjustment of the injection frequency of the TMS series.
For polymers
AMS P Series
Performance
For chemicals with a viscosity between 8,000 and 50,000 cPs.
| Max pressure (bar) | Max flow rate (l/h) |
|---|---|
| 8 | 2 |
| 6 | 4 |
| 4 | 10 |
| 4 | 25 |
| 1 | 40 |
Nominal flow rate measured with water at room temperature.
For polymers
T P and TMS P Series
Performance
For chemicals with a viscosity between 8,000 and 50,000 cPs.
| Max pressure (bar) | Max flow rate (l/h) |
|---|---|
| 6 | 1 |
| 4 | 3 |
| 2 | 8 |
| 1 | 20 |
| 0 | 25 |
Nominal flow rate measured with water at room temperature.
Installation
Installation and priming
Short suction line
Pump close to the tank, with a short suction tube, without loops, and of a diameter suited to the product.
Priming
With viscous products, priming can be assisted with a 20 cc syringe applied to the purge valve.
Up to 8,000 cPs
For less viscous products, pumps for low-viscosity liquids are used.
Pumps for low-viscosity liquids →Choosing the pump
Tell us the polymer to be dosed, its viscosity, the flow rate and the back-pressure: we will recommend the most suitable pump.
