Mixing

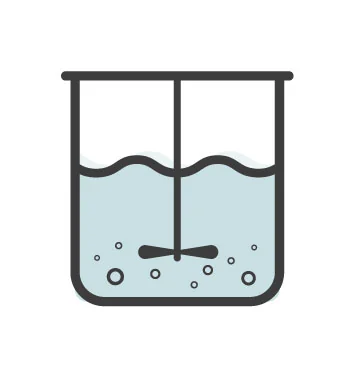

Dosing and initial homogenisation of the powder with the preparation water.
Production and dosing
TETRAMIX
A modular, expandable and fully automatic system for the continuous preparation of polyelectrolyte solutions from dry polymers. Designed for municipal and industrial wastewater treatment plants, in sedimentation, clariflocculation and sludge dewatering processes.
- From 1,500 to 6,000 l/h
- From 1 to 4 tanks, expandable
- Brushless motors and radar level sensors
- 7" touch HMI, Ethernet TCP/IP
6,000l/hMaximum output
4Tanks at most
30 – 60minMaturation
2,500mPasMaximum viscosity
How it works
A continuous process in four stages
Maturation
Reaction and stabilisation of the mixture: 30 – 60 minutes for powder.
Storage
Controlled storage of the solution until use.
Withdrawal
Accurate and regular delivery of the solution.
Modular
Modular configuration
An independent master tank and up to three additional modules, joined by rectangular flanges with gaskets and M8 screws: a robust and quick assembly, adaptable to different dosing and storage requirements.

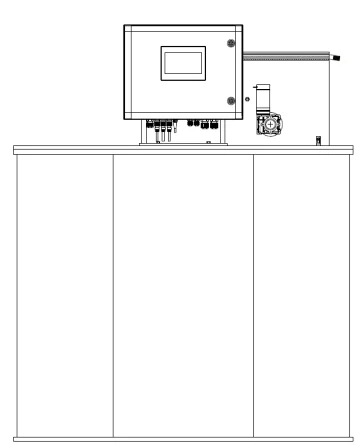

Master tank
With powder feeder, mixer and control panel: in the single-tank configuration it prepares up to 1,500 l/h.

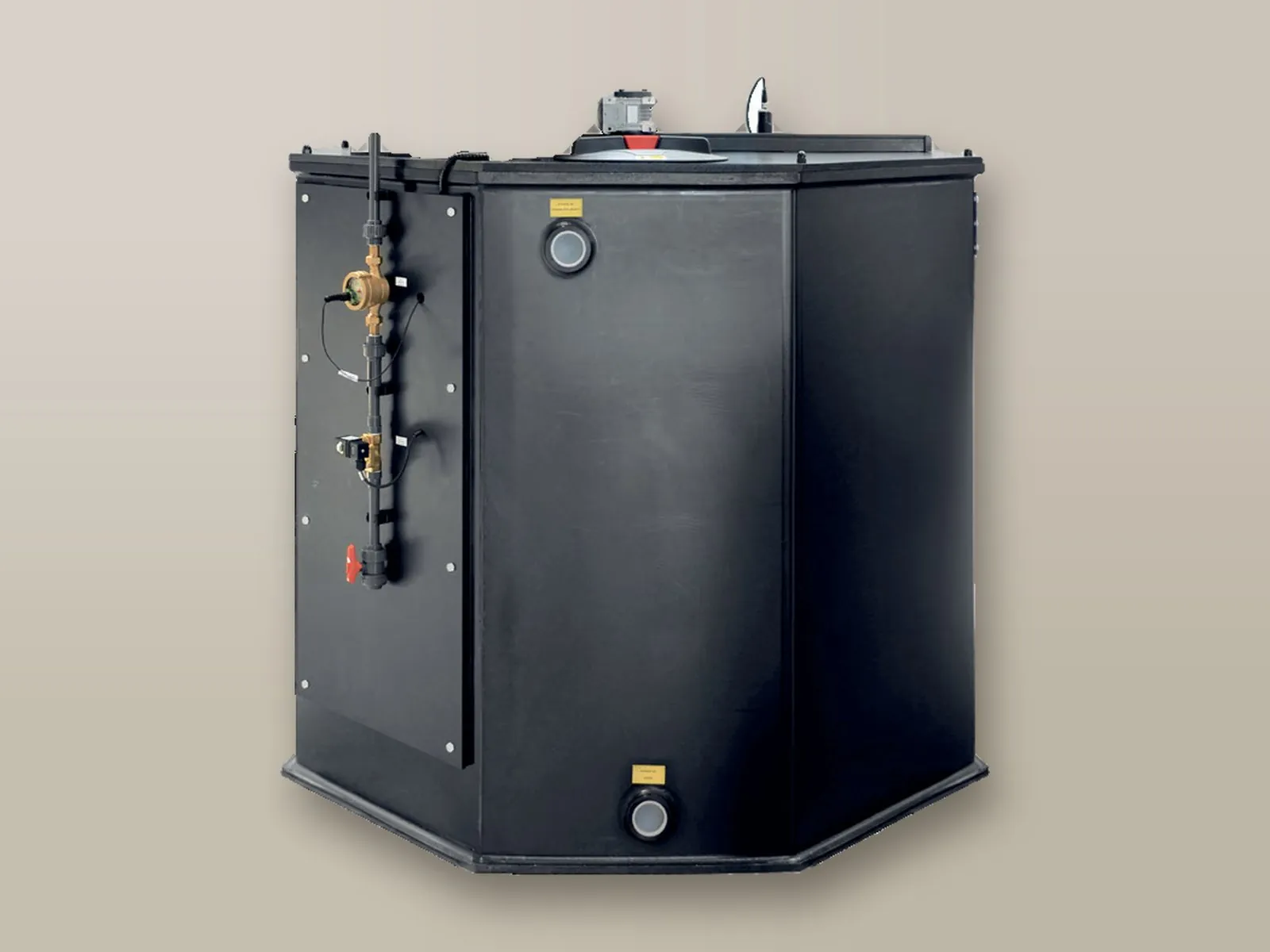

Additional tanks
Each module increases the volume available for maturation and storage, up to 4 tanks and 6,000 l/h.

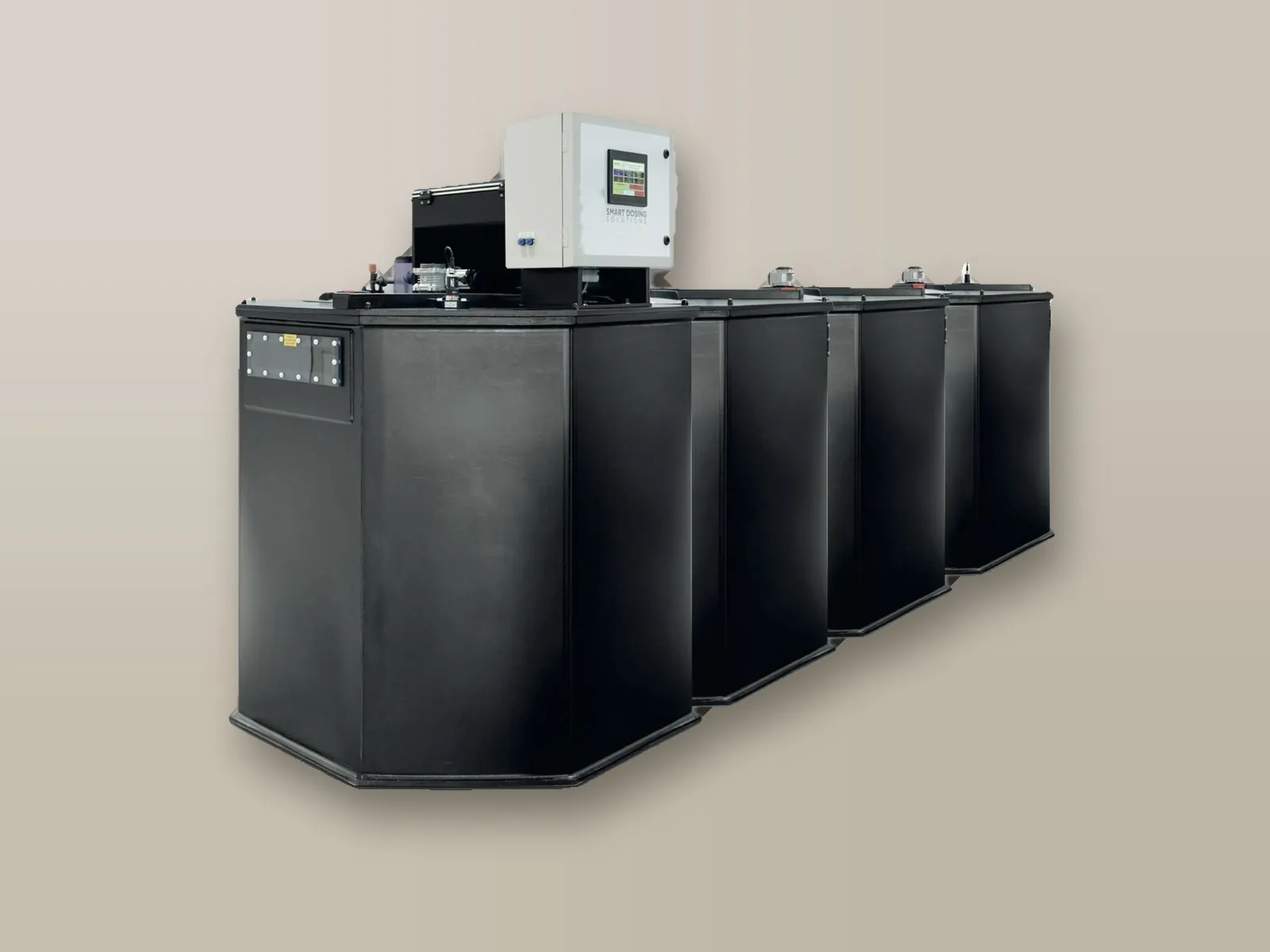

Up to 4 tanks
The PLD 6000-4 configuration: master tank and three modules in line, for a total volume of 6,808 litres.
Advantages
Main features
Automatic preparation
Fewer manual operations and preparation errors: ready-to-use solution, continuous process and consistent quality.
Product effectiveness
Optimal hydration and activation of the polyelectrolyte, in powder or emulsion form.
Modularity
An independent master tank and additional modules, joined by rectangular flanges with gaskets and M8 screws: a robust and quick assembly.
Efficiency
Less product waste, low energy consumption thanks to the brushless motors, simplified maintenance.
Construction materials
HDPE tanks, PPH feeder, PVC circuits, AISI 304 steel parts; 2" drain fittings.
Safety
Radar level probes, integrated safety devices and a hermetically resealable powder container to protect the operator.
Components
System components
Feed screw

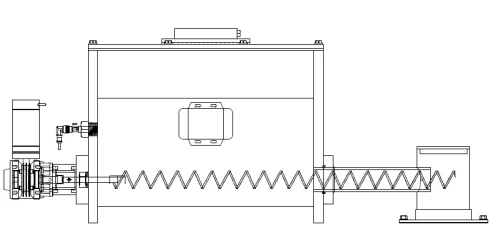

PPH powder feeder with coated screw, driven by a brushless motor controlled from the HMI; 35-litre hopper with vibrator (expandable on request), radar minimum powder level; concentration adjustable from 0.05 to 0.5%.
Preparation water
Ultrasonic flow meter (4-20 mA), shut-off solenoid valve and regulating valves; radar measurement of the solution level.
Control panel

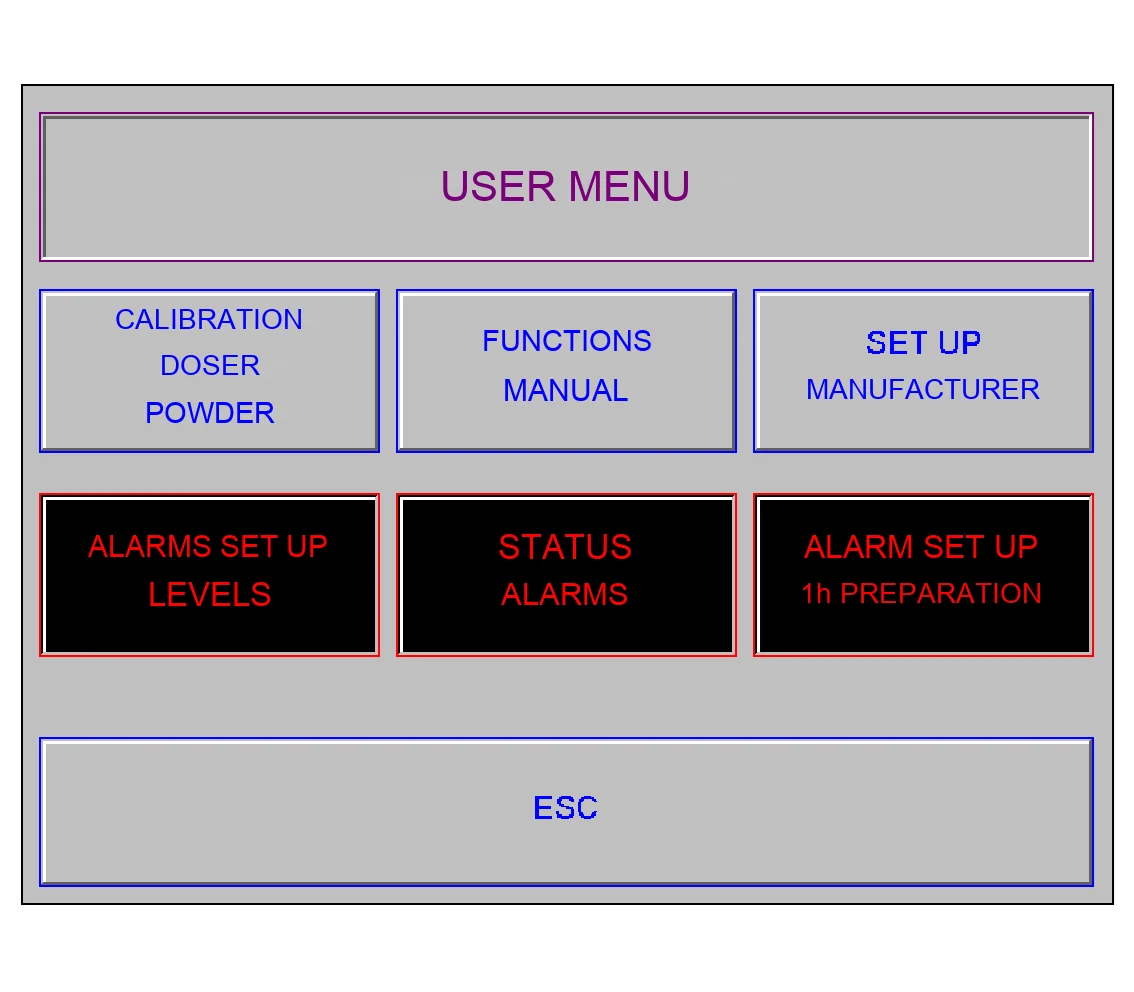

7" touch screen HMI, Ethernet TCP/IP communication, ABS IP65 enclosure.
Mixer with L1000 three-phase 400 W brushless motor and 4-blade 400 mm propeller: precise speed control and reduced consumption. Alarms: emergency stop, low water flow, minimum solution level, maximum level (H), overflow (HH).
Technical data
Data sheet
Models
| PLD 1500-1 | PLD 3000-2 | PLD 4500-3 | PLD 6000-4 | |
|---|---|---|---|---|
| Tanks | 1 | 2 | 3 | 4 |
| Total volume | 1,702 l | 3,404 l | 5,106 l | 6,808 l |
| Output at 45 minutes | 1,875 l/h | 3,750 l/h | 5,625 l/h | 7,500 l/h |
| Output at 60 minutes | 1,500 l/h | 3,000 l/h | 4,500 l/h | 6,000 l/h |
| Dimensions (W × D × H) | 1,400 × 1,400 × 1,200 mm | 2,800 × 1,400 × 1,200 mm | 4,200 × 1,400 × 1,200 mm | 5,600 × 1,400 × 1,200 mm |
The time (45 or 60 minutes) is the maturation time of the solution.
General data
| TETRAMIX | |
|---|---|
| Solution concentration | 0.05 – 0.5 % |
| Maximum viscosity | 2,500 mPas |
| Hopper | 35 l (expandable on request) |
| Materials | HDPE, PPH, PVC, AISI 304 |
| Power supply | 230 VAC 50/60 Hz |
| Power consumption | 400 W main tank, 200 W each additional tank |
| Control | Manual or automatic proportional, set point from the HMI |
| Interface | 7" touch HMI, Ethernet TCP/IP |
Applications
Applications
Wastewater treatment
Municipal and industrial wastewater treatment plants.
Sludge and effluents
Sludge treatment and dewatering; flotation units, decanters, filter presses.
Food
Food and beverage sector.
Chemicals
Chemical and pharmaceutical industry.
Installations
Installation examples
Systems are supplied pre-assembled and tested, in the form best suited to the plant room: on a panel, in a cabinet or on a skid (with cover, in a box or on a frame), also tailor-made. Some examples.
On a panel
Controller, pumps, probe holder and accessories mounted and wired on a wall panel.
In a cabinet
System panel and chemical tanks housed in a single cabinet.
Wall cabinet
Pipework, pumps and electrical panel in a wall cabinet with door.
Skid with cover
Skid with raised stainless steel frame and protective PMMA cover.
Skid in a box
Skid enclosed in a box with door, with the chemical tanks at the base.
Skid on a frame
Skid on a frame with doors, pre-assembled and ready for connection.
On the tank
Dosing pump mounted directly on the tank: the most compact solution.
In the plant room
Wall installation in the plant room, with the chemical tanks on the floor.
Pumps, controllers or components supplied by the customer can also be fitted, with custom dimensions, back panel and electrical panel. Dosing stations and skids →
Plant sizing
Tell us the required solution output and the type of polyelectrolyte used: we will propose the configuration and the pumps for withdrawal.
