High flow rates
Reliable standard version for transferring large volumes of chemicals.
Centrifugal pumps
Magnetic drive
Centrifugal pumps for the completely safe and reliable transfer of large quantities of highly corrosive liquids. With no shaft seals, the pump head is completely hermetic.
- Up to 35 m³/h
- No mechanical seal
- Wetted parts in PP or PVDF
- Low maintenance
35m³/hMaximum flow rate
24mMaximum head
2Flow rate ranges
PP · PVDFWetted parts
2 models
Flow rate ranges
Pump head: PP or PVDF

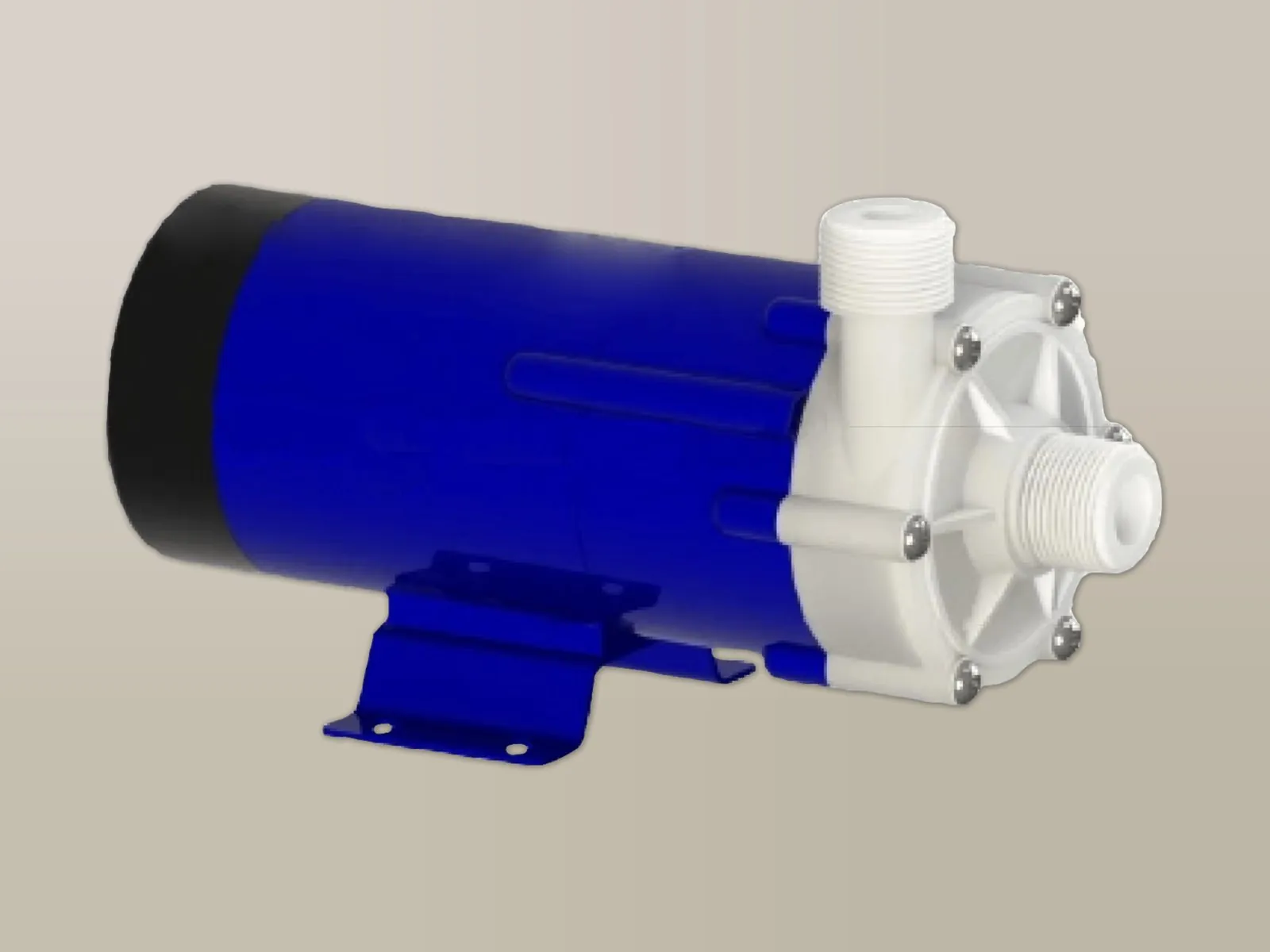

Low flow rates
Reliable standard version for transferring small volumes of chemicals.
Pump head: PP or PVDF
Operation
Operating principle
The motor shaft is not directly connected to the impeller: rotation is transmitted by two magnets, one on the motor shaft and the other integral with the impeller, never in contact with the liquid.
No seals
The impeller is not mechanically connected to the shaft: no shaft seals are required and the pump head is completely hermetic.
Compatible materials
Depending on the liquid pumped, the wetted parts are made of PP or PVDF, compatible with most liquids.
Low maintenance
With no seals and no contact between motor and liquid, the pumps offer high reliability and require little maintenance.
Installation

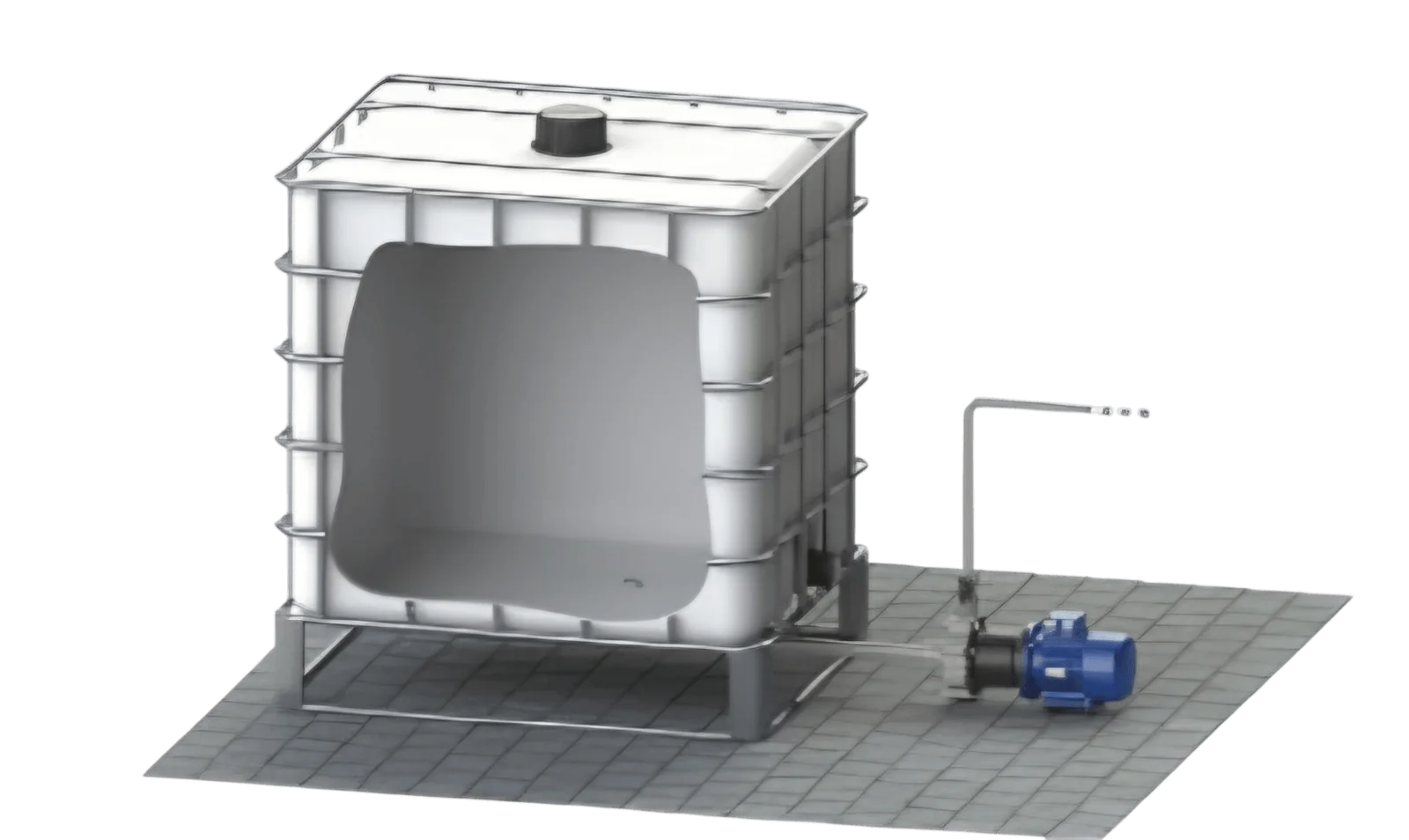

Flooded suction installation
The pump is installed at the base of the tank, allowing it to be emptied completely. This type of pump requires a flooded suction installation and a liquid free of suspended solids.
Technical data
Performance and configurations
High flow rates
For transferring large volumes of chemicals.
| Flow rate (m³/h) | Head (m) |
|---|---|
| 3.5 | 7.5 |
| 7 | 8.5 |
| 13 | 14 |
| 23.5 | 20 |
| 35 | 24 |
Low flow rates
For transferring small volumes of chemicals.
| Max flow rate (l/min) | Max head (m) |
|---|---|
| 10 | 1.5 |
| 16 | 8 |
| 24 | 3 |
| 32 | 4 |
| 45 | 5 |
Power supply options
- 230 VAC single-phase
- 400 VAC three-phase
Body
- PVDF
- PP
Technical advice
Tell us the liquid to be transferred and the characteristics of the system: we will recommend the most suitable pump and materials.
