In-line
In a probe holder mounted directly on the pipe.
Probe holders →
Measuring probes

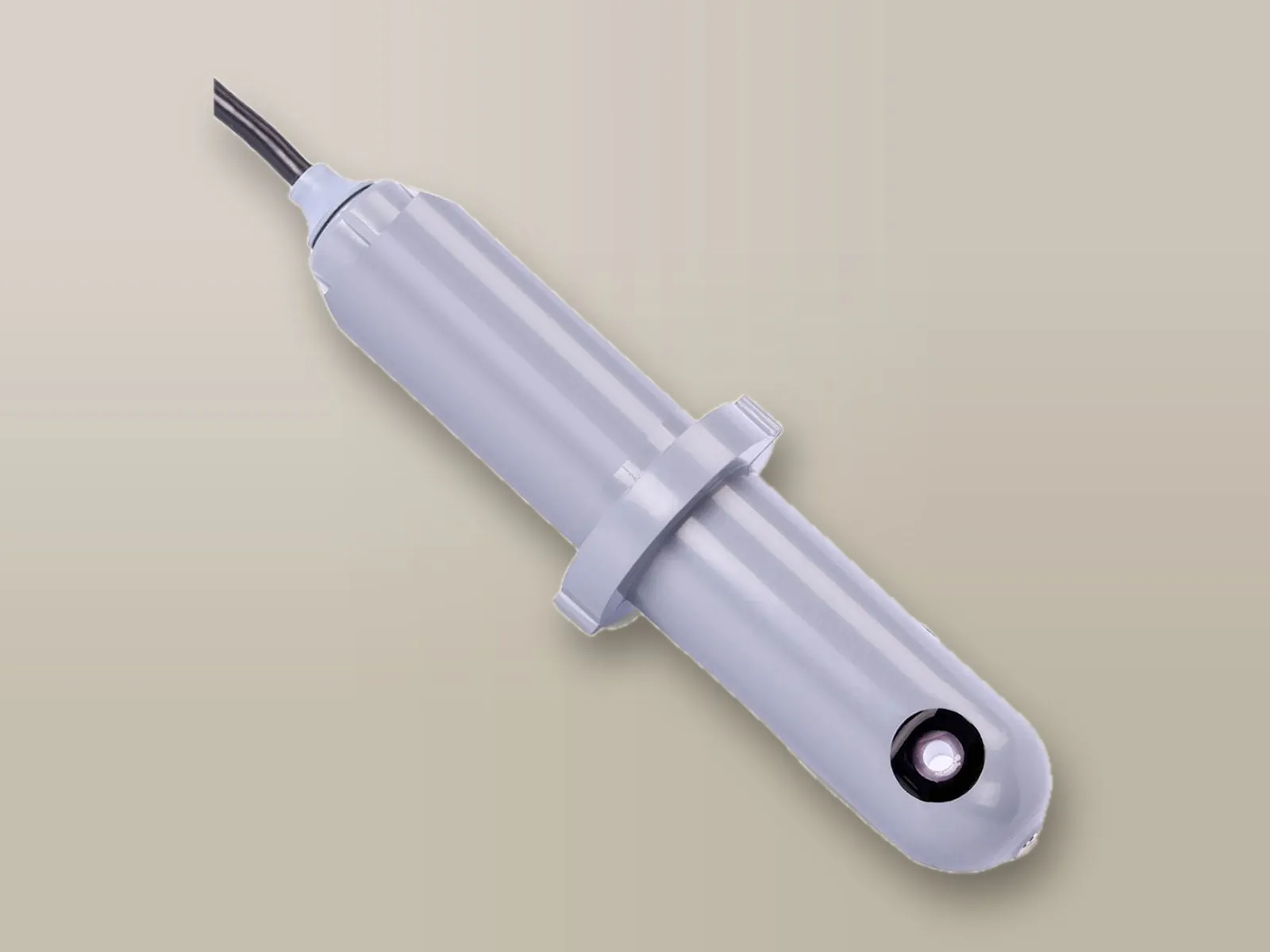

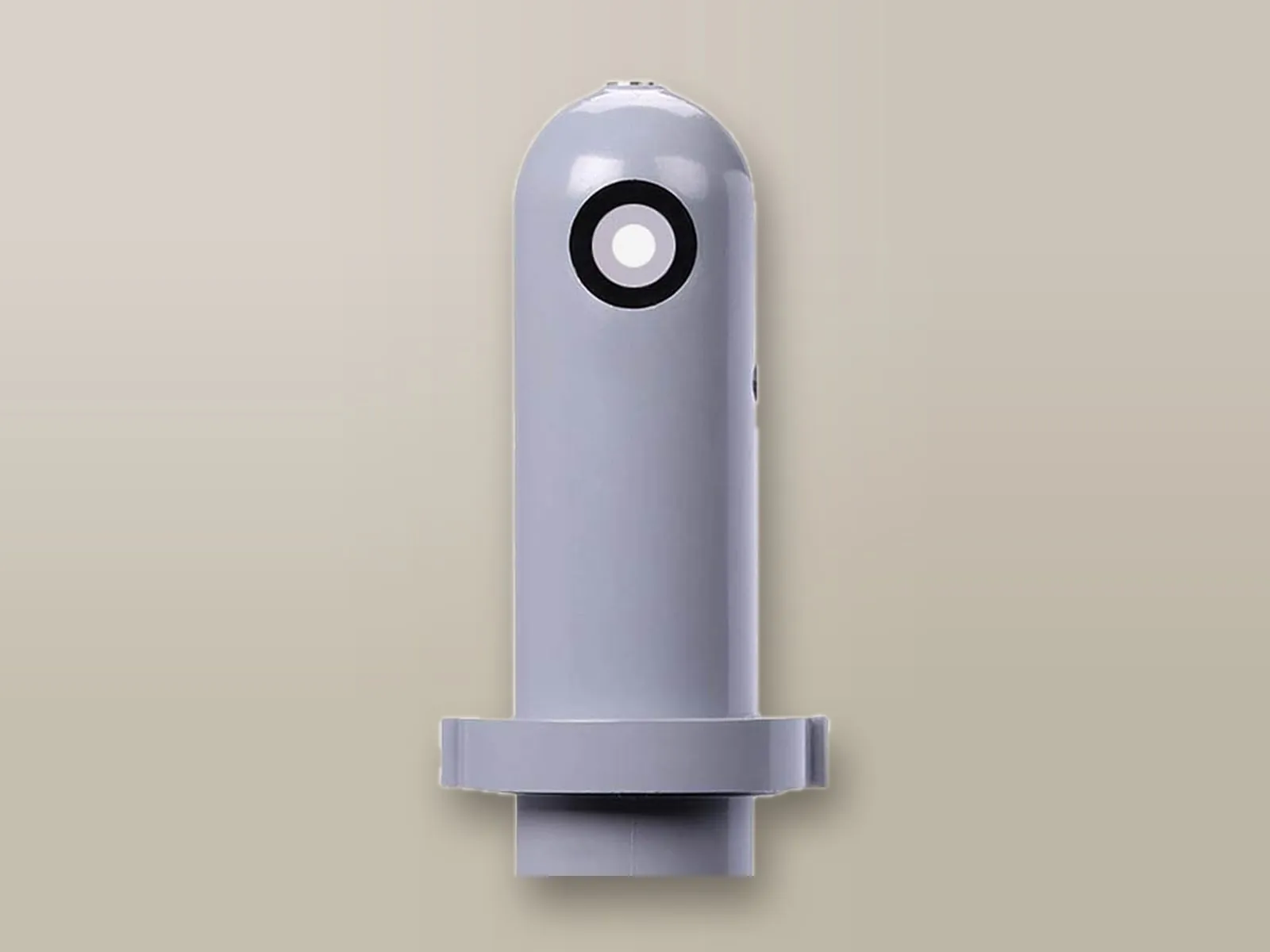

ETRC2 tracers
Fluorometer for industrial water systems that require continuous monitoring of tracers (fluorescent dyes): it combines reliability and high performance with minimal maintenance.
- Range 0 – 300 ppb
- Sensitivity 1 ppb
- Response in 5 seconds
- In-line installation with T-fitting
0 – 300ppbMeasuring range
1ppbSensitivity
5sResponse time
7barOperating pressure
Technical data
Data sheet
| ETRC2 | |
|---|---|
| Measuring range | 0 – 300 ppb of PTSA |
| Error | ± 1 ppb or 5% of reading |
| Sensitivity | 1 ppb |
| Linearity | 0.99 r² |
| Signal source | LED |
| Detection | Photodiode |
| Response time | 5 seconds |
| Sample pressure | 100 psi (approx. 7 bar) |
| Sample temperature | 4 – 40 °C |
| Ambient temperature | 4 – 49 °C |
| Output | 4-20 mA and RS-485 Modbus RTU |
| Power supply | 24 VDC (± 2 V), 65 mA |
| Body | PVC |
Installation
Installation
The probe must be in contact with the water to be analysed:
Technical advice
Tell us about your application: our technical staff will recommend the most suitable model, configuration and accessories.
