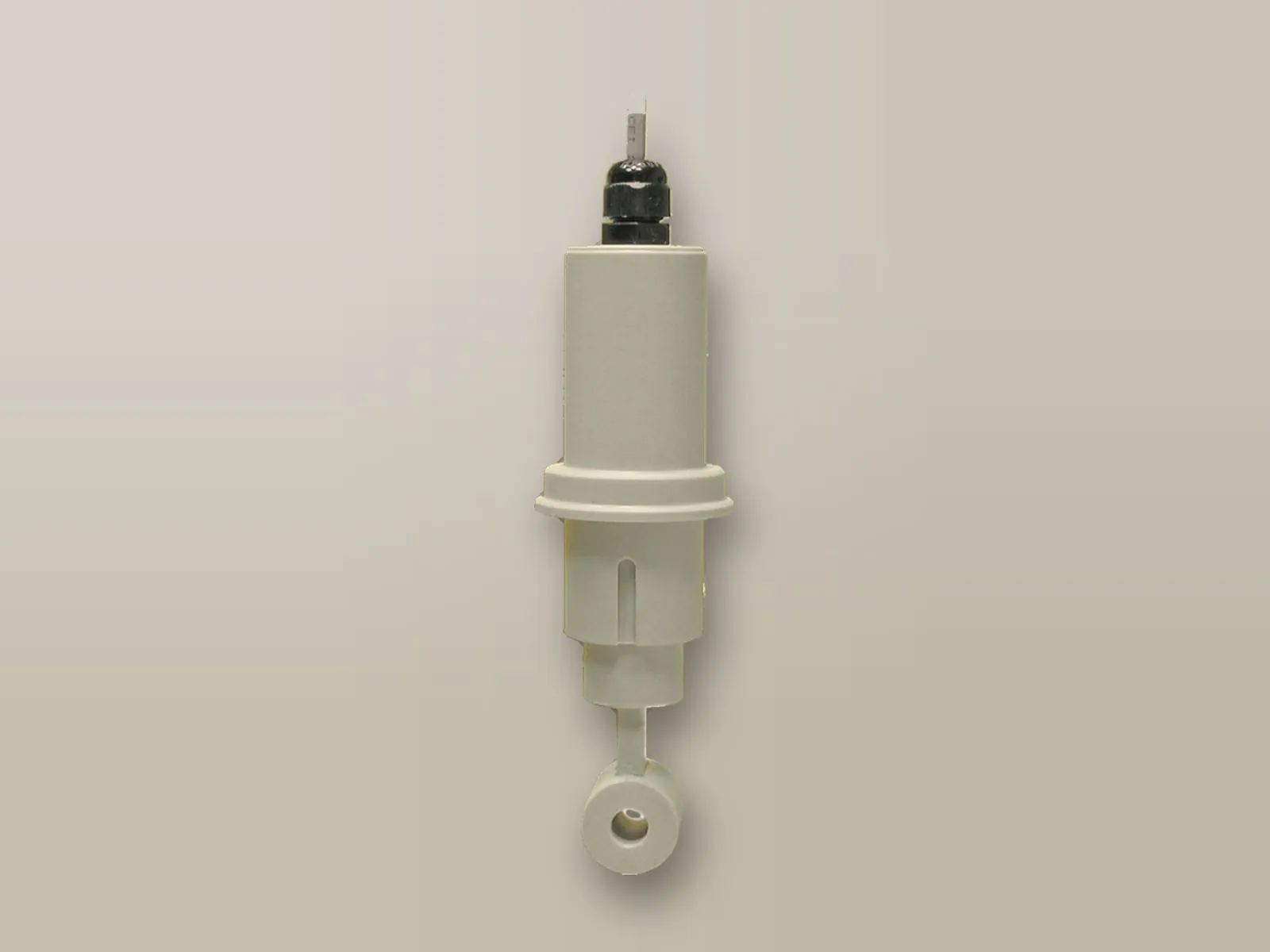

ECDINDPT
Measuring ranges 0.3 – 3, 0.3 – 30 and 0.3 – 300 mS.
Measuring probes
Inductive conductivity

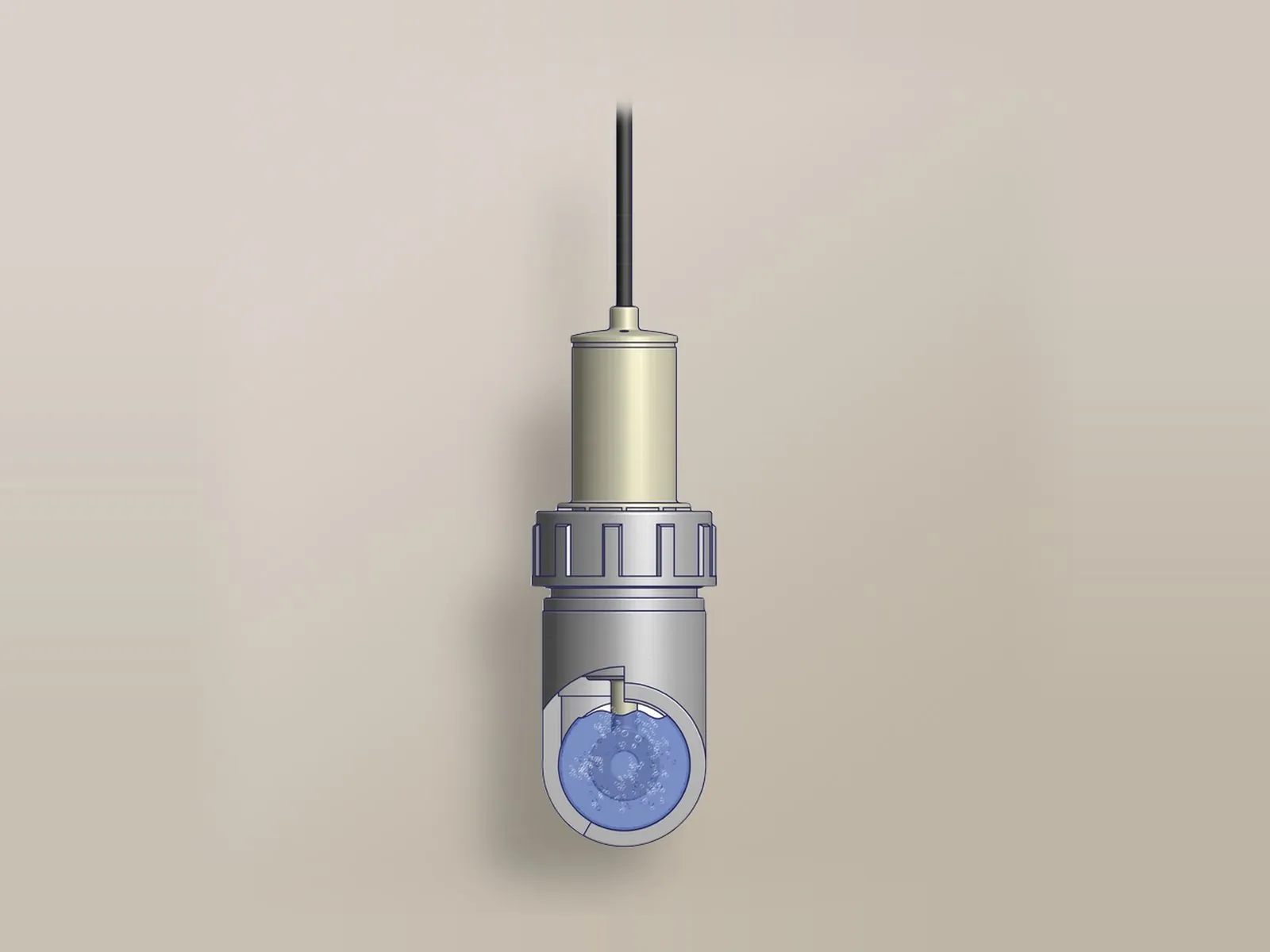

ECDINDPT probes measure conductivity according to the inductive principle: the reading is more stable as it is unaffected by polarisation and deposits. Suitable for all types of water, including hot water, high-pressure water and water containing suspended solids.
- Range up to 0.3 – 300 mS
- Unaffected by polarisation and deposits
- PEEK body
- In-line, in by-pass or immersion
300mSMaximum range
85°COperating temperature
8barOperating pressure
2Models
2 models
Available models

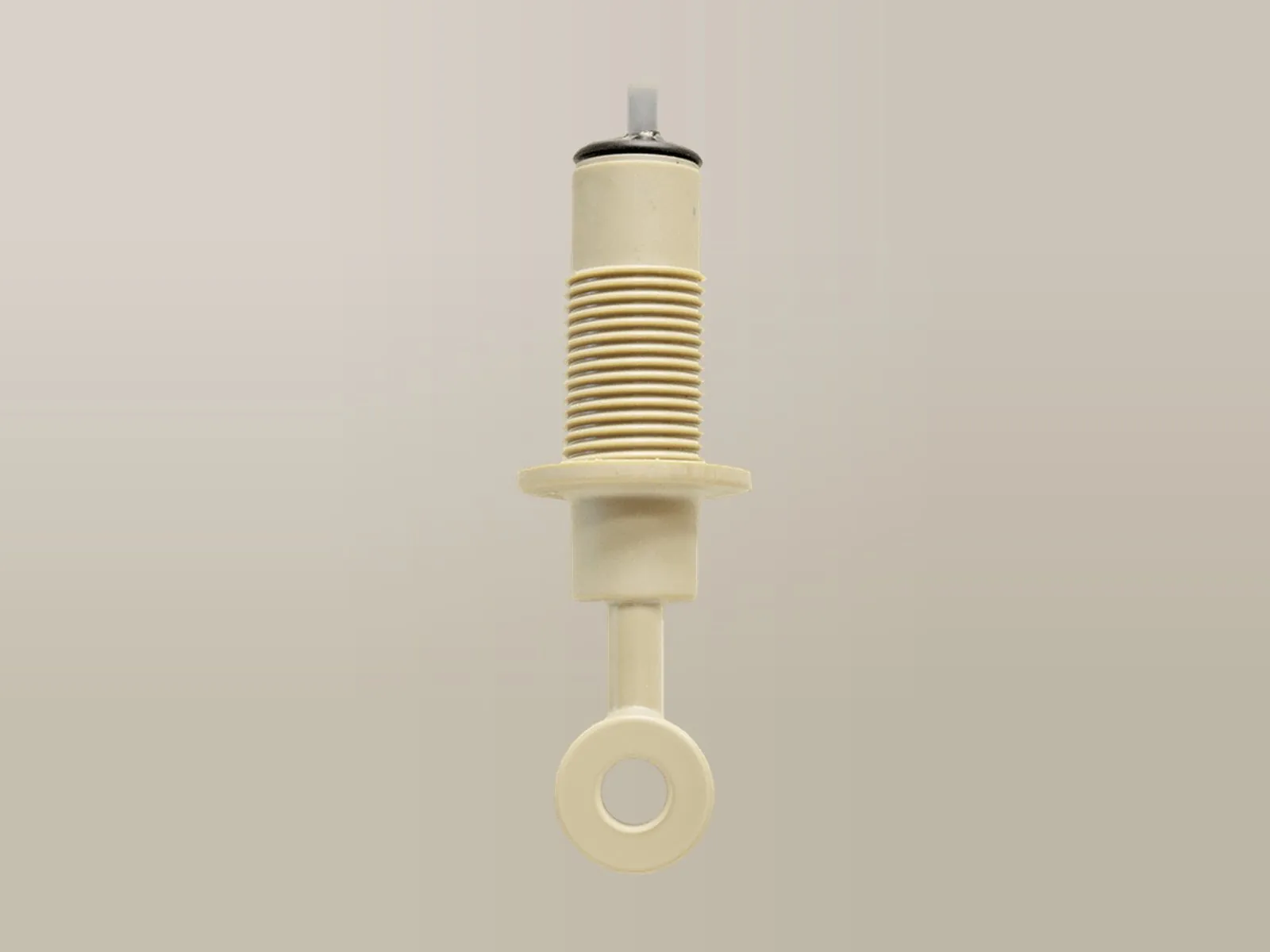

ECDSINDPT
Measuring range 0.3 – 10 mS.
Technical data
Data sheet
| ECDINDPT | ECDSINDPT | |
|---|---|---|
| Measuring range | 0.3 – 3 mS 0.3 – 30 mS 0.3 – 300 mS | 0.3 – 10 mS |
| Measuring system | Inductive | Inductive |
| Body | PEEK | PEEK |
| Mounting | In-line / by-pass / immersion | In-line / by-pass / immersion |
| Temperature compensation | PT100 | PT100 |
| Operating temperature | 1 – 85 °C (100 °C for temporary measurement) | 1 – 85 °C (100 °C for temporary measurement) |
| Operating pressure | 8 bar | 8 bar |
Installation
Installation
The probe is installed in one of the Giemme probe holders:
In by-pass
In a flow-through probe holder, installed in by-pass on the pipe.
Probe holders →In-line
In a probe holder mounted directly on the pipe.
Probe holders →Immersion
In an immersion probe holder, directly in the tank or basin.
Probe holders →Advice on selection
Tell us the characteristics of the water to be measured and of the system: we will recommend the most suitable probe, probe holder and controller.
